Аксессуары для корпусов
C2312117
Контргайка M12 х 1,5
Для крепления кабельного ввода в отверстии корпуса.
Комплект поставки1 контргайка
Сгенерировать вашу спецификацию в формате PDF для C2312117
Выберите те пункты, которые вы хотите включить в PDF.
C2304967
Pressure equalisation elements with a high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can lead to a build-up of negative pressure inside sealed enclosures. As a result, water and dirt may be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable lock nuts with M12 threads from the OKW portfolio are available for installation inside the enclosures.
Theoretical air flow rate RQ: 10 l/h - 0.07 bar
Water ingress point: > 0.83 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PES membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.
Комплект поставки 1 клапан компенсации давления c герметизирующая шайба
C2304967
Клапан компенсации давления, M12х1,5светло-серый RAL 7035
,
C2304969
Pressure equalisation elements with a high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can lead to a build-up of negative pressure inside sealed enclosures. As a result, water and dirt may be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable lock nuts with M12 threads from the OKW portfolio are available for installation inside the enclosures.
Theoretical air flow rate RQ: 10 l/h - 0.07 bar
Water ingress point: > 0.83 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PES membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.
Комплект поставки 1 клапан компенсации давления c герметизирующая шайба
C2304969
Клапан компенсации давления, M12х1,5черный RAL 9005
,
C2305967
Pressure equalisation elements with a particularly high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can cause negative pressure to build up inside sealed enclosures. Water and dirt can then be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable M12 lock nuts from the OKW portfolio are available for installation inside the enclosures.
Theoretical air flow rate RQ: 24 l/h - 0.07 bar
Water ingress point: > 0.2 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PTFE membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.
Комплект поставки 1 клапан компенсации давления c герметизирующая шайба
C2305967
Клапан компенсации давления, M12х1,5 – High-Airflowсветло-серый RAL 7035
,
C2305969
Pressure equalisation elements with a particularly high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can cause negative pressure to build up inside sealed enclosures. Water and dirt can then be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable M12 lock nuts from the OKW portfolio are available for installation inside the enclosures.
Theoretical air flow rate RQ: 24 l/h - 0.07 bar
Water ingress point: > 0.2 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PTFE membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.
Комплект поставки 1 клапан компенсации давления c герметизирующая шайба
C2305969

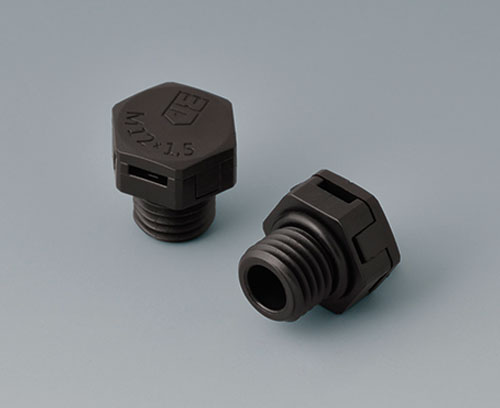

Клапан компенсации давления, M12х1,5 – High-Airflowчерный RAL 9005
,
C2312418
Комплект поставки 1 кабельный ввод
C2312418
Кабельный ввод M12 х 1,5серебристо-серый RAL 7001
C2312419
Комплект поставки 1 кабельный ввод
C2312419
Кабельный ввод M12 х 1,5черный RAL 9005
C2312518
Комплект поставки 1 кабельный ввод
C2312518
Кабельный ввод M12 х 1,5, с защитой от изгибасеребристо-серый RAL 7001
(изделия OKW)
