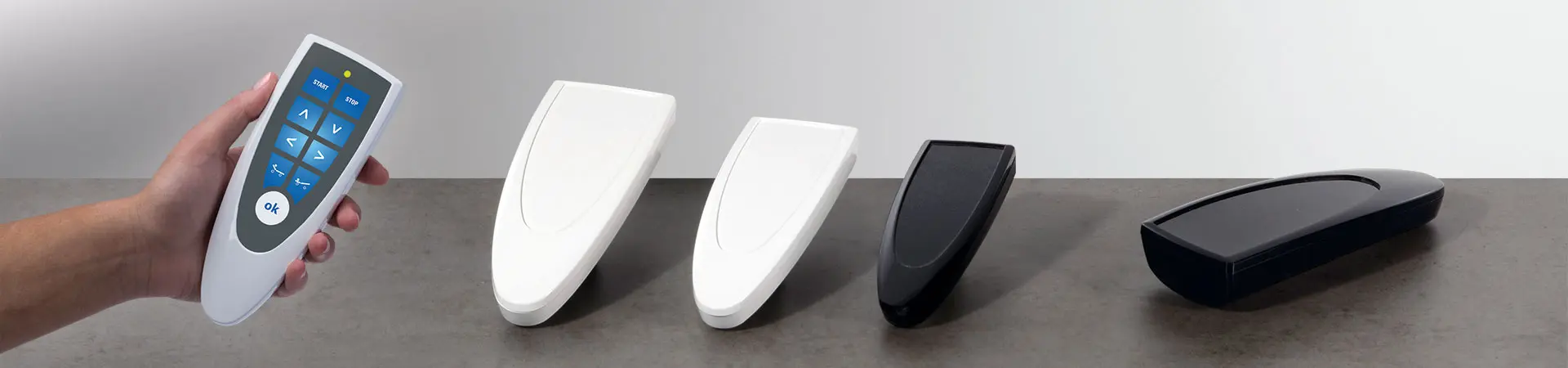

Style-Case

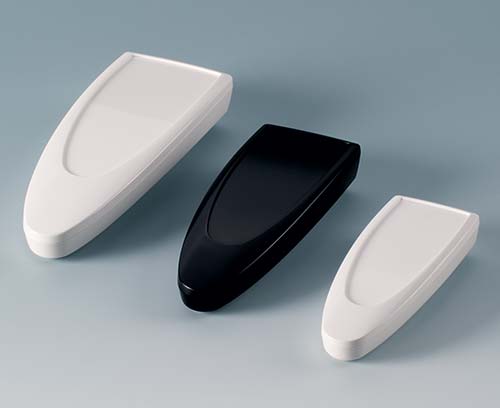

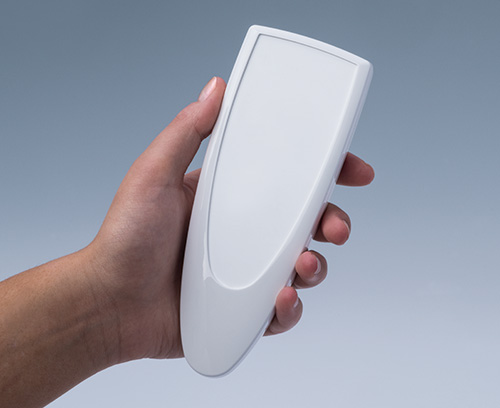

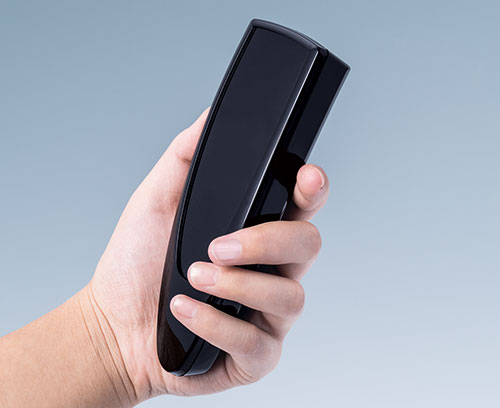

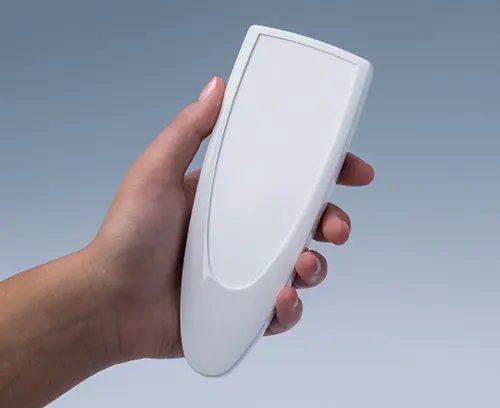

Estetyczne, wysoce polerowane i ergonomiczne, przenośne obudowy
OKW ma zaszczyt zaprezentować obudowę STYLE-CASE z powierzchnią o wysokim połysku. Zapewnia doskonały, nowoczesny, wygląd dla przenośnych jednostek kontrolnych. Te eleganckie, przyciągające wzrok obudowy z tworzywa sztucznego swobodnie mieszczą się w dłoni, zapewniając łatwość i niezawodność obsługi. Wysoce polerowana powierzchnia doskonale leży w dłoni zapewniając przyjemne wrażenia z użytkowania.

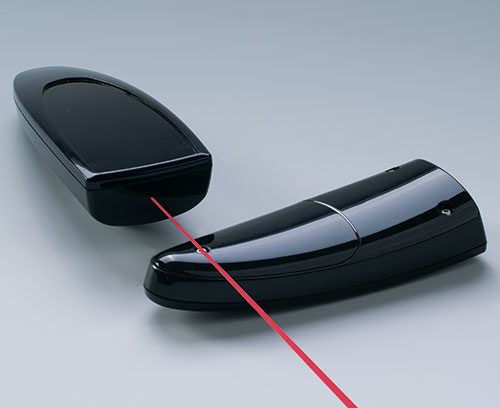

- wysokiej jakości tworzywo sztuczne o wysokim stopniu ochrony przed promieniowaniem UV lub z materiałów PMMA przepuszczającego promienie infraczerwone (pleksi)
- powierzchnia jest łatwa w czyszczeniu
- solidna konstrukcja, stopień ochrony do IP 65, zestaw uszczelniający dostępny w ramach akcesoriów
- wyposażone w śruby ze stali nierdzewnej

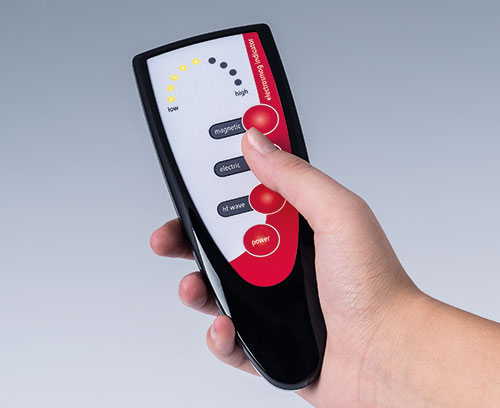

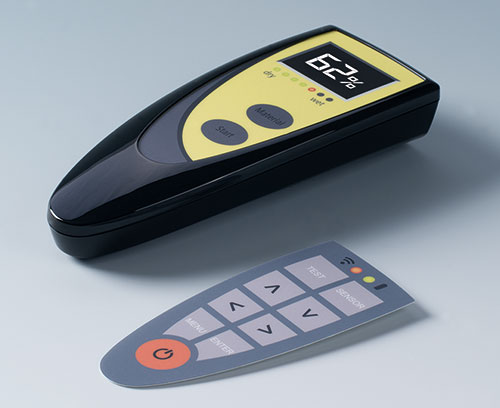

- wnękowy panel obsługi pozwalający zapewnić ochronę klawiaturze membranowej/oznaczeniu produktu

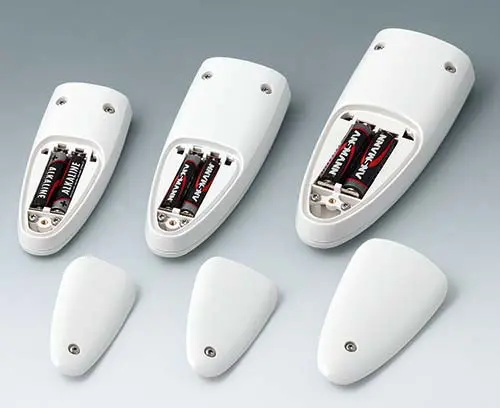

- wbudowana komora baterii 2 x 1.5 V AAA (S, M) i 2 x 1.5 V AA (L), zestaw klipsów bateryjnych dostarczanych jako akcesoria
- filary przyłączeniowe do PCB i elementów, samozaciskające się śruby do montowania płyt są dostępne jako akcesoria
Obszary zastosowań

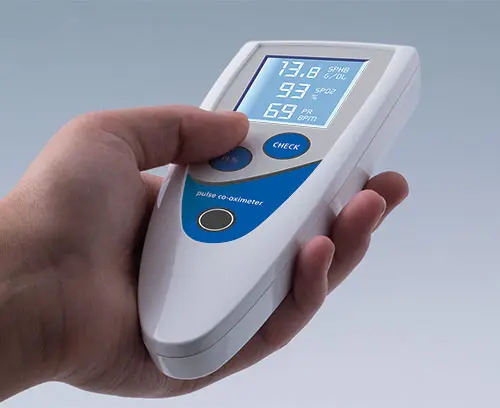

Idealny do zorientowanych na design ręcznych jednostek kontrolnych. Wiele różnych typów systemów kontroli zdalnej. Wykonane specjalnie pod kątem zastosowań medycznych i społecznych; produkt sprawdzi się również w gospodarstwie domowym i przemyśle.

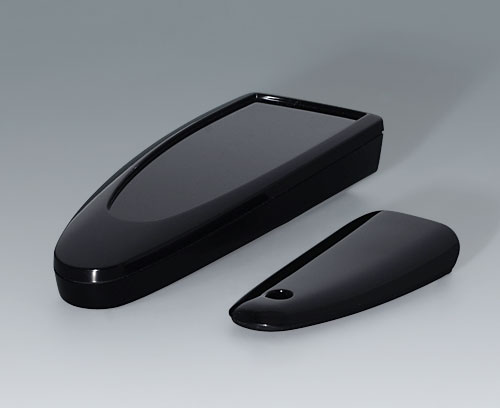

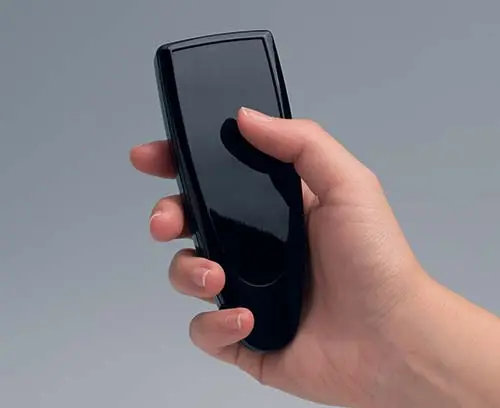

B2802016
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802016
STYLE-CASE Sprodukt został dodany do twojej listy
black RAL 9005
123x48x24mm

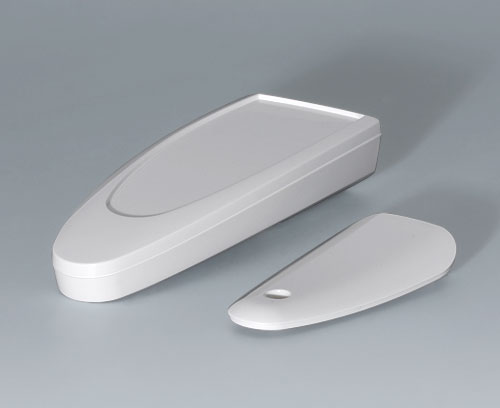

B2802017
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802017
STYLE-CASE Sprodukt został dodany do twojej listy
traffic white RAL 9016
123x48x24mm
B2803016
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803016
STYLE-CASE Mprodukt został dodany do twojej listy
black RAL 9005
147x56x27mm
,

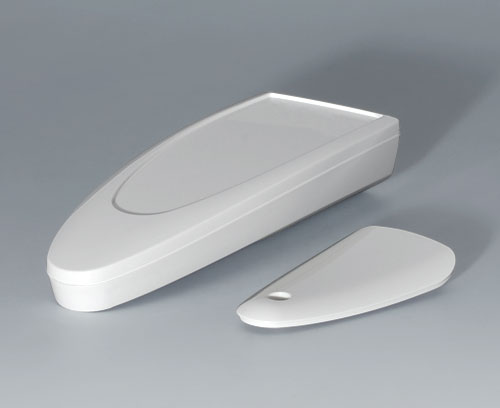

B2803017
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803017
STYLE-CASE Mprodukt został dodany do twojej listy
traffic white RAL 9016
147x56x27mm
,

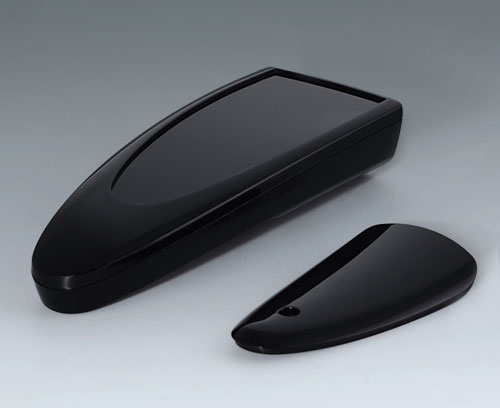

B2804016
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804016
STYLE-CASE Lprodukt został dodany do twojej listy
black RAL 9005
166x64x31mm
,

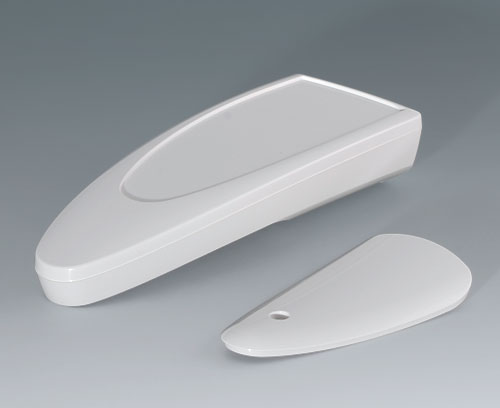

B2804017
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804017
STYLE-CASE Lprodukt został dodany do twojej listy
traffic white RAL 9016
166x64x31mm
,
B2804027
STYLE-CASE L
Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.
Supply Top and bottom part, assembly kit
B2804027
STYLE-CASE Lprodukt został dodany do twojej listy
traffic white RAL 9016
166x64x31mm
,
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)produkt został dodany do twojej listy
A9190020
Set of battery clips
For contacting 2 AAA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsprodukt został dodany do twojej listy
nickel-plated
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefprodukt został dodany do twojej listy
volcano
B2902031
Adhesive foil S
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2902031
Adhesive foil Sprodukt został dodany do twojej listy

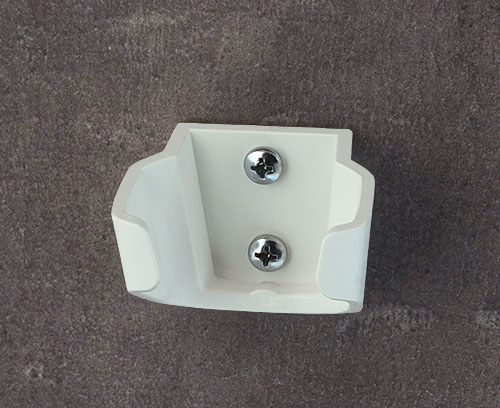

B2902037

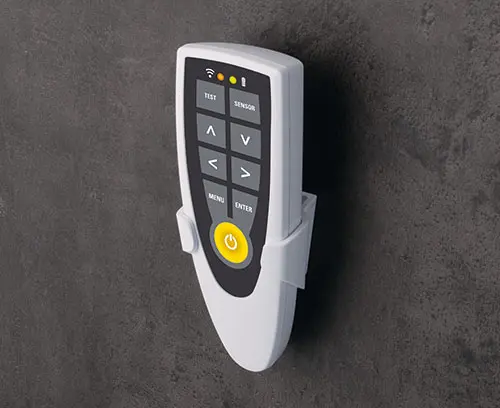

Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902037
Holder Sprodukt został dodany do twojej listy
traffic white RAL 9016

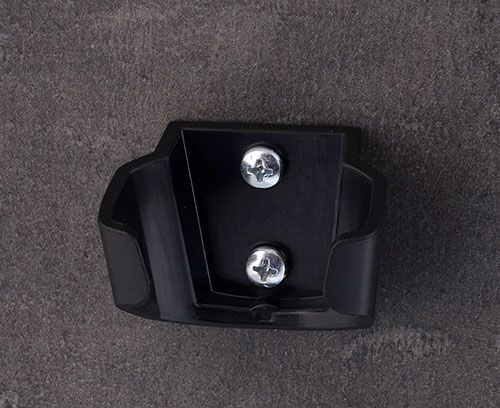

B2902039
Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902039
Holder Sprodukt został dodany do twojej listy
black RAL 9005

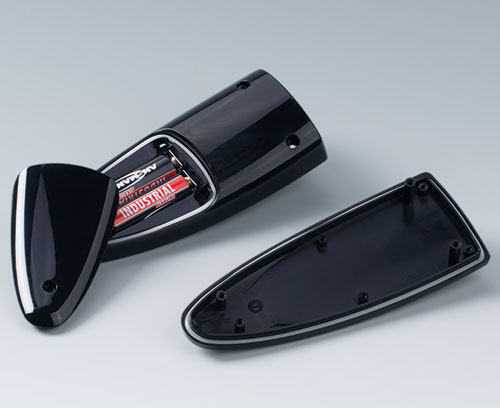

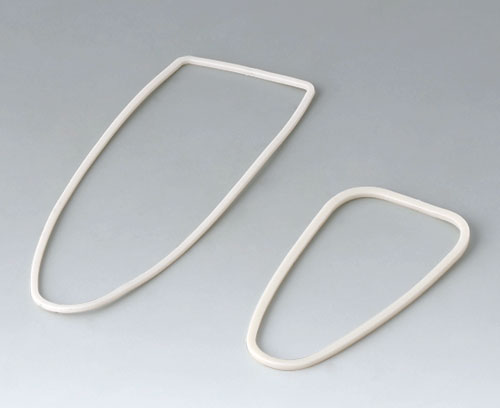

B2902111
Sealing kit S
Application: for increasing the protection class, of STYLE-CASE S.
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit Sprodukt został dodany do twojej listy
B2903031
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2903031
Adhesive foil Mprodukt został dodany do twojej listy

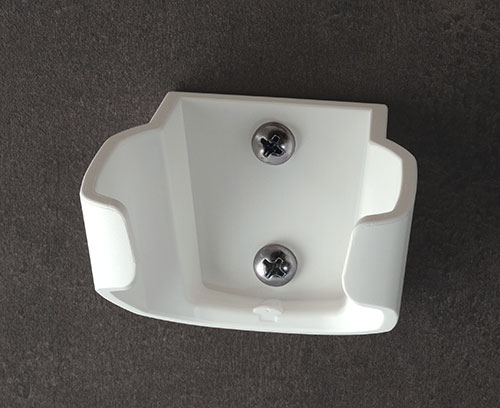

B2903037
Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903037
Holder Mprodukt został dodany do twojej listy
traffic white RAL 9016
B2903039
Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903039
Holder Mprodukt został dodany do twojej listy
black RAL 9005
B2903111
Sealing kit M
Application: for increasing the protection class, of STYLE-CASE M.
Supply 2 sealings kit (enclosure, battery compartment)
B2903111
Sealing kit Mprodukt został dodany do twojej listy
B2904011
Sealing L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 1 sealing
B2904011
Sealing Lprodukt został dodany do twojej listy
B2904031

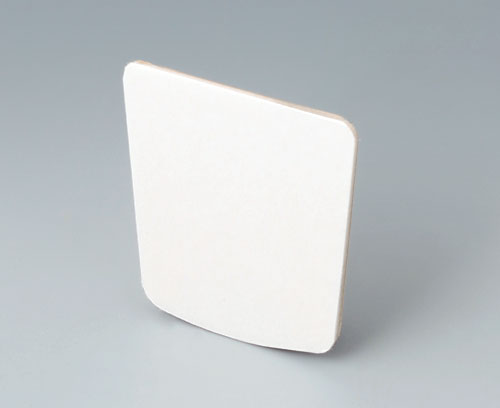

Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2904031
Adhesive foil Lprodukt został dodany do twojej listy
B2904037
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904037
Holder Lprodukt został dodany do twojej listy
traffic white RAL 9016

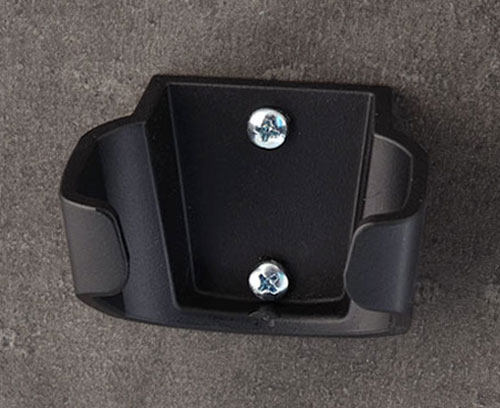

B2904039
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904039
Holder Lprodukt został dodany do twojej listy
black RAL 9005
B2904111

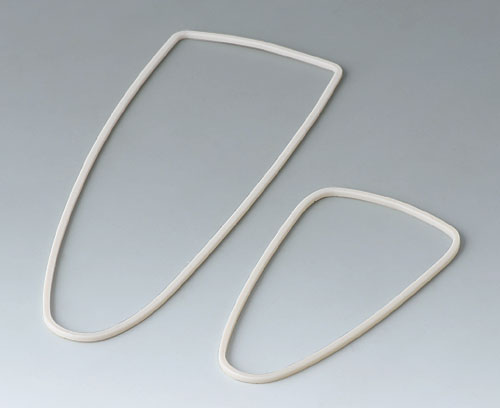

Sealing kit L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 2 sealings kit (enclosure, battery compartment)
B2904111
Sealing kit Lprodukt został dodany do twojej listy
B2904210
Set of battery clips
For contacting 2 AA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
B2904210
Set of battery clipsprodukt został dodany do twojej listy
nickel-plated

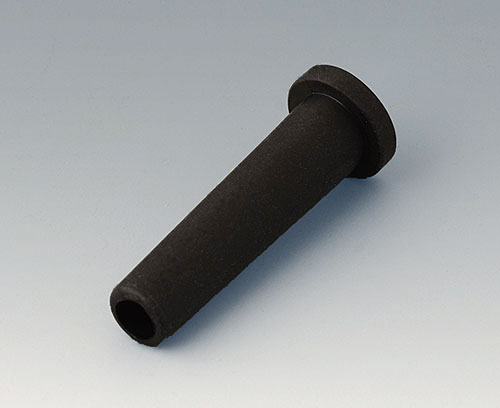

C2353849
Flexible cable grommet Ø 5,3
Flexible cable grommet to protect the cable connection, for universal use.
Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.
Supply 1 flexible cable grommet
C2353849
Flexible cable grommet Ø 5,3produkt został dodany do twojej listy

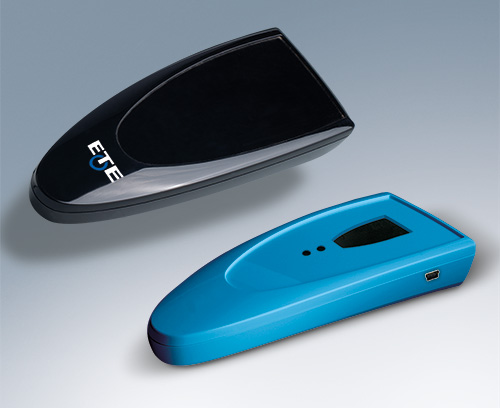

Opcje dostosowywania dla Style-Case
Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
