Akcesoria do obudów
B2804027

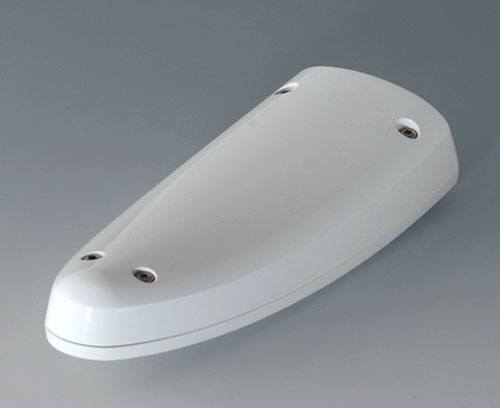

STYLE-CASE L
Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.
Top and bottom part, assembly kit
Generate Your PDF Datasheet for B2804027
Please select the product details you would like to include in the PDF.
Accessory "protection"
A9199005
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefvolcano
B2904011
Supply 1 sealing
B2904011

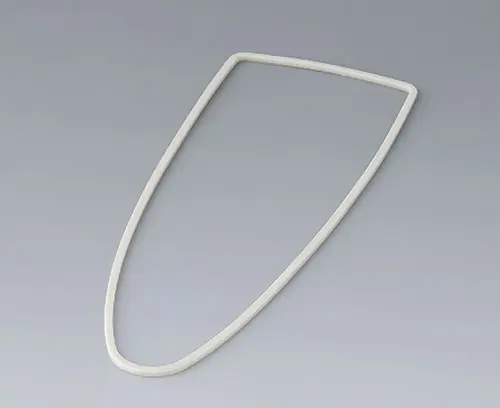

Sealing L
C2353849
Flexible cable grommet to protect the cable connection, for universal use.
Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.
Supply 1 flexible cable grommet
C2353849
Flexible cable grommet Ø 5,3Accessory "wall/holder"
B2904031
Supply 1 piece
B2904031
Adhesive foil L
B2904037
Supply 1 holder
B2904037
Holder Ltraffic white RAL 9016
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Necessary accessories: sealing kit,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 278 KB
- AutoCAD DWG-File 897 KB
- AutoCAD DXF-File 3 102 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 470 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025736.x_t 2 579 KB
- 00025736.STEP 6 825 KB
- 00025736.SAT 8 343 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
