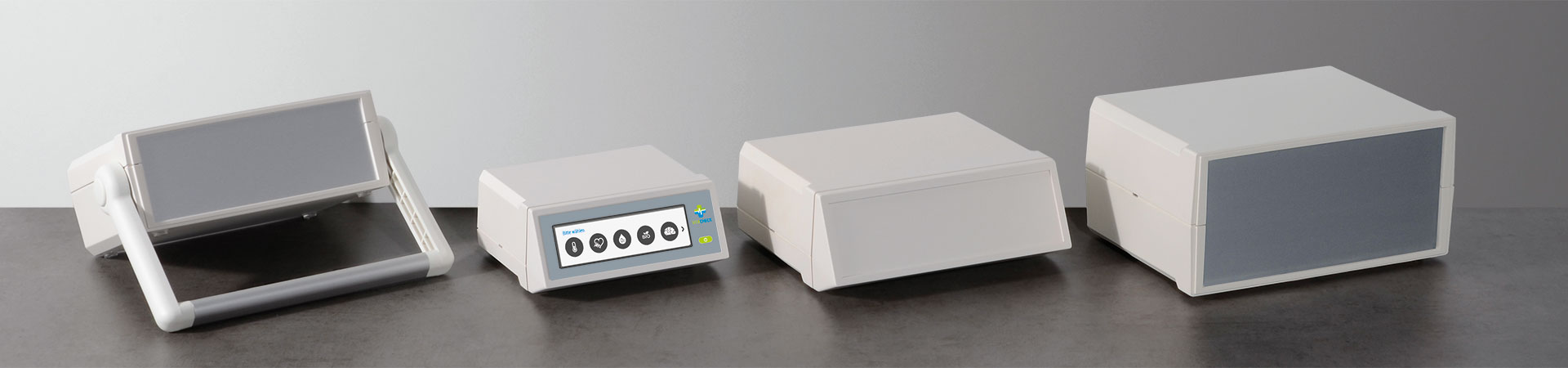

MOTEC

Motec

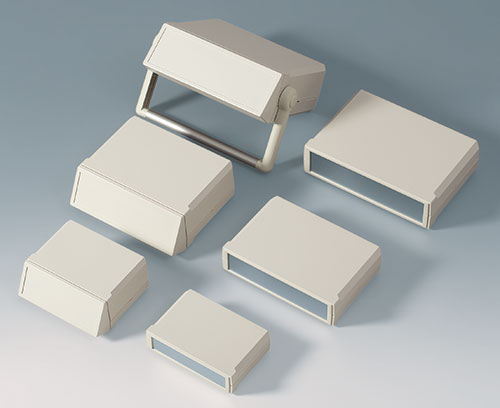

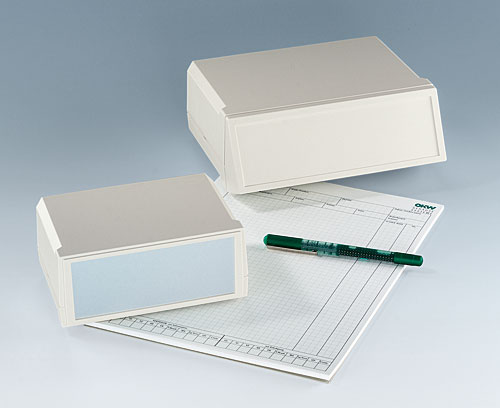

Nowoczesne stacjonarne obudowy z szerokim panelem pod interfejs

Dzięki sporym wymiary, stylowemu wzornictwu i ergonomii, nasza seria MOTEC jest zaprojektowane tak, aby odróżnić się od bardziej konwencjonalnych systemów.

  • stylowa gama obudów
  • trzy rozmiary
  • różne wysokości dla indywidualnych potrzeb
  • wysokiej jakości tworzywo ABS (UL 94 HB)

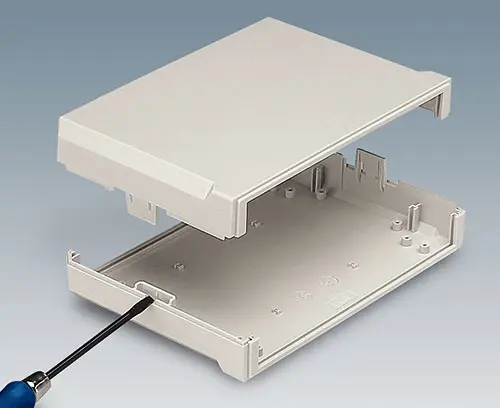

  • solidny montaż na zatrzaski, aby zminimalizować prace montażowe
  • dostęp tylko przy pomocy płaskiego śrubokręta, dla bezpieczeństwa

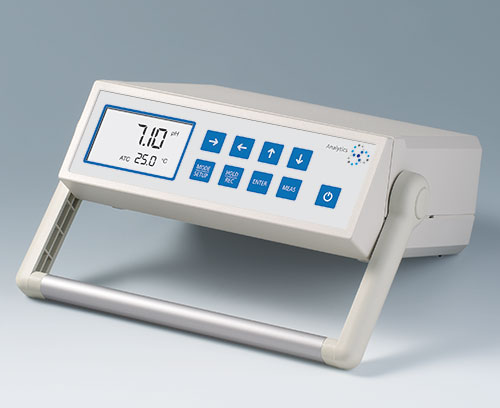

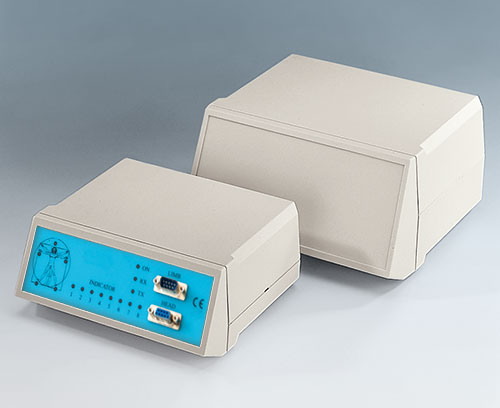

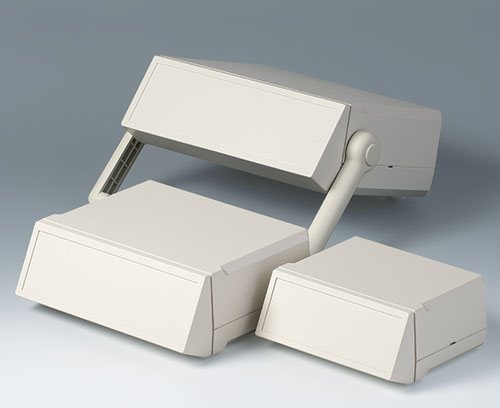

  • ergonomiczny, pochylany panel sterowania z wgłębieniem na klawiaturę membranową

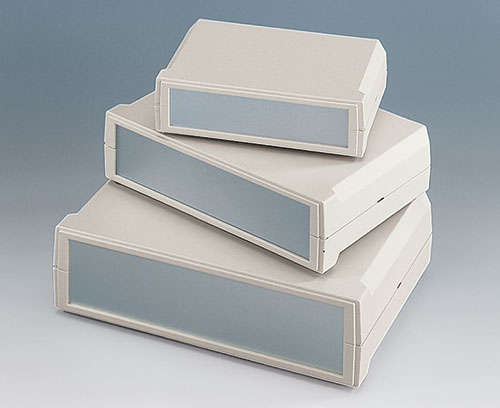

  • panele aluminiowe zamawiane oddzielnie

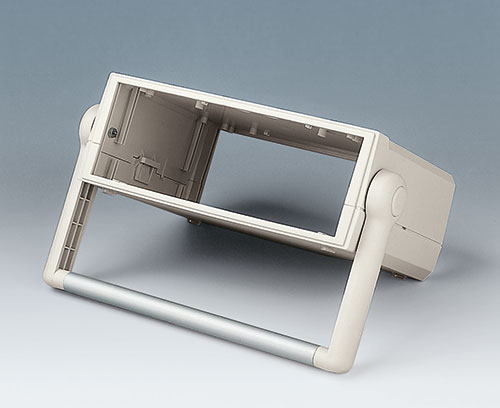

  • wersje z ergonomiczną rączką do wygodnego
  • cztery samoprzylepne antypoślizgowe nóżki w zestawie
  • klasa szczelności IP 40

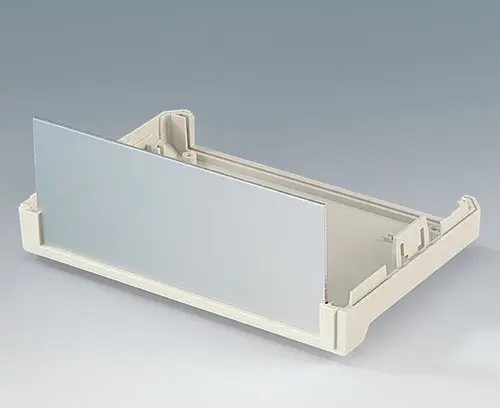

  • wewnętrzne rowki do wstawiania ścianek i montażu PCB
  • wewnętrzne słupki pod PCB

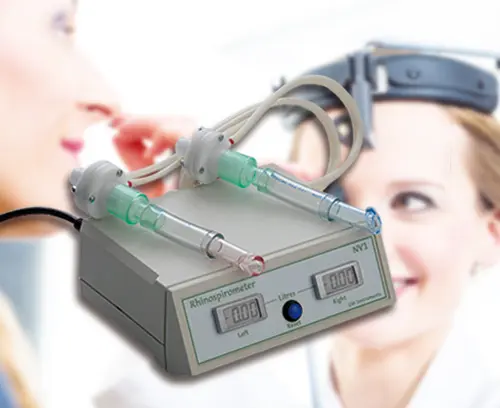

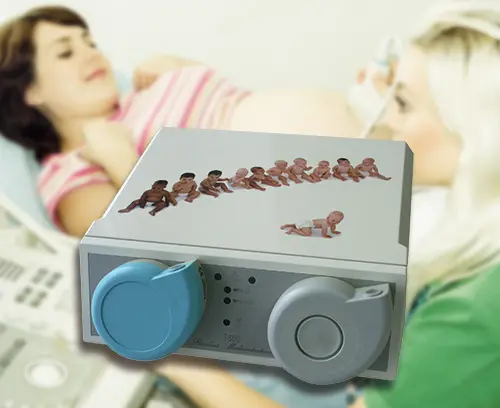

  • Przykłady aplikacji

Obszary zastosowań

  • Pomiary i sterowanie
  • Sterowanie ze sprzężeniem zwrotnym
  • Urządzenia peryferyjne i interfejsy
  • Rozdzielnice, modemy, sprzęt laboratoryjny
  • Urządzenia medyczne i relaksacyjne
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania

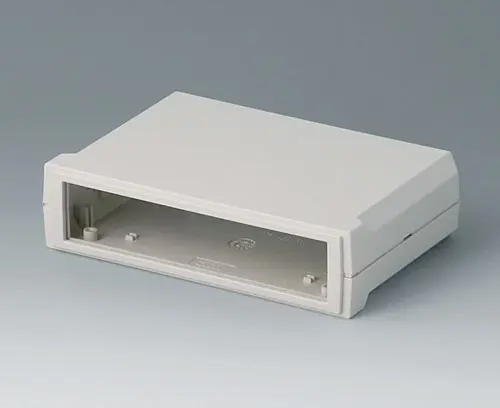

B3015117 MOTEC S, flat/flat

B3015117

MOTEC S, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3015117

MOTEC S, flat/flat
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
155x105x40mm
IP 40

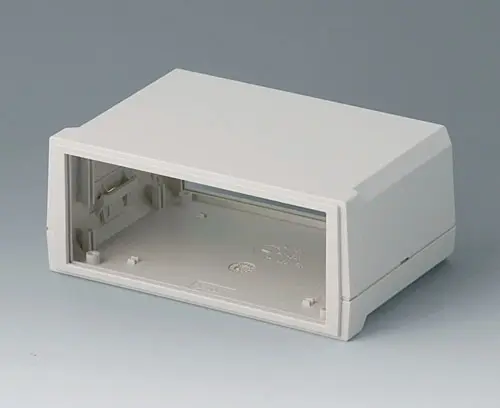

B3015127 MOTEC S, flat/high

B3015127

MOTEC S, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3015127

MOTEC S, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
155x105x65mm
IP 40

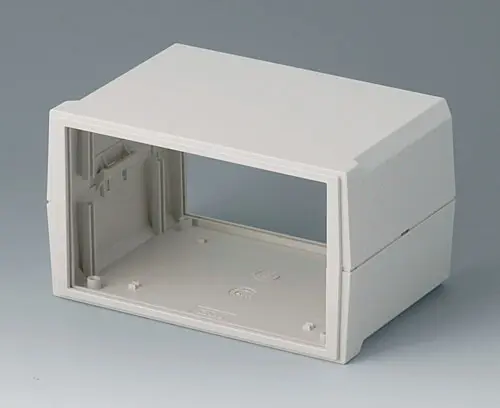

B3015137 MOTEC S, high/high

B3015137

MOTEC S, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3015137

MOTEC S, high/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
155x105x90mm
IP 40

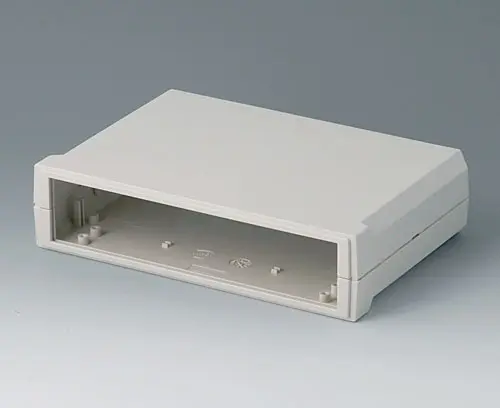

B3020117 MOTEC M, flat/flat

B3020117

MOTEC M, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3020117

MOTEC M, flat/flat
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
205x140x50mm
IP 40
B3020127 MOTEC M, flat/high

B3020127

MOTEC M, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3020127

MOTEC M, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
205x140x75mm
IP 40

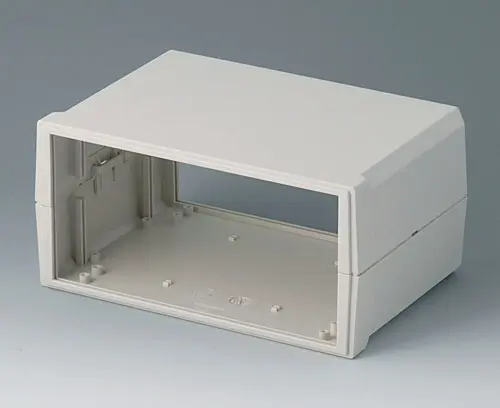

B3020137 MOTEC M, high/high

B3020137

MOTEC M, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3020137

MOTEC M, high/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
205x140x100mm
IP 40

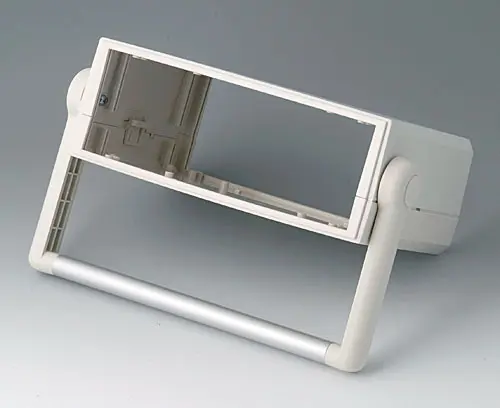

B3020147 MOTEC M, with handle bar

B3020147

MOTEC M, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

Zamknij

B3020147

MOTEC M, with handle bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
205x140x75mm
IP 40

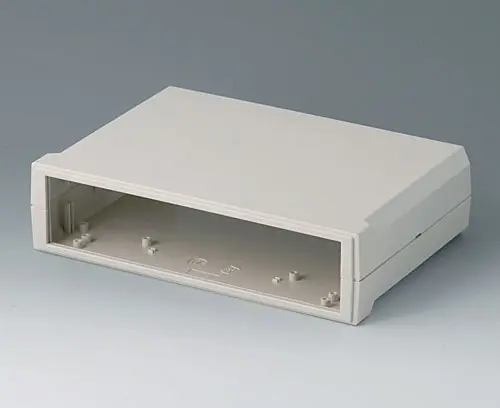

B3023117 MOTEC-L, flat/flat

B3023117

MOTEC-L, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3023117

MOTEC-L, flat/flat
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
235x165x60mm
IP 40
B3023127 MOTEC L, flat/high

B3023127

MOTEC L, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3023127

MOTEC L, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
235x165x85mm
IP 40
B3023137 MOTEC L, high/high

B3023137

MOTEC L, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3023137

MOTEC L, high/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
235x165x110mm
IP 40

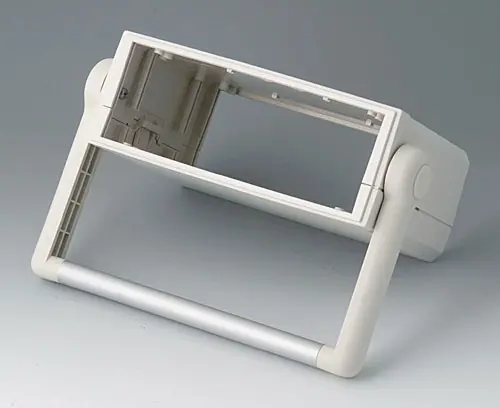

B3023147 MOTEC L, with handle bar

B3023147

MOTEC L, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

Zamknij

B3023147

MOTEC L, with handle bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
235x165x85mm
IP 40
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Zamknij

A9199008

Set of screws
produkt został dodany do twojej listy

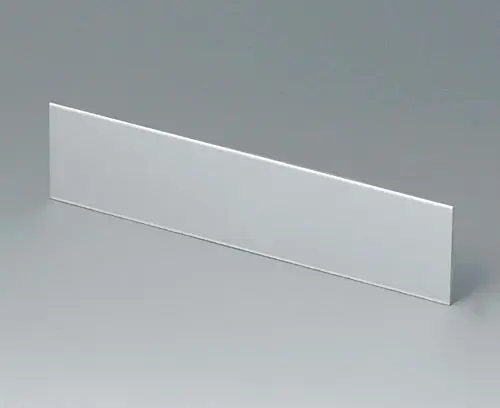

B3115100 Front / rear panel S

B3115100

Front / rear panel S Suitable for MOTEC S B3015117 with flat base and top part.

Supply 1 front panel

Zamknij

B3115100

Front / rear panel S
produkt został dodany do twojej listy
Aluminium
matt anodised
136x32x1,5mm

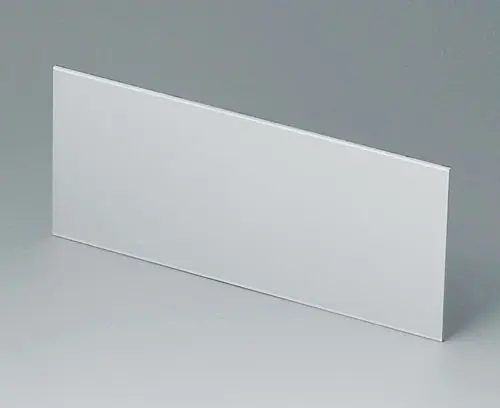

B3115110 Front / rear panel S

B3115110

Front / rear panel S Suitable for MOTEC S B3015127 with flat base and high top part.

Supply 1 front panel

Zamknij

B3115110

Front / rear panel S
produkt został dodany do twojej listy
Aluminium
matt anodised
136x57x1,5mm

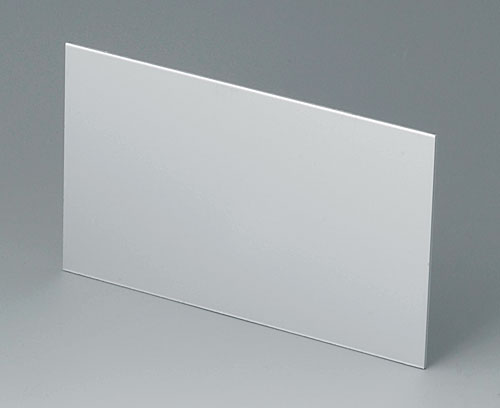

B3115120 Front / rear panel S

B3115120

Front / rear panel S Suitable for MOTEC S B3015137 with high base and top part.

Supply 1 front panel

Zamknij

B3115120

Front / rear panel S
produkt został dodany do twojej listy
Aluminium
matt anodised
136x82x1,5mm

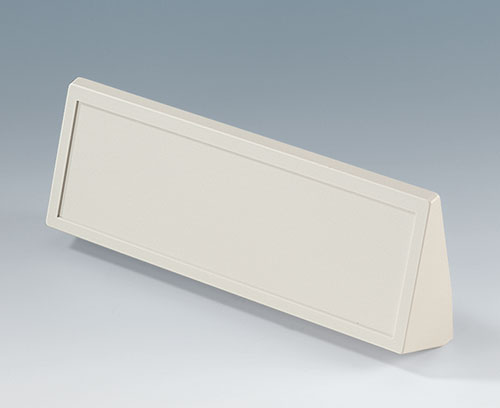

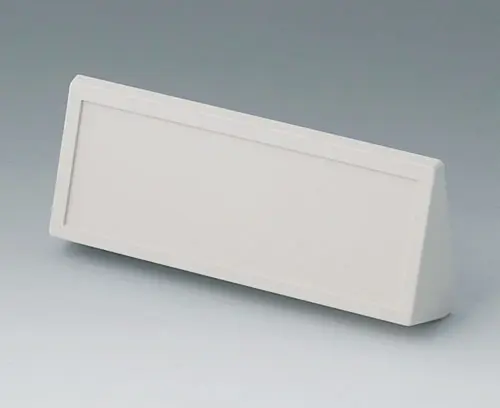

B3115167 Sloping control panel S, flat/high

B3115167

Sloping control panel S, flat/high Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Zamknij

B3115167

Sloping control panel S, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

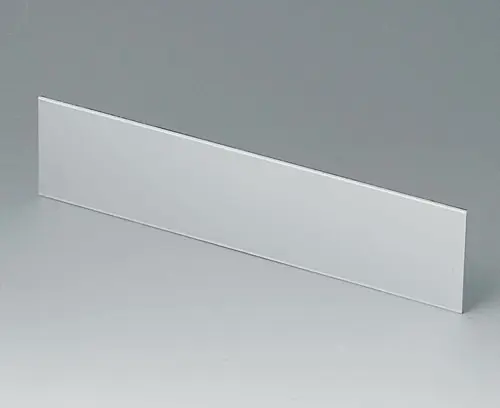

B3120100 Front / rear panel M

B3120100

Front / rear panel M Suitable for MOTEC M B3020117 with flat base and top part.

Supply 1 front panel

Zamknij

B3120100

Front / rear panel M
produkt został dodany do twojej listy
Aluminium
matt anodised
185x42x1,5mm

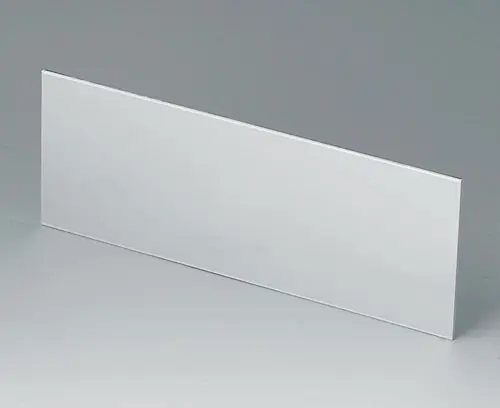

B3120110 Front / rear panel M

B3120110

Front / rear panel M Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part.

Supply 1 front panel

Zamknij

B3120110

Front / rear panel M
produkt został dodany do twojej listy
Aluminium
matt anodised
185x67x1,5mm
B3120120 Front / rear panel M

B3120120

Front / rear panel M Suitable for MOTEC M B3020137 with high base and top part.

Supply 1 front panel

Zamknij

B3120120

Front / rear panel M
produkt został dodany do twojej listy
Aluminium
matt anodised
185x92x1,5mm

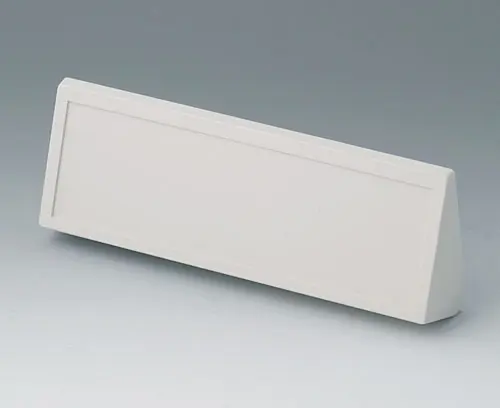

B3120167 Sloping control panel M, flat/high

B3120167

Sloping control panel M, flat/high Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Zamknij

B3120167

Sloping control panel M, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
B3123100 Front / rear panel L

B3123100

Front / rear panel L Suitable for MOTEC L B3023117 with flat base and top part.

Supply 1 front panel

Zamknij

B3123100

Front / rear panel L
produkt został dodany do twojej listy
Aluminium
matt anodised
214x52x1,5mm

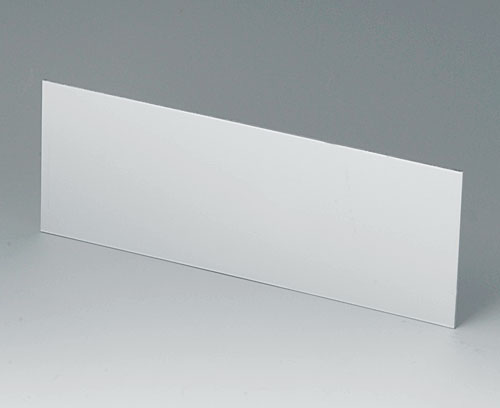

B3123110 Front / rear panel L

B3123110

Front / rear panel L Suitable for MOTEC L B3023127 and B3023147 with flat base and high top part.

Supply 1 front panel

Zamknij

B3123110

Front / rear panel L
produkt został dodany do twojej listy
Aluminium
matt anodised
214x77x1,5mm

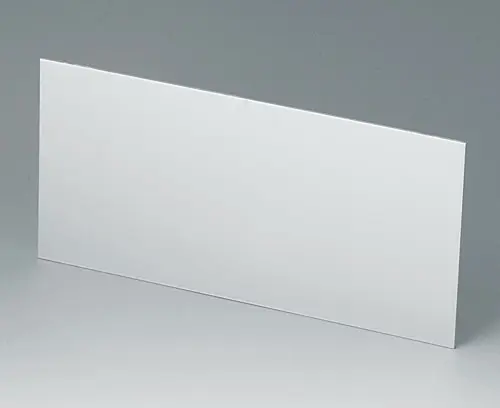

B3123120 Front / rear panel L

B3123120

Front / rear panel L Suitable for MOTEC L B3023137 with high base and top part.

Supply 1 front panel

Zamknij

B3123120

Front / rear panel L
produkt został dodany do twojej listy
Aluminium
matt anodised
214x102x1,5mm

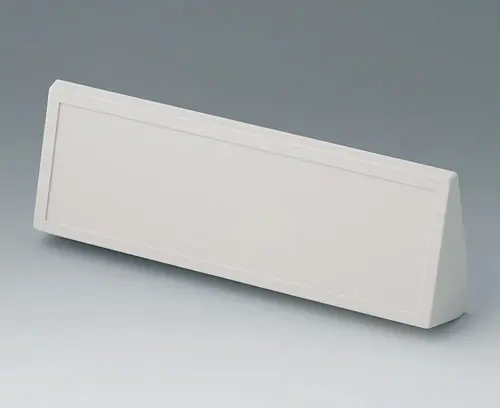

B3123167 Sloping control panel L, flat/high

B3123167

Sloping control panel L, flat/high Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Zamknij

B3123167

Sloping control panel L, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
B3123177 Sloping control panel L, high/high

B3123177

Sloping control panel L, high/high Suitable for MOTEC L B3023137 with high top and base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Zamknij

B3123177

Sloping control panel L, high/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Opcje dostosowywania dla Motec

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
