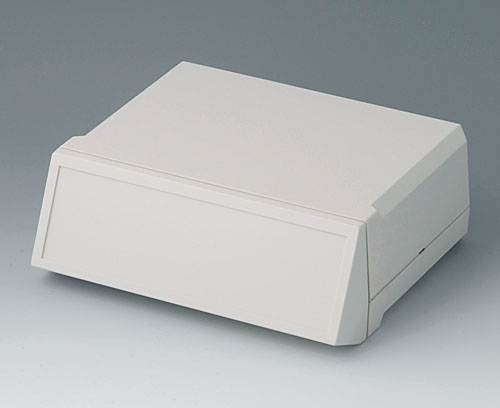

B3120167 Sloping control panel M, flat/high

B3120167

Sloping control panel M, flat/high

Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply

1 sloping control panel

  • To be used for
  • Opcje dostosowywania
B3020127 MOTEC M, flat/high

B3020127

MOTEC M, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Zamknij

B3020127

MOTEC M, flat/high
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
205x140x75mm
IP 40
B3020147 MOTEC M, with handle bar

B3020147

MOTEC M, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

Zamknij

B3020147

MOTEC M, with handle bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
205x140x75mm
IP 40

Opcje dostosowywania dla B3120167

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Kolor
off-white RAL 9002
Keypad length
186,7 mm
Keypad width
54,4 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
74 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
