B3020137

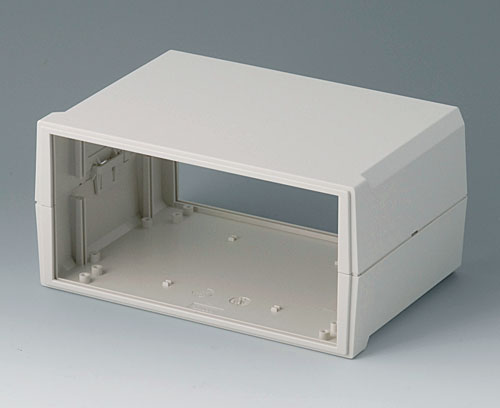

MOTEC M, high/high
Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply1 top and base part, 4 self-adhesive case feet
Generate Your PDF Datasheet for B3020137
Please select the product details you would like to include in the PDF.
Accessory to complete
B3120120
Supply 1 front panel

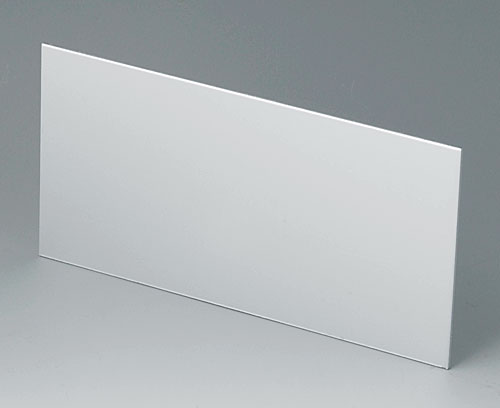

B3120120
Front / rear panel Mmatt anodised
185x92x1,5mm
Accessory "screws"
A9199008
Supply 4 screws
A9199008
Set of screwsDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 226 KB
- AutoCAD DWG-File 628 KB
- AutoCAD DXF-File 2 146 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 1 013 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013411.x_t 1 325 KB
- 00013411.step 3 383 KB
- 00013411.sat 6 200 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
