A9150219

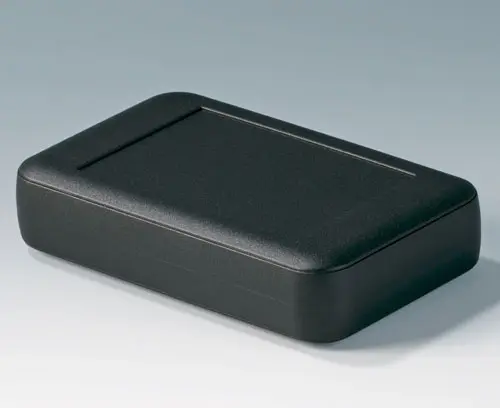

Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply1 intermediate ring
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para A9150219
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
A9050107
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050107
SOFT-CASE SProducto añadido a su lista
off-white RAL 9002
51x82x14mm
,
A9050108
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050108
SOFT-CASE SProducto añadido a su lista
lava
51x82x14mm
,
A9050209
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050209
SOFT-CASE SProducto añadido a su lista
black RAL 9005
51x82x14mm
,
Customising options for A9150219
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Longitud
54 mm
Anchura
85 mm
Altura
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 313 KB
- AutoCAD DWG-File 351 KB
- AutoCAD DXF-File 1.120 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.212 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008010.x_t 5.433 KB
- 00008010.STEP 12.636 KB
- 00008010.SAT 13.861 KB
Weight/1 part
8 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9150219 y no olvide solicitar presupuesto.
