A9050107

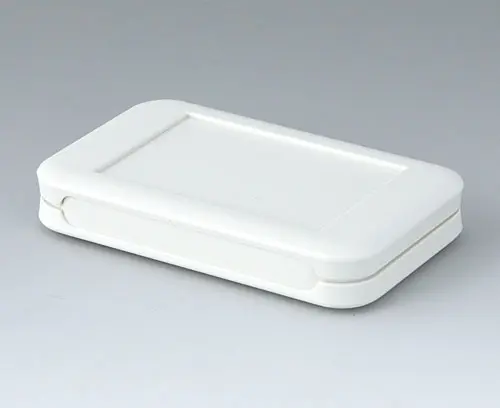

SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
Cree su ficha de datos en PDF para A9050107
Seleccione la información del producto para su ficha de datos.
Accessory "intermediate ring"

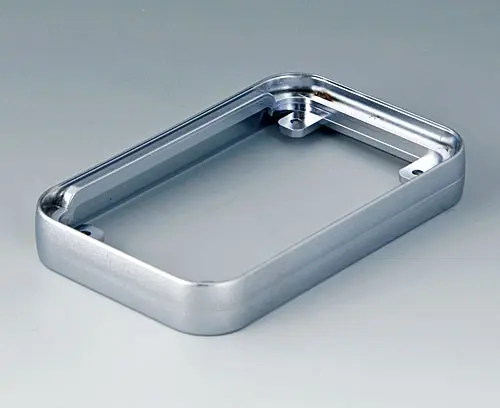

A9150011
Supply 1 intermediate ring
A9150011
Intermediate ring Smatt chromed
54x85x12mm
A9150017
Supply 1 intermediate ring
A9150017
Intermediate ring Soff-white RAL 9002
54x85x12mm

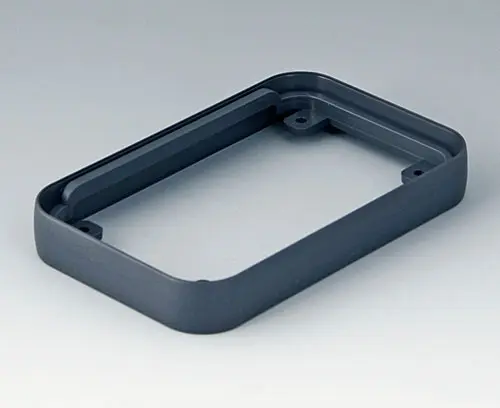

A9150018
Supply 1 intermediate ring
A9150018
Intermediate ring Slava
54x85x12mm
A9150118
Supply 1 intermediate ring
A9150118
Intermediate protection ring Svolcano
54x85x12mm

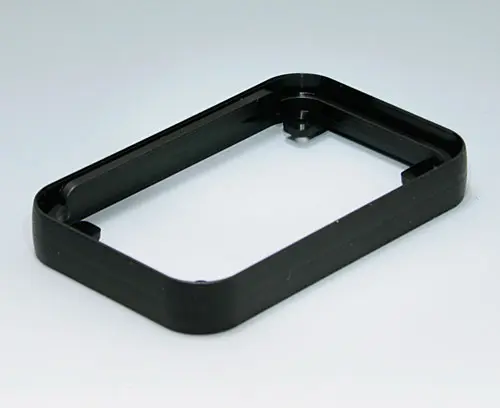

A9150219
Supply 1 intermediate ring
A9150219
Intermediate ring Sblack RAL 9005
54x85x12mm
Accessory "wall/holder"
A9152047
Supply 1 set
A9152047
Combi-Clipoff-white RAL 9002
45x27mm
Accessory "carrying"
A9100001
Supply 1 ring eyelet
A9100001
Ring eyeletvolcano
A9152047
Supply 1 set
A9152047
Combi-Clipoff-white RAL 9002
45x27mm
Accessory "screws"

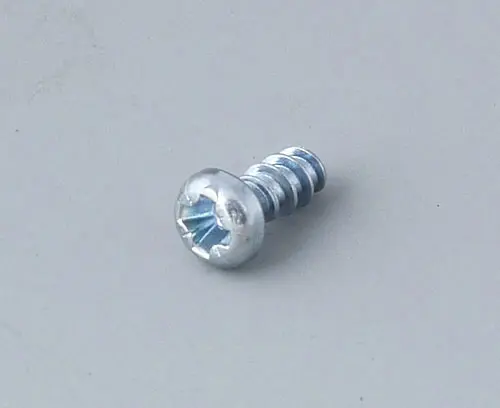

A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Accessory

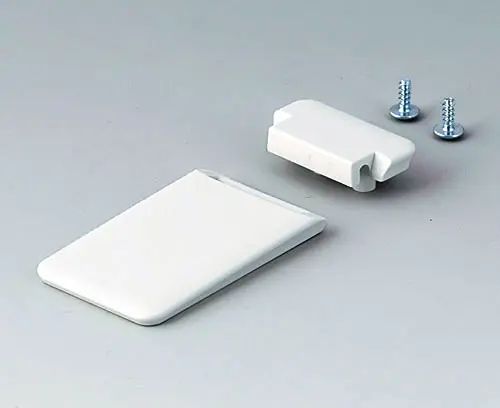

A9152057
Supply 1 tilt foot bar, assembly kit
A9152057
Tilt foot baroff-white RAL 9002
Necessary accessories: soft TPE intermediate ring,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 409 KB
- AutoCAD DWG-File 472 KB
- AutoCAD DXF-File 1.767 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.554 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008009.x_t 4.705 KB
- 00008009.STEP 11.221 KB
- 00008009.SAT 12.632 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9050107 y no olvide solicitar presupuesto.
