Accesorios para cajas
A9167017

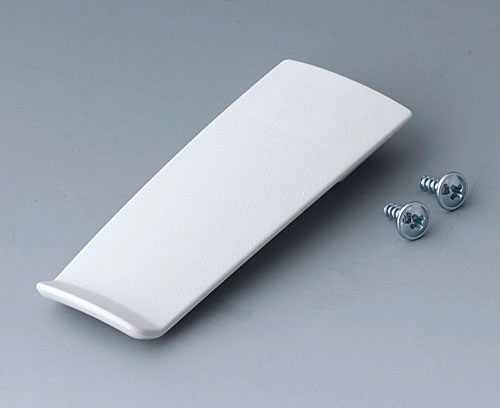

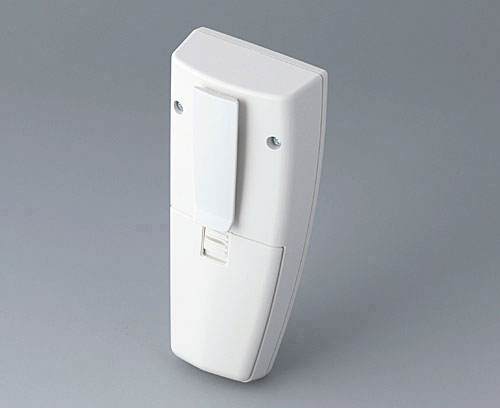

Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 Clip, assembly kit
Cree su ficha de datos en PDF para A9167017
Seleccione la información del producto para su ficha de datos.
A9066107
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066107
SMART-CASE M, Vers. Ioff-white RAL 9002
96x47x24mm
A9066117
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066117
SMART-CASE M, Vers. IIoff-white RAL 9002
96x47x24mm
A9066127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066127
SMART-CASE M, Vers. IIIoff-white RAL 9002
96x47x24mm
A9066137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066137
SMART-CASE M, Vers. IVoff-white RAL 9002
96x47x24mm
A9066147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066147
SMART-CASE M, Vers. Voff-white RAL 9002
96x47x24mm
A9066317
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066317
SMART-CASE M, Vers. VIoff-white RAL 9002
96x47x24mm
A9067107
Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067107
SMART-CASE L, Vers. Ioff-white RAL 9002
140x62,7x30,5mm
A9067117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067117
SMART-CASE L, Vers. IIoff-white RAL 9002
140x62,7x30,5mm
,
A9067127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067127
SMART-CASE L, Vers. IIIoff-white RAL 9002
140x62,7x30,5mm
,
A9067137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067137
SMART-CASE L, Vers. IVoff-white RAL 9002
140x62,7x30,5mm
,
A9067147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067147
SMART-CASE L, Vers. Voff-white RAL 9002
140x62,7x30,5mm
,
A9068107
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068107
SMART-CASE XL, Vers. Ioff-white RAL 9002
168x74,4x35,4mm
A9068117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068117
SMART-CASE XL, Vers. IIoff-white RAL 9002
168x74,4x35,4mm
,
A9068127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068127
SMART-CASE XL, Vers. IIIoff-white RAL 9002
168x74,4x35,4mm
,
A9068137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068137
SMART-CASE XL, Vers. IVoff-white RAL 9002
168x74,4x35,4mm
,
A9068147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068147
SMART-CASE XL, Vers. Voff-white RAL 9002
168x74,4x35,4mm
,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 174 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 684 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9167017 y no olvide solicitar presupuesto.
