Accesorios para cajas
A9068127
SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
VersionWithout battery compartment, bottom part with cable strain (5 - 5.9 mm)
SupplyCase-top and base, cable strain, assembly kit
Cree su ficha de datos en PDF para A9068127
Seleccione la información del producto para su ficha de datos.
Accessory "protection"
A9166004
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefvolcano
A9168002
Supply 1 sealing
A9168002

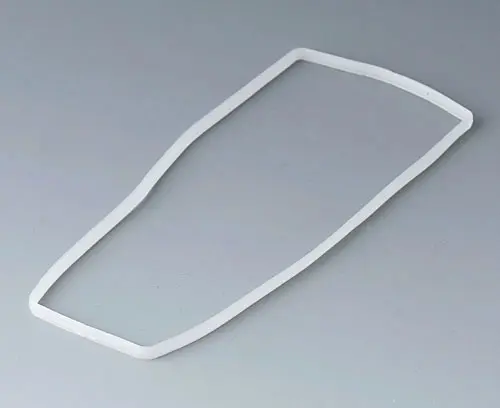

Sealing XLAccessory "wall/holder"
A9167027
Supply 1 holding clamp, assembly kit
A9167027
Holding clampoff-white RAL 9002
A9168005
Supply 1 piece
A9168005
Adhesive foil XL
A9168307
Supply 1 holder
A9168307
Holder XLoff-white RAL 9002
Accessory "carrying"
A9167017
Supply 1 Clip, assembly kit
A9167017
Belt/pocket clipoff-white RAL 9002
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Enclosure
Cable gland
Necessary accessories: sealing,
Cable gland volcano
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 403 KB
- AutoCAD DWG-File 1.683 KB
- AutoCAD DXF-File 6.394 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.534 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012303.x_t 2.933 KB
- 00012303.STEP 6.846 KB
- 00012303.SAT 7.211 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9068127 y no olvide solicitar presupuesto.
