Accesorios para cajas
B6622101

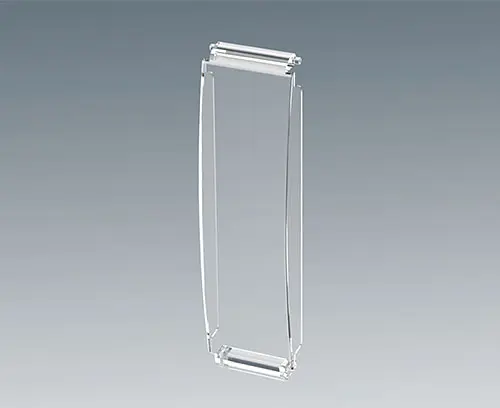

Hinged cover

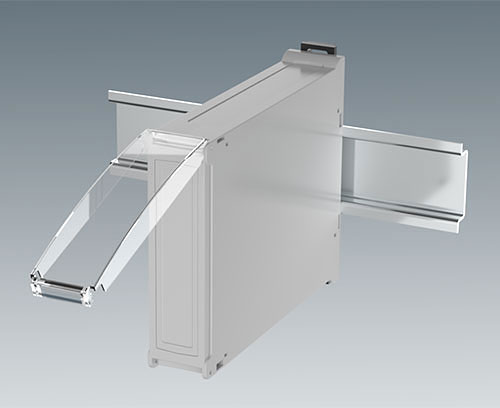

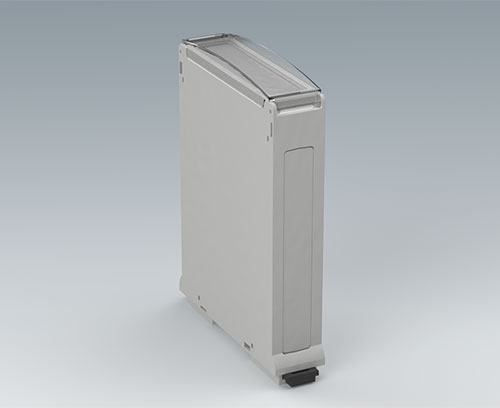

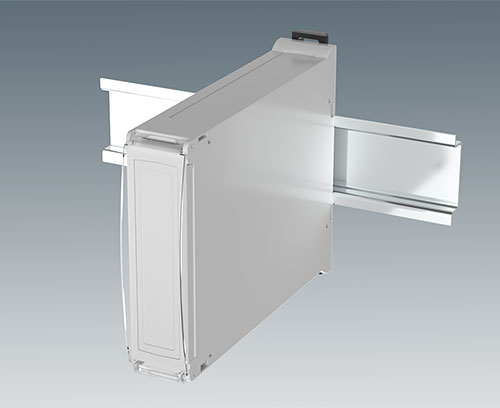

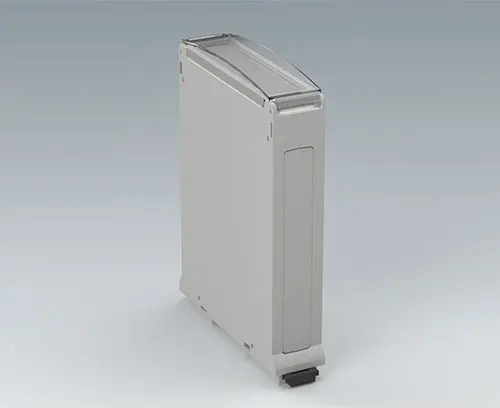

Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.
Minimum order quantity: 10 pieces or multiples
in packaging units of 10 pieces
Cree su ficha de datos en PDF para B6622101
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B6522101

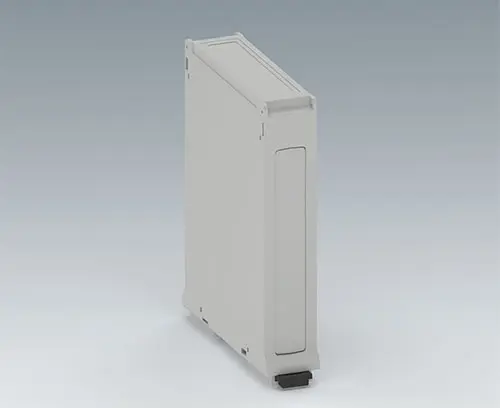

RAILTEC BP, M22, with closed side panels
DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Version with closed side panels
Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)
B6522101
RAILTEC BP, M22, with closed side panelsProducto añadido a su lista
light grey RAL 7035
95x23x113mm
B6522102
RAILTEC BP, M22, closed/with ventilation slots
DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Version 1 side panel closed, 1 side panel with ventilation slots
Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)
B6522102
RAILTEC BP, M22, closed/with ventilation slotsProducto añadido a su lista
light grey RAL 7035
95x23x113mm
B6522103

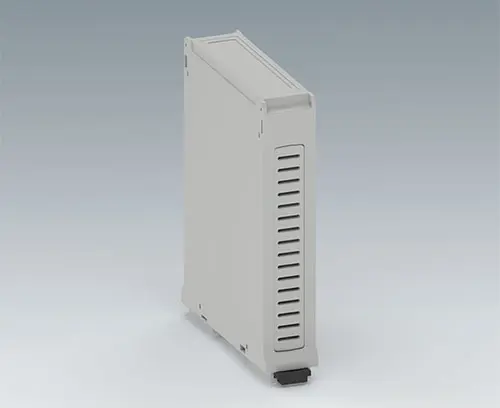

RAILTEC BP, M22, with ventilation slots
DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Version 2 side panels with ventilation slots
Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)
B6522103
RAILTEC BP, M22, with ventilation slotsProducto añadido a su lista
light grey RAL 7035
95x23x113mm
Customising options for B6622101
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Color
transparent
Standards
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6622101 y no olvide solicitar presupuesto.
