B6522103

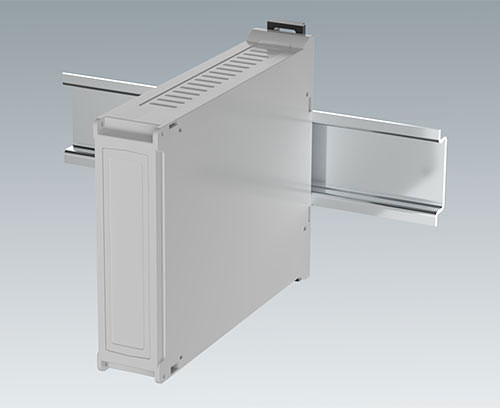

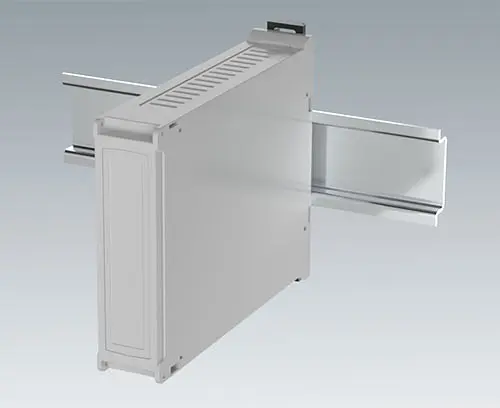

RAILTEC BP, M22, with ventilation slots

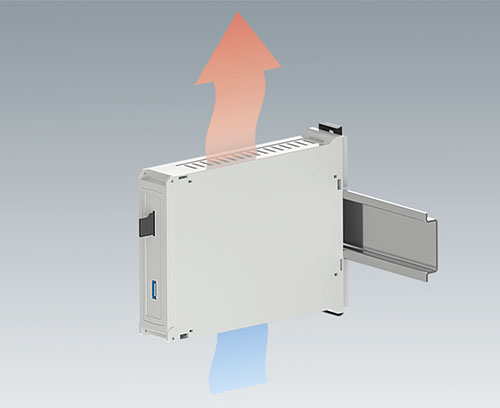

DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
2 side panels with ventilation slots

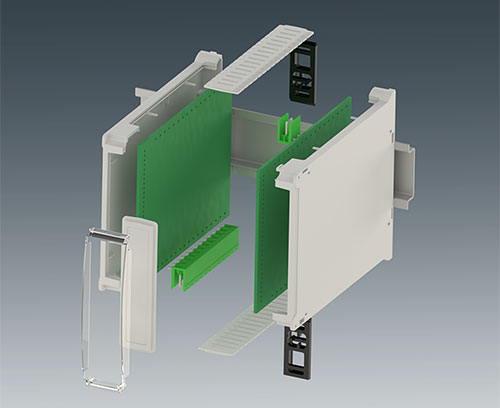

Supplyin packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)
Cree su ficha de datos en PDF para B6522103
Seleccione la información del producto para su ficha de datos.
Accessory "protection"
B6622101
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6622101
Hinged coverAccessory "terminals"
B6600222
Supply 1 piece
B6600222

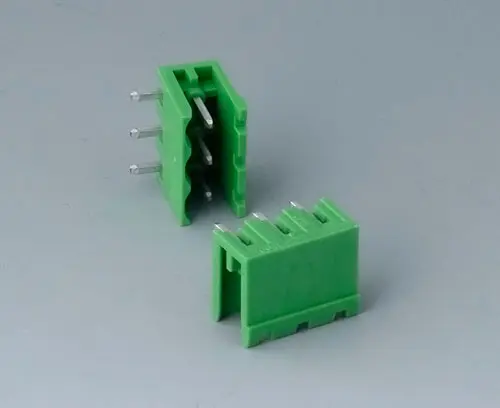

Plug header, block 5.08
B6601222
Supply 1 piece
B6601222
Plug header, block 5.08
B6602222
Supply 1 piece
B6602222
Plug header, block 5.08
B6605222
Supply 1 piece
B6605222
Plug header, block 5.08
B6606222
Supply 1 piece
B6606222

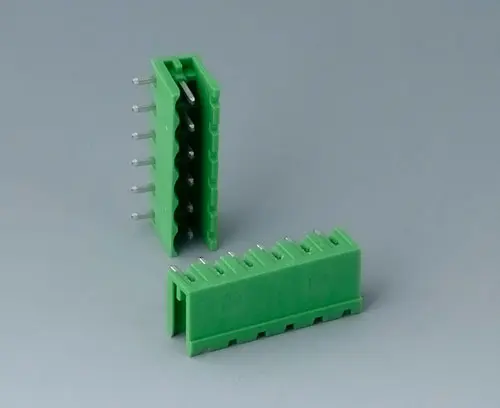

Plug header, block 5.08
B6608222
Supply 1 piece
B6608222
Plug header, block 5.08Accessory
B6522801
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522801

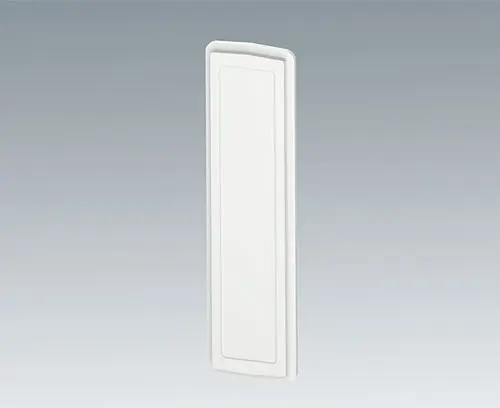

Front panellight grey RAL 7035
B6522811
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522811

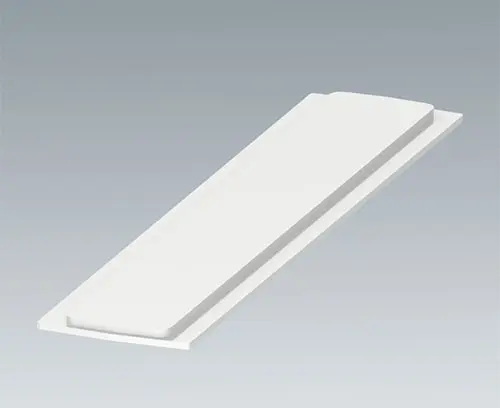

Side panel closedlight grey RAL 7035
B6522821
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522821

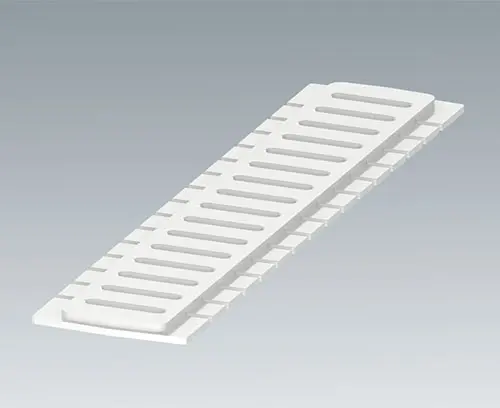

Side panel with ventilation slotslight grey RAL 7035
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 203 KB
- AutoCAD DWG-File 519 KB
- AutoCAD DXF-File 2.008 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 407 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00029629.x_t 2.264 KB
- 00029629.step 3.059 KB
- 00029629.sat 4.721 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6522103 y no olvide solicitar presupuesto.
