B1824217

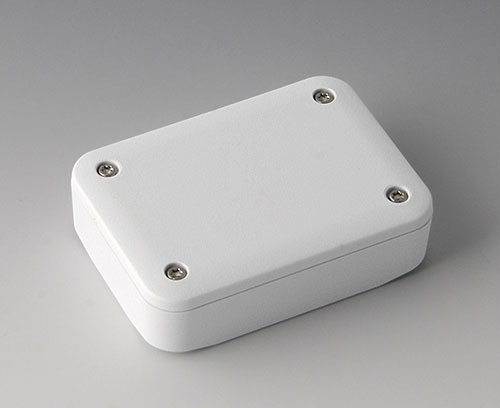

MINI-DATA-BOX E50, high
2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Top part high
SupplyTop and bottom parts, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B1824217
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "protection"
B1924101
Sealing E50/EF50
Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1924101
Sealing E50/EF50Producto añadido a su lista
Customising options for B1824217
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Protection class
Necessary accessories: sealing,
Color
traffic white RAL 9016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
70 mm
Anchura
50 mm
Altura
20 mm
PCB length, base
62 mm
PCB width, base
42 mm
PCB length, top
62 mm
PCB width, top
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 222 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 1.173 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 562 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028542.x_t 1.627 KB
- 00028542.step 3.678 KB
- 00028542.sat 5.477 KB
Weight/1 part
25 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B1824217 y no olvide solicitar presupuesto.
