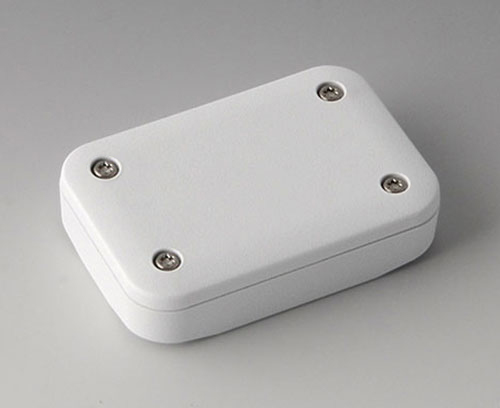

MINI-DATA-BOX E40, flat
2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Top part flat
SupplyTop and bottom parts, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B1822117
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "protection"
B1922101
Sealing E40/EF40
Use: increases the protection class of MINI-DATA-BOX E40 and EF40. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1922101
Sealing E40/EF40Producto añadido a su lista
Customising options for B1822117
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Protection class
Necessary accessories: sealing,
Color
traffic white RAL 9016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
60 mm
Anchura
40 mm
Altura
15 mm
PCB length, base
52 mm
PCB width, base
32 mm
PCB length, top
52 mm
PCB width, top
32 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 253 KB
- AutoCAD DWG-File 333 KB
- AutoCAD DXF-File 1.192 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 485 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028537.x_t 1.655 KB
- 00028537.step 3.744 KB
- 00028537.sat 5.514 KB
Weight/1 part
16 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B1822117 y no olvide solicitar presupuesto.
