B1804217

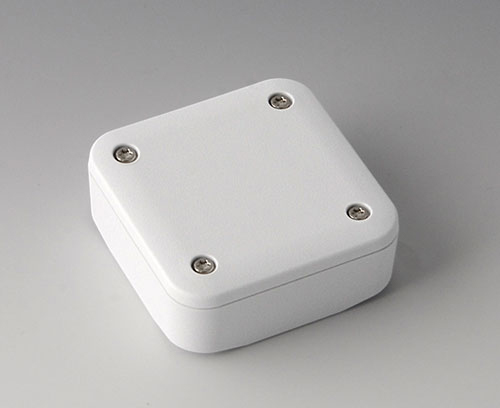

MINI-DATA-BOX S50, high
2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Top part high
SupplyTop and bottom parts, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B1804217
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "protection"
B1904101
Sealing S50/SF50
Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1904101
Sealing S50/SF50Producto añadido a su lista
Customising options for B1804217
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Protection class
Necessary accessories: sealing,
Color
traffic white RAL 9016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
50 mm
Anchura
50 mm
Altura
20 mm
PCB length, base
42 mm
PCB width, base
42 mm
PCB length, top
42 mm
PCB width, top
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 253 KB
- AutoCAD DWG-File 319 KB
- AutoCAD DXF-File 1.139 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 464 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028534.x_t 1.655 KB
- 00028534.step 3.753 KB
- 00028534.sat 5.510 KB
Weight/1 part
18 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
