Accesorios para cajas
B2129507

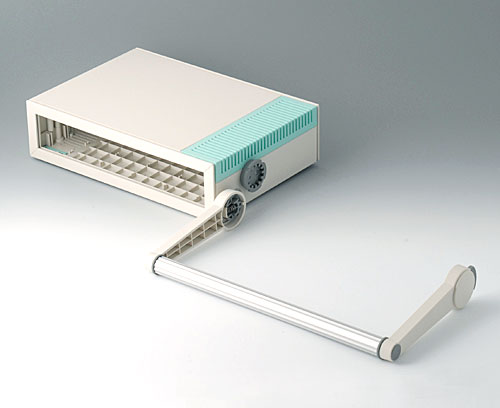

Handle bar D
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply2 side arms, 1 Al-profile, antislipping device, lid, assembly kit
Descarga 3D/2D
Cree su ficha de datos en PDF para B2129507
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
System components to complete
B2010007
L-shells D 220, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010007
L-shells D 220, without holesProducto añadido a su lista
off-white RAL 9002
290x260x74mm
B2010107
L-shells D 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010107
L-shells D 220, with holes for handleProducto añadido a su lista
off-white RAL 9002
290x260x74mm
B2011007
L-shells D 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011007
L-shells D 160, without holesProducto añadido a su lista
off-white RAL 9002
290x200x74mm
B2011107
L-shells D 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011107
L-shells D 160, with holes for handleProducto añadido a su lista
off-white RAL 9002
290x200x74mm
B2020005
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020005
Side trims 220, without ventilationProducto añadido a su lista
lagoon
B2020007
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020007
Side trims 220, without ventilationProducto añadido a su lista
off-white RAL 9002
B2021005
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021005
Side trims 220, with ventilationProducto añadido a su lista
lagoon
B2021007
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021007
Side trims 220, with ventilationProducto añadido a su lista
off-white RAL 9002
B2022005
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2022005
Side trims 160, without ventilationProducto añadido a su lista
lagoon
B2022007
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2022007
Side trims 160, without ventilationProducto añadido a su lista
off-white RAL 9002
B2023005
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023005
Side trims 160, with ventilationProducto añadido a su lista
lagoon
B2023007
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023007
Side trims 160, with ventilationProducto añadido a su lista
off-white RAL 9002
B2030107
Side panels 220, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030107
Side panels 220, with holes for handleProducto añadido a su lista
off-white RAL 9002
B2031107
Side panels 160, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031107
Side panels 160, with holes for handleProducto añadido a su lista
off-white RAL 9002
B2210005
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2210005
MEDITEC D 220, without handle barProducto añadido a su lista
off-white RAL 9002
290x260x74mm
B2210007
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2210007
MEDITEC D 220, without handle barProducto añadido a su lista
off-white RAL 9002
290x260x74mm
B2210015
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2210015
MEDITEC D 220, without handle barProducto añadido a su lista
off-white RAL 9002
290x260x74mm
B2210017
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2210017
MEDITEC D 220, without handle barProducto añadido a su lista
off-white RAL 9002
290x260x74mm
B2211005
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2211005
MEDITEC D 160, without handle barProducto añadido a su lista
off-white RAL 9002
290x200x74mm
B2211007
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2211007
MEDITEC D 160, without handle barProducto añadido a su lista
off-white RAL 9002
290x200x74mm
B2211015
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2211015
MEDITEC D 160, without handle barProducto añadido a su lista
off-white RAL 9002
290x200x74mm
B2211017
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2211017
MEDITEC D 160, without handle barProducto añadido a su lista
off-white RAL 9002
290x200x74mm
Accessory to complete
B2129007
Sloping control panel D
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version D (for MEDITEC D160 or D220)
Supply 1 angle, 1 cover, assembly kit
B2129007
Sloping control panel DProducto añadido a su lista
off-white RAL 9002
B2129307
Front / rear panel D, flat
For case without side panels.
Supply 1 front panel
B2129307
Front / rear panel D, flatProducto añadido a su lista
off-white RAL 9002
271,6x55,6x3mm
B2129407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2129407
Front / rear panel Z1Producto añadido a su lista
off-white RAL 9002
271,6x105,6x3mm
B2129707
Infill panel D
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version D
Supply 1 front cover (for locking)
B2129707
Infill panel DProducto añadido a su lista
off-white RAL 9002
272x55x5mm
Accessory "screws"
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screwsProducto añadido a su lista
Accessory
B2134012
Stacking elements
Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.
Supply 4 stacking elements
B2134012
Stacking elementsProducto añadido a su lista
volcano
Customising options for B2129507
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Color
Side arms
off-white RAL 9002,
Push button handle volcano,
Profile handle matt anodised
Push button handle volcano,
Profile handle matt anodised
Standards
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
Weight/1 part
225 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
