Accesorios para cajas
B7110109

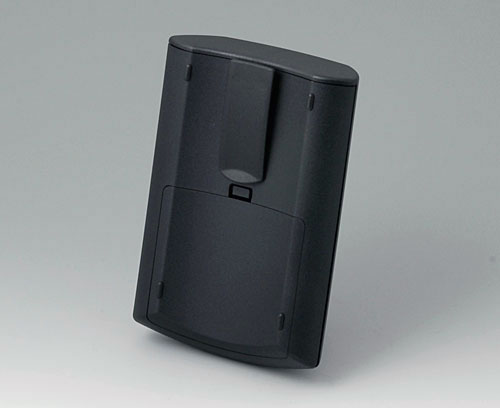

Belt / pocket clip
Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 clip, assembly kit
Plano 2D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B7110109
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B7000109
ERGO-CASE S, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7000109
ERGO-CASE S, flatProducto añadido a su lista
black RAL 9005
80x96x32mm
B7005109
ERGO-CASE S, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7005109
ERGO-CASE S, highProducto añadido a su lista
black RAL 9005
80x96x44mm
B7010109
ERGO-CASE M, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).
Version With flat top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7010109
ERGO-CASE M, flatProducto añadido a su lista
black RAL 9005
150x100x40mm
B7010209
ERGO-CASE M, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7010209
ERGO-CASE M, flatProducto añadido a su lista
black RAL 9005
150x100x40mm
B7015109
ERGO-CASE M, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).
Version With high top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7015109
ERGO-CASE M, highProducto añadido a su lista
black RAL 9005
150x100x55mm
B7015209
ERGO-CASE M, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7015209
ERGO-CASE M, highProducto añadido a su lista
black RAL 9005
150x100x55mm
Customising options for B7110109
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 171 KB
- AutoCAD DWG-File 294 KB
- AutoCAD DXF-File 1.076 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B7110109 y no olvide solicitar presupuesto.
