Ergo-Case

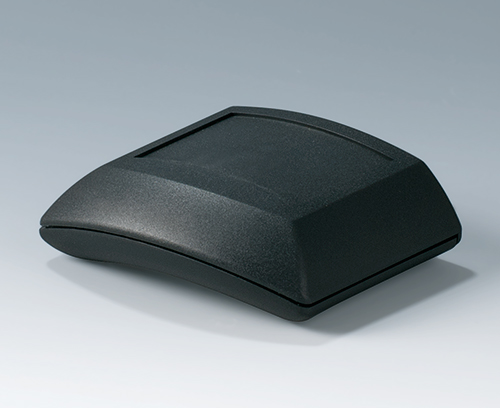

Cajas para electrónica en diseño convexo

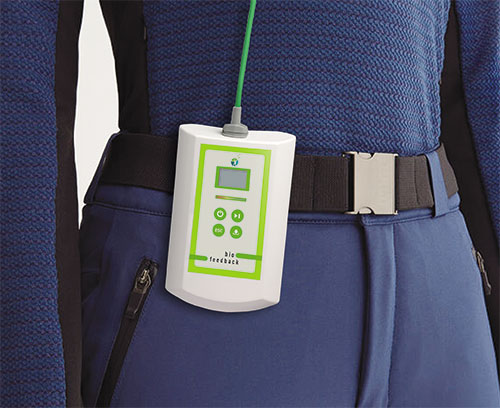

El diseño ergonómico único de la serie ERGO-CASES permite al usuario llevar las unidades cómodamente en el cuerpo, ya sea en el brazo, en el pecho o en la cintura.

  • Diseño único para un fácil transporte, agarre y utilización.

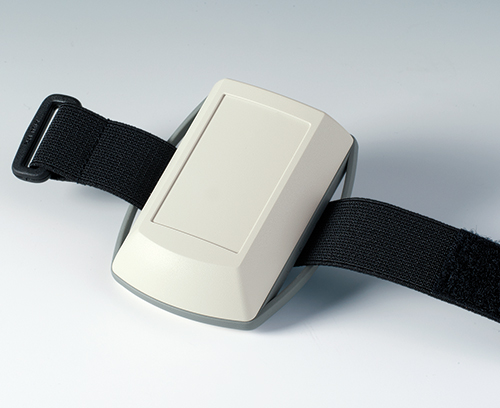

  • Accesorios integrados para su transporte como, por ejemplo, bandas de pulsera o cinturón, argolla de sujeción, clips de sujeción, etc.

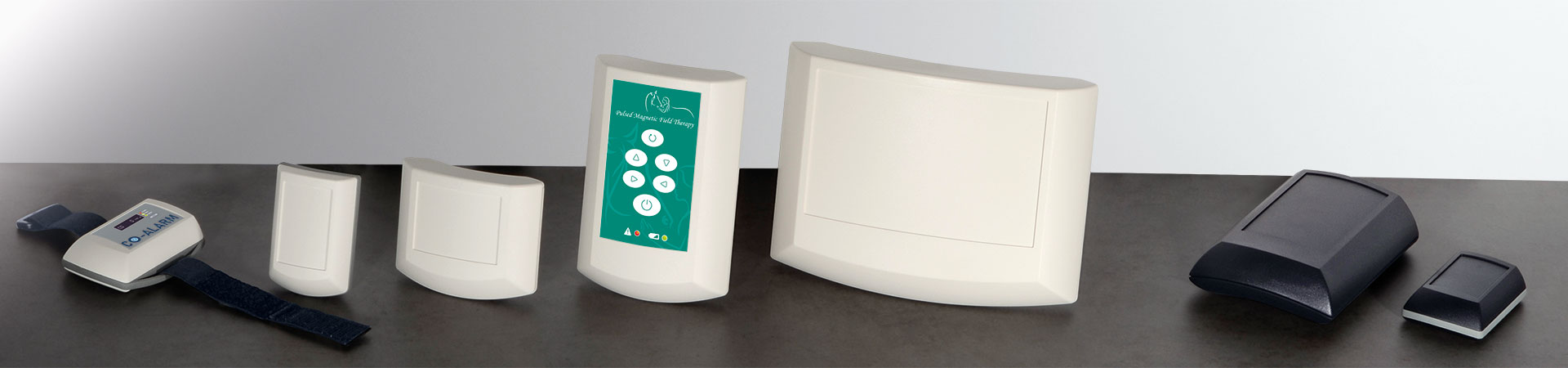

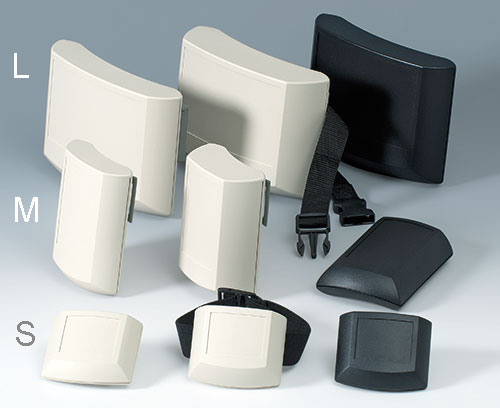

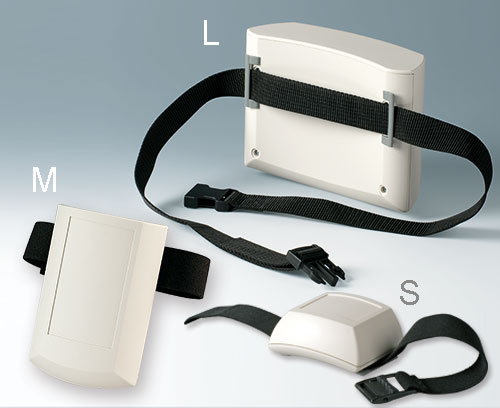

  • 4 tamaños en 2 colores.

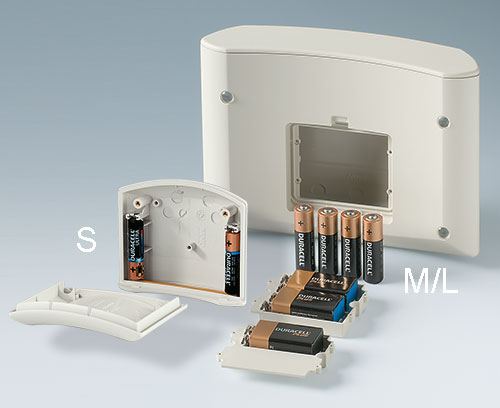

  • Con/sin compartimiento para pilas:
    compartimentos en los tamaños M y L para 4 x AA, 1 x 9 V, 2 x 9 V con tapa enclaustrada o asegurada con un tornillo si es necesario; tamaño S con soportes integrados para 2 x AAA.

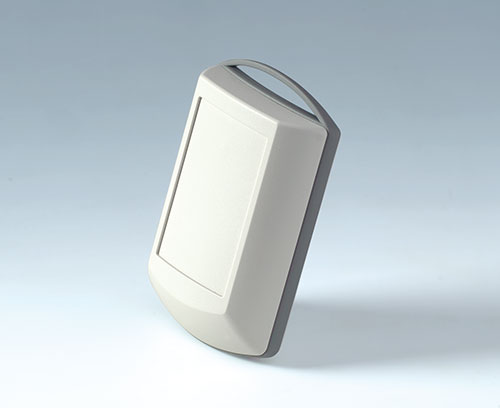

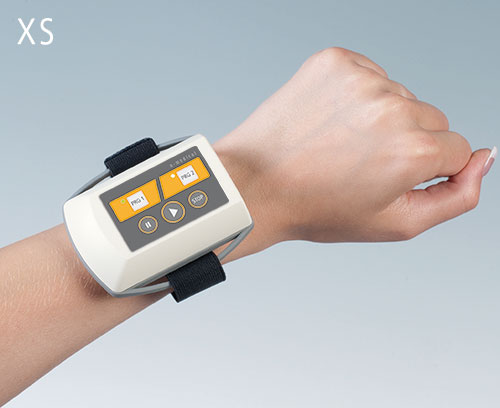

  • Tamaño XS con anillo intermedio de TPE con/sin argolla para accesorios de transporte.
  • Parte superior plana o gruesa para una configuración individualizada de la instalación.

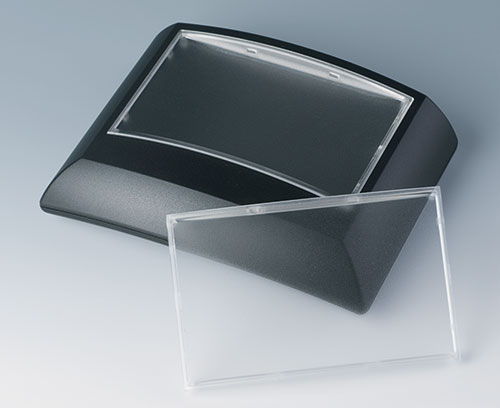

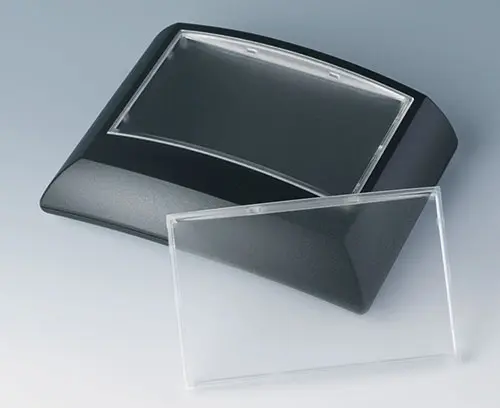

  • Tamaño L con panel display en PC translúcido o ABS del color de la caja.

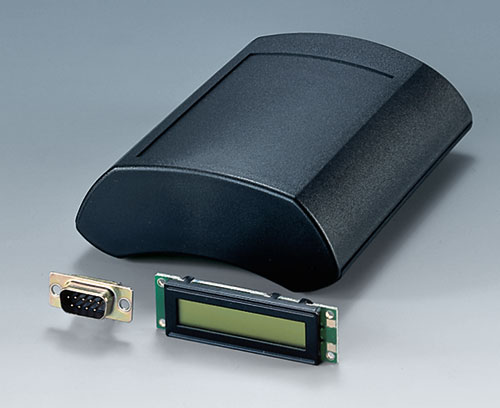

  • Panel superior plano para el montaje de conectores, botones, LDCs, etc.
  • Panel de control rebajado para proteger el teclado de membrana.

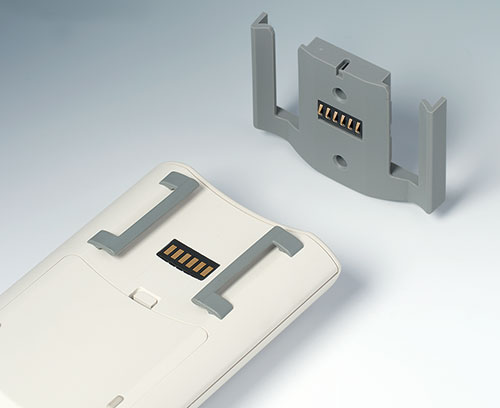

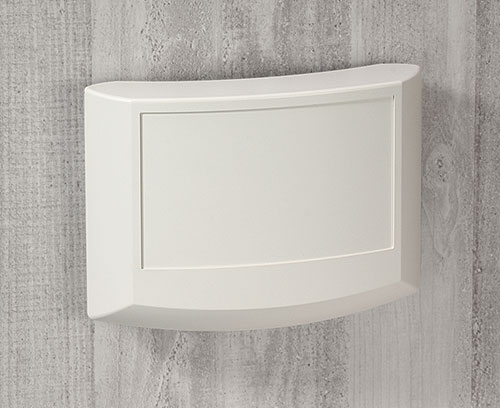

  • Montaje de pared con protección contra desmontaje; transmisión sencilla de datos y recarga; contactos disponibles como accesorios (S, M, L).

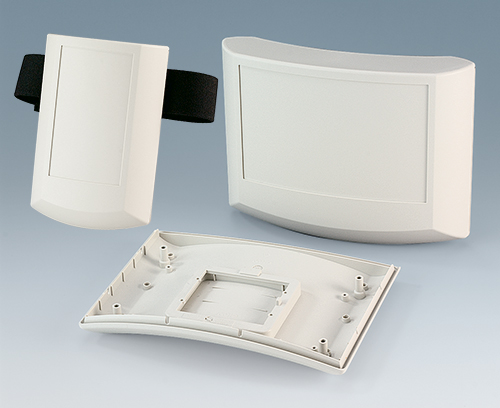

  • Cabezales de fijación para placas de circuitos impresos y piezas de montaje.
  • Protector absorbe-golpes y protege las superficies (accesorio de tamaño M).

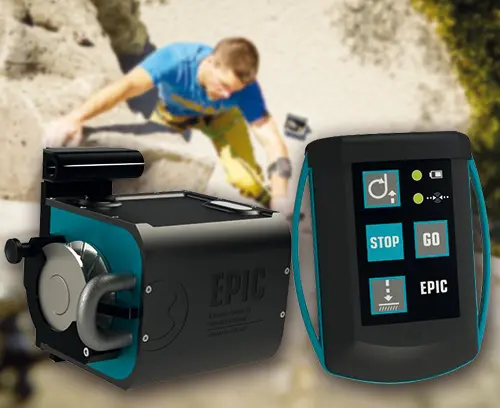

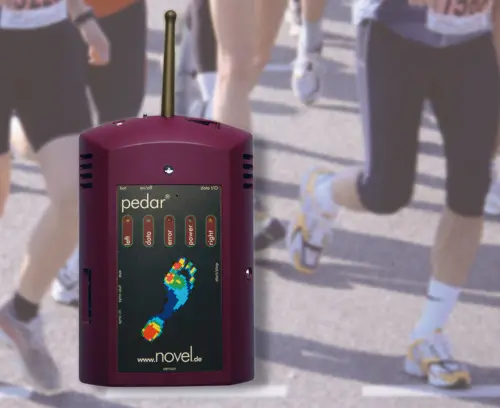

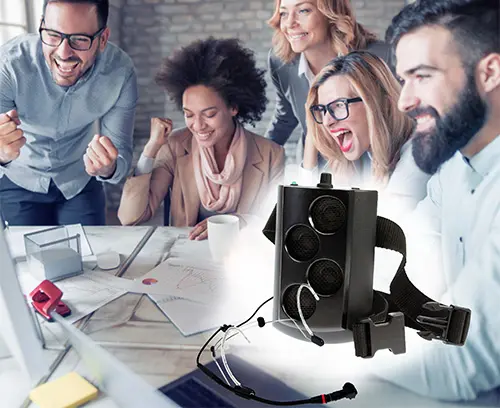

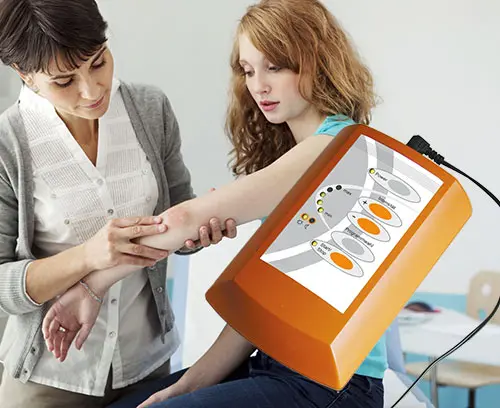

  • Ejemplos de aplicación

Application fields

  • Recopilación y transmisión móvil de datos
  • Tecnologías de medicina y laboratorio
  • Salud y bienestar
  • IoT/IIoT
  • Tecnologías digitales de comunicación
  • Logística de almacenamiento y distribución
  • Tecnologías de medición
  • Tecnologías de control y regulación
  • Versiones
  • Accesorios
  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista
AltText

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Cerrar

A9100001

Ring eyelet
Producto añadido a su lista
PA 6
volcano
AltText

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
AltText

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Cerrar

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Producto añadido a su lista
Steel
tin-plated
AltText

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9174002

Battery compartment, 2 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9174003

Battery compartment, 1 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Cerrar

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista
Steel
tin-plated
AltText

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178007

Contacts, male
Producto añadido a su lista
gold-plated
AltText

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178008

Contacts, female
Producto añadido a su lista
gold-plated
AltText

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Cerrar

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

B7100002

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 2 battery clips, 1 battery for serial connection

Cerrar

B7100002

Set of battery clips, 2 x AAA
Producto añadido a su lista
AltText

B7100005

Sealing S Application: for increasing the protection class, of ERGO-CASE S.

Supply 1 sealing

Cerrar

B7100005

Sealing S
Producto añadido a su lista
AltText

B7110001

Sealing kit M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing kit

Cerrar

B7110001

Sealing kit M
Producto añadido a su lista
AltText

B7110005

Sealing M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing

Cerrar

B7110005

Sealing M
Producto añadido a su lista
AltText

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Cerrar

B7110028

Fastening elements L / M / S
Producto añadido a su lista
PA 6
volcano
AltText

B7110048

Wall suspension elements S / M Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 assembly kit

Cerrar

B7110048

Wall suspension elements S / M
Producto añadido a su lista
PA 6
volcano
AltText

B7110107

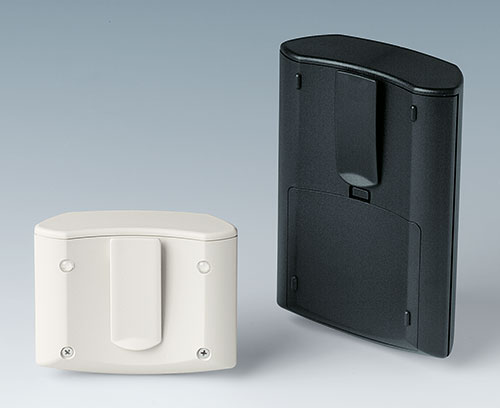

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

Cerrar

B7110107

Belt / pocket clip
Producto añadido a su lista
PA 6
off-white RAL 9002
AltText

B7110109

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

Cerrar

B7110109

Belt / pocket clip
Producto añadido a su lista
PA 6
black RAL 9005
AltText

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

Cerrar

B7110129

Belt strap
Producto añadido a su lista
black
450x35mm
AltText

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Cerrar

B7110139

Belt strap
Producto añadido a su lista
black
1200x30mm
AltText

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Cerrar

B7110149

Belt strap
Producto añadido a su lista
black
1500x30mm
AltText

B7115108

Protector M, high Special protector for ERGO-CASE M, high. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Cerrar

B7115108

Protector M, high
Producto añadido a su lista
TPE
volcano
AltText

B7120001

Sealing kit L Application: for increasing the protection class, of ERGO-CASE L.

Supply 1 sealing kit

Cerrar

B7120001

Sealing kit L
Producto añadido a su lista
AltText

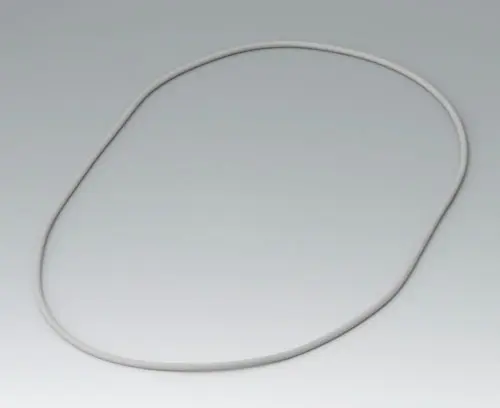

B7120005

Sealing L Application: for increasing the protection class, of ERGO-CASE L.

Supply 1 sealing

Cerrar

B7120005

Sealing L
Producto añadido a su lista
AltText

B7120048

Wall suspension elements L Special wall suspension element for the ERGO-CASE L for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 assembly kit

Cerrar

B7120048

Wall suspension elements L
Producto añadido a su lista
PA 6
volcano
AltText

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

Cerrar

B9100033

Wrist strap
Producto añadido a su lista
black
280mm
AltText

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Cerrar

B9100063

Carrying strap, textile lanyard
Producto añadido a su lista
black
860mm
AltText

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Cerrar

B9100073

Carrying strap, textile lanyard
Producto añadido a su lista
black
914x16mm

Opciones de productos para Ergo-Case

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
