Accesorios para cajas
B7000107

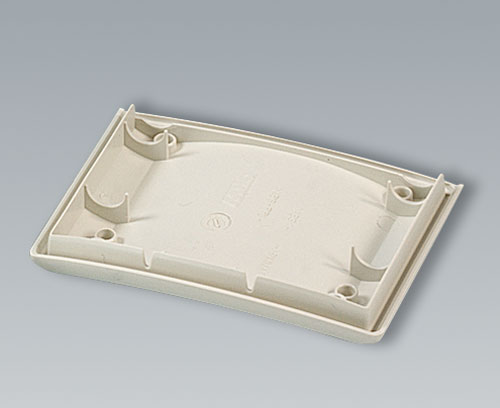

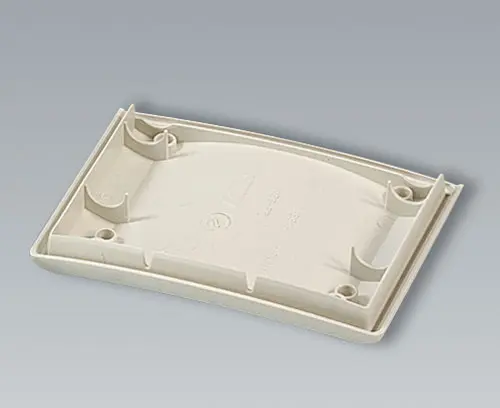

ERGO-CASE S, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
VersionWith flat top part
Supply1 top and 1 bottom part, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B7000107
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "battery"
B7100002
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 2 battery clips, 1 battery for serial connection
B7100002
Set of battery clips, 2 x AAAProducto añadido a su lista
Accessory "protection"
B7100005
Sealing S
Application: for increasing the protection class, of ERGO-CASE S.
Supply 1 sealing
B7100005
Sealing SProducto añadido a su lista
Accessory "wall/holder"
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProducto añadido a su lista
B7110028
Fastening elements L / M / S
To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.
Supply 2 fixings, 1 assembly kit
B7110028
Fastening elements L / M / SProducto añadido a su lista
volcano
B7110048
Wall suspension elements S / M
Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).
Supply 2 wall suspension element, 1 securing clip, 1 screw
B7110048
Wall suspension elements S / MProducto añadido a su lista
volcano
Accessory "carrying"
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletProducto añadido a su lista
volcano
B7110028
Fastening elements L / M / S
To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.
Supply 2 fixings, 1 assembly kit
B7110028
Fastening elements L / M / SProducto añadido a su lista
volcano
B7110107
Belt / pocket clip
Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 clip, assembly kit
B7110107
Belt / pocket clipProducto añadido a su lista
off-white RAL 9002
B7110129
Belt strap
Elastic strap with clamp lock.
Supply 1 belt strap
B7110129
Belt strapProducto añadido a su lista
450x35mm
B7110139
Belt strap
Belt strap with insertion lock.
Supply 1 belt strap
B7110139
Belt strapProducto añadido a su lista
1200x30mm
B7110149
Belt strap
Belt strap with insertion lock.
Supply 1 belt strap
B7110149
Belt strapProducto añadido a su lista
1500x30mm
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Producto añadido a su lista
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProducto añadido a su lista
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleProducto añadido a su lista
Customising options for B7000107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Aplicaciones
- Purchasing Data
Material
Protection class
Necessary accessories: sealing
Color
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
80 mm
Anchura
96 mm
Altura
32 mm
PCB length, top
65 mm
PCB width, top
56 mm
Keypad length
43,8 mm
Keypad width
58,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 227 KB
- AutoCAD DWG-File 530 KB
- AutoCAD DXF-File 2.003 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 2.158 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006172.x_t 2.721 KB
- 00006172.STEP 5.823 KB
- 00006172.SAT 6.745 KB
Weight/1 part
61 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B7000107 y no olvide solicitar presupuesto.
