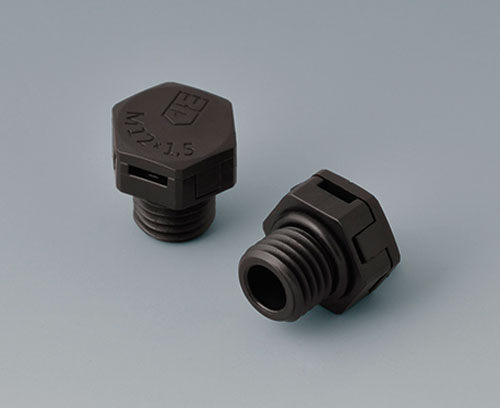

C2305969 Pressure equalisation element M12x1.5 – High-Airflow
Scroll

C2305969

Pressure equalisation element M12x1.5 – High-Airflow

Pressure equalisation elements with a particularly high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can cause negative pressure to build up inside sealed enclosures. Water and dirt can then be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable M12 lock nuts from the OKW portfolio are available for installation inside the enclosures.

Theoretical air flow rate RQ: 24 l/h - 0.07 bar
Water ingress point: > 0.2 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PTFE membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.

Supply

1 pressure compensation element with sealing ring

Crear ficha de datos PDF

Cree su ficha de datos en PDF para C2305969

Seleccione la información del producto para su ficha de datos.

Cerrar
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
  • Componentes adecuados

Accessory

C2312117 Counternut M12x1.5

C2312117

Counternut M12x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Cerrar

C2312117

Counternut M12x1.5
Producto añadido a su lista
PA 6
light grey RAL 7035
  • Datos técnicos
  • Purchasing Data
Material
PA 6 (UL 94 V-0)
Protection class
IP 69, IP 66
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
