Elementos de compensación de presión
Scroll

Elementos de compensación de presión

Con un caudal especialmente alto de aire para proteger los sistemas electrónicos sensibles. Universal para cajas y armarios de distribución. Tamaños M6 y M10.

Crear PDF
  • Selección de todos los artículos
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2306917

Pressure equalisation element M6x0.75
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

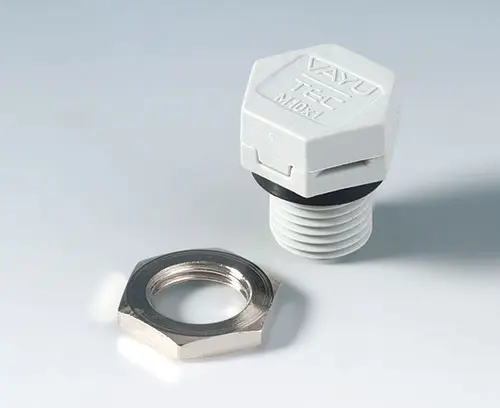

C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2310917

Pressure equalisation element M10x1
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
