B4016217

DATEC-TERMINAL M, Vers. II

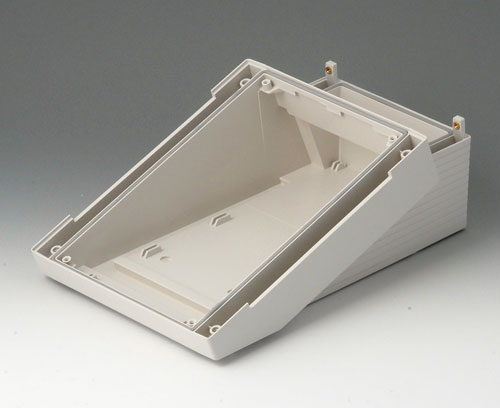

Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.

Suitable for the installation of Eurocards 100 x 160 mm.

Version

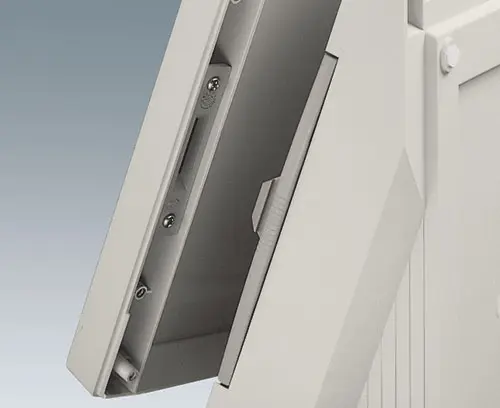

Machined for assembly of hinge and quick-action lock

Supply

1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D

Cree su ficha de datos en PDF para B4016217

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra

Accessory to complete

B4016417 Lid M closed, flat

B4016417

Lid M closed, flat Lid M closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

B4016417

Lid M closed, flat
Producto añadido a su lista

off-white RAL 9002
134x62x24mm
B4016457 Lid M closed, high

B4016457

Lid M closed, high Lid M closed, high to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

B4016457

Lid M closed, high
Producto añadido a su lista

off-white RAL 9002
134x67x38mm
B4016617 Cover M, flat

B4016617

Cover M, flat Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

B4016617

Cover M, flat
Producto añadido a su lista

off-white RAL 9002
168x220x29mm
B4016621 Cover M, flat

B4016621

Cover M, flat Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

B4016621

Cover M, flat
Producto añadido a su lista

transparent
168x220x29mm
B4016631 Cover M, convex

B4016631

Cover M, convex Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

B4016631

Cover M, convex
Producto añadido a su lista

transparent
168x220x29mm
B4016637 Cover M, convex

B4016637

Cover M, convex Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

B4016637

Cover M, convex
Producto añadido a su lista

off-white RAL 9002
168x220x29mm
B4016657 Cover M, high

B4016657

Cover M, high Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

B4016657

Cover M, high
Producto añadido a su lista

off-white RAL 9002
168x220x50mm
B4016671 Cover strip M / L

B4016671

Cover strip M / L For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

B4016671

Cover strip M / L
Producto añadido a su lista

transparent
B4016677 Cover strip M / L

B4016677

Cover strip M / L For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

B4016677

Cover strip M / L
Producto añadido a su lista

off-white RAL 9002
B4116116 Front panel MH

B4116116

Front panel MH Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

B4116116

Front panel MH
Producto añadido a su lista

matt anodised
128x209x2mm

Accessory "wall/holder"

B4116147 Wall suspension element M

B4116147

Wall suspension element M Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

B4116147

Wall suspension element M
Producto añadido a su lista

galvanized
214x126x12mm

Customising options for B4016217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: cover / cover convex and closed lid
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Anchura
168 mm
Profundidad
272 mm
Altura
101 mm
PCB length, base
255 mm
PCB width, base
124 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
460 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
