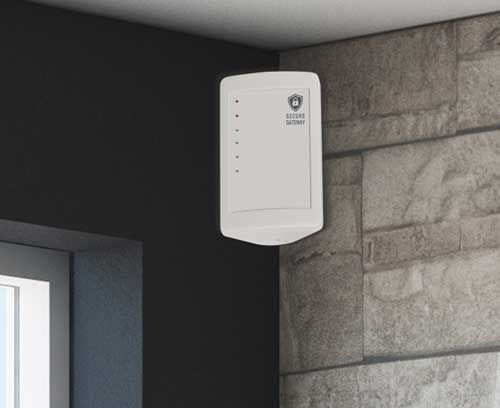

Cajas perfectas para las esquinas

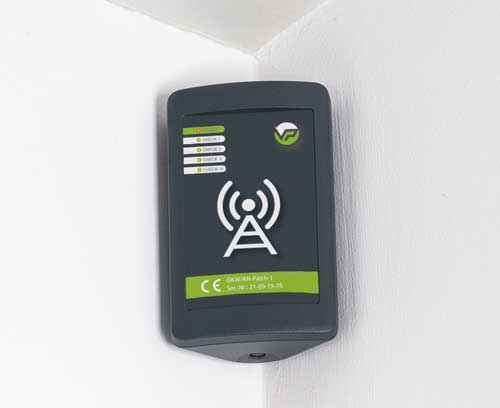

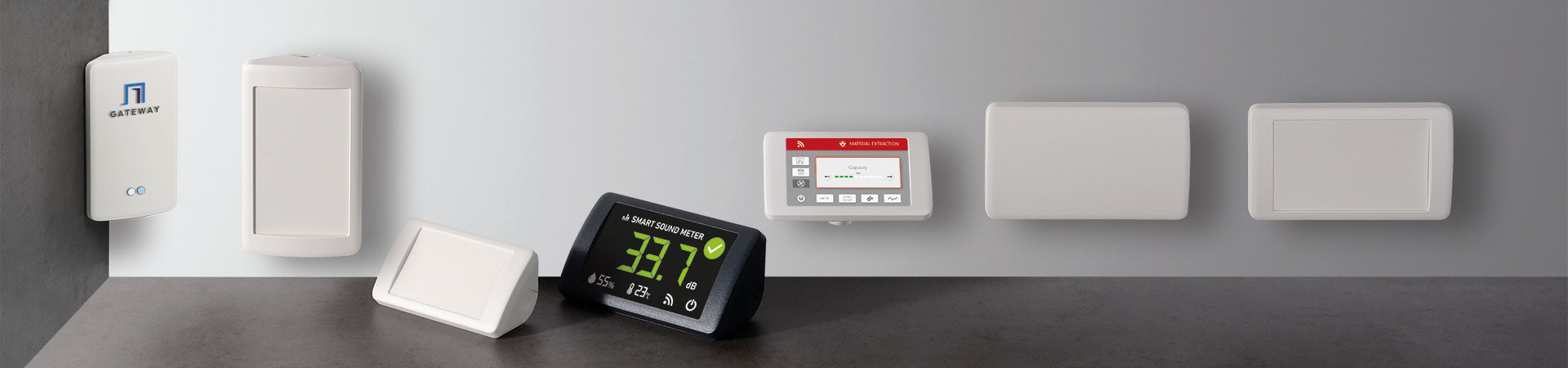

SMART-CONTROL es la primera caja de fácil montaje en esquinas normales. Además, esta serie de cajas puede utilizarse en aplicaciones de pared y sobremesa con una inclinación ergonómica.

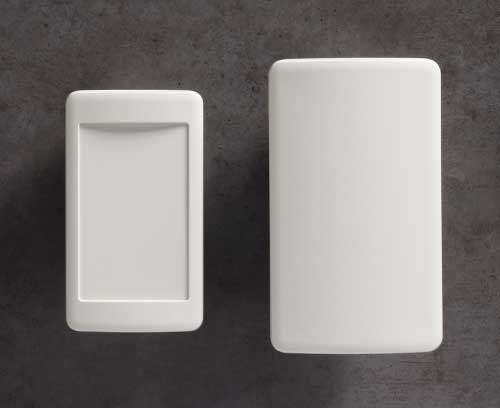

- Dos tamaños: M y S

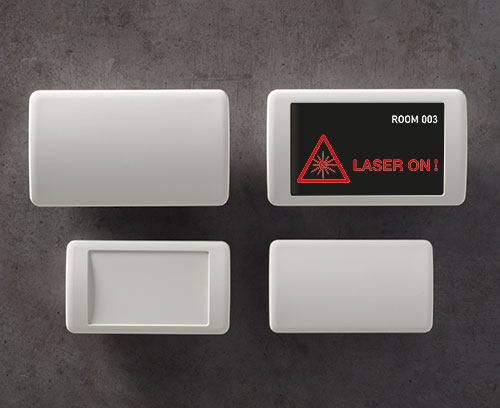

- Modelo convexo o modelo con superficie rebajada para teclados de membrana
- Material ASA+PC-FR de calidad con elevada protección contra los rayos ultravioleta en el color estándar blanco grisáceo (RAL 9002)
- Se atornilla por la parte posterior de la caja con tornillos de acero inoxidable con par Torx

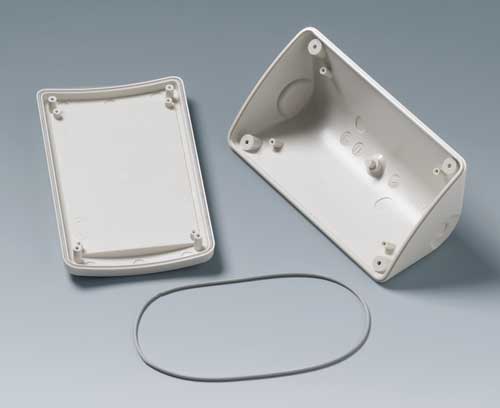

- Junta opcional (accesorio) para IP 55

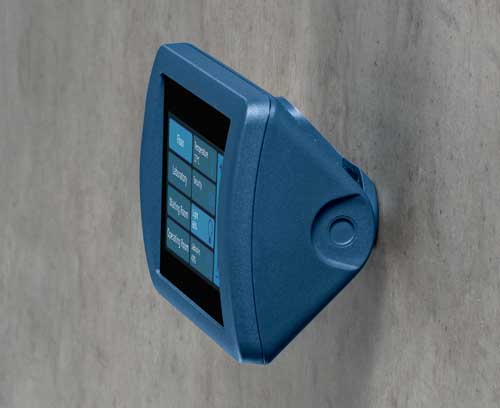

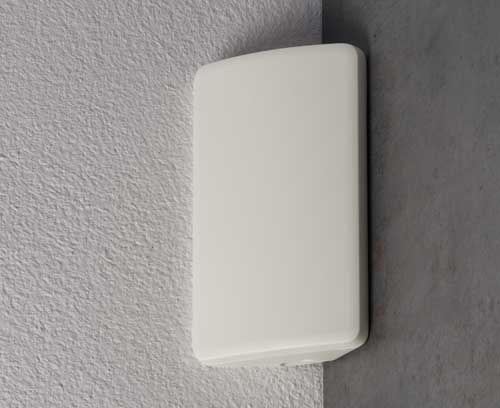

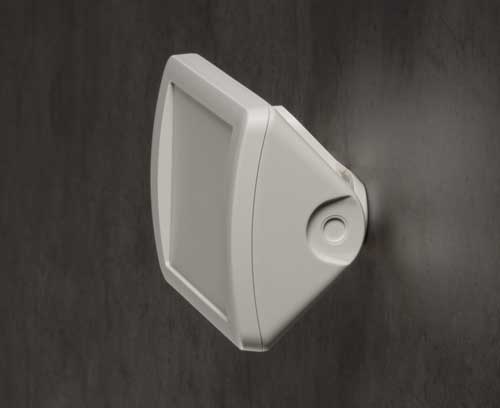

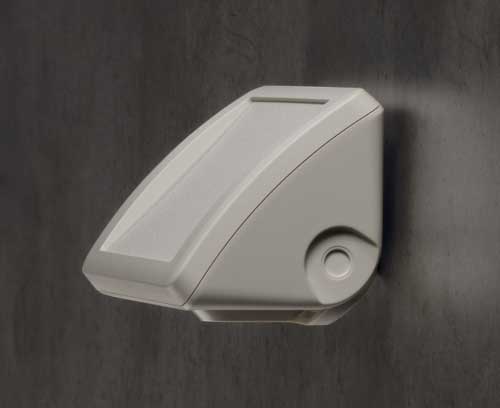

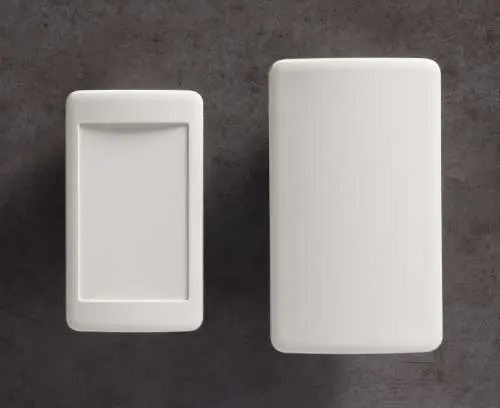

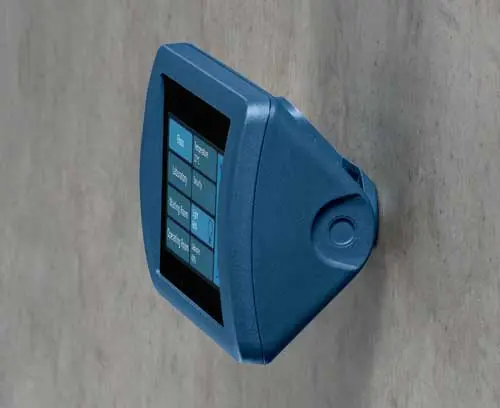

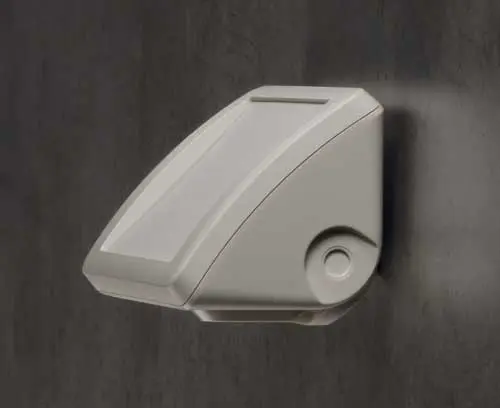

- Soporte especial de pared (accesorio) para montar la caja en esquinas de 90° o en superficies planas

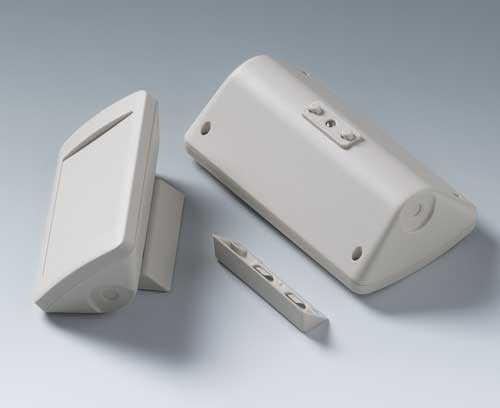

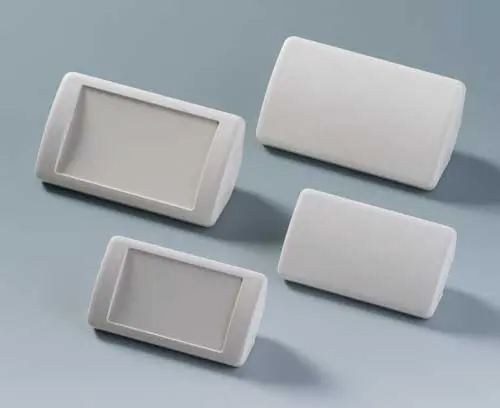

- El juego de soporte de sobremesa (accesorio) permite un apoyo seguro sobre la mesa en caso de orientación horizontal y un ángulo de lectura ergonómico de 45°
- Un nivel de placas de circuito impreso en las partes superior e inferior
Application Fields

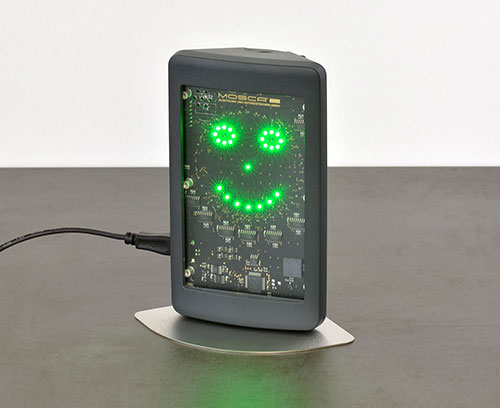

Instrumentos de seguridad y vigilancia, tecnologías medioambientales, internet de las cosas / internet industrial de las cosas, puertas de enlace, tecnologías de medición y control, tecnologias sensores, tecnologías de regulación, tecnologías de medicina y laboratorio, ecc.

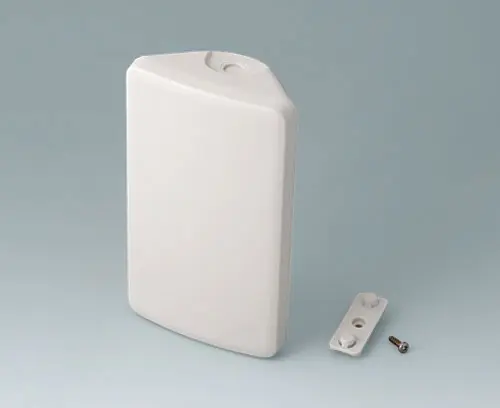

B4608107
SMART-CONTROL S, Vers. I
Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top without recessed operating area

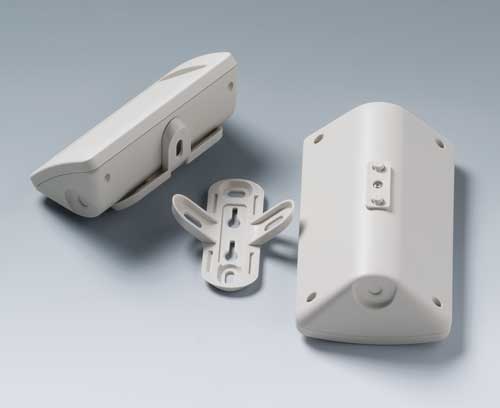

Supply Top and bottom parts, assembly kit incl. universal adapter
B4608107
SMART-CONTROL S, Vers. IProducto añadido a su lista
off-white RAL 9002
142x81x46mm
,

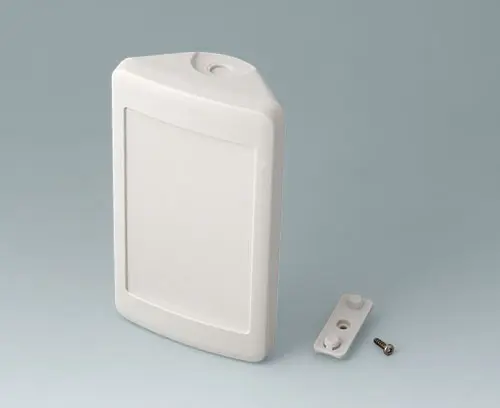

B4608207
SMART-CONTROL S, Vers. II
Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top with recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4608207
SMART-CONTROL S, Vers. IIProducto añadido a su lista
off-white RAL 9002
142x81x46mm
,
B4610107

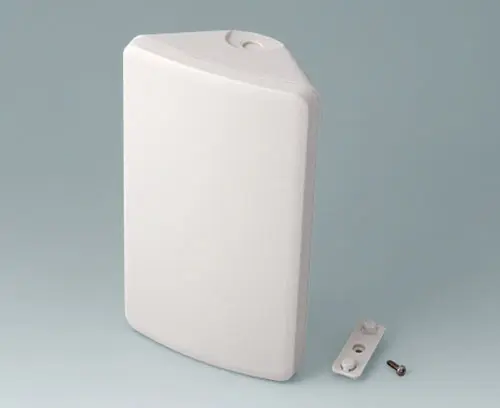

SMART-CONTROL M, Vers. I
Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top without recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4610107
SMART-CONTROL M, Vers. IProducto añadido a su lista
off-white RAL 9002
173x101x59mm
,
B4610207

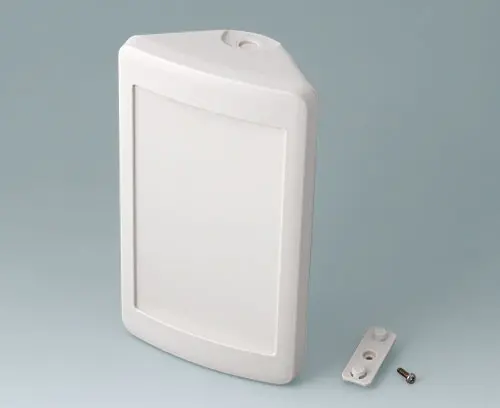

SMART-CONTROL M, Vers. II
Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top with recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4610207
SMART-CONTROL M, Vers. IIProducto añadido a su lista
off-white RAL 9002
173x101x59mm
,
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Producto añadido a su lista

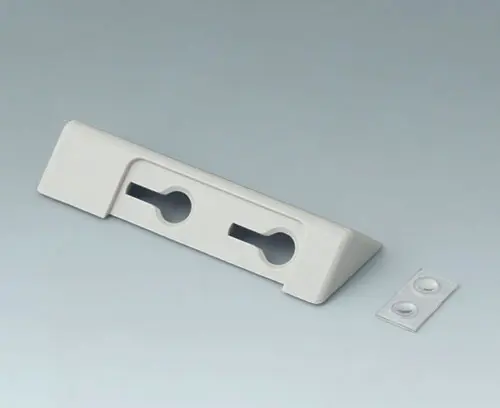

B4705207
Desktop stand set
For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 desktop stand set incl. 2 self-adhesive rubber feet
B4705207
Desktop stand setProducto añadido a su lista
B4705907

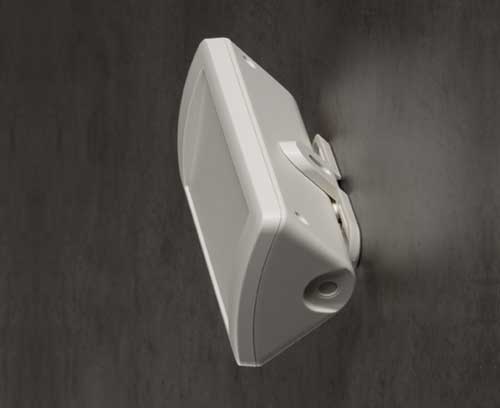

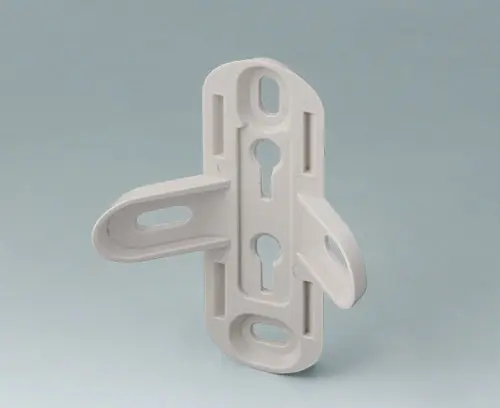

Wall suspension element
This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 wall suspension element
B4705907
Wall suspension elementProducto añadido a su lista
B4708920

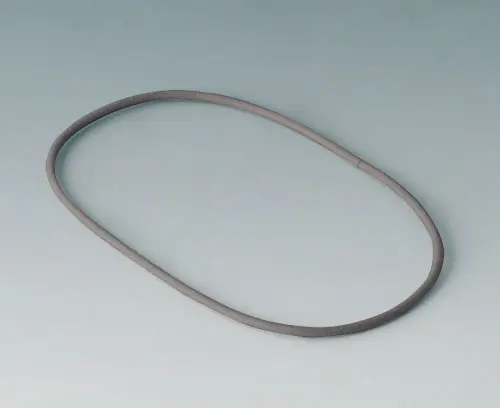

Seal S
Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4708920
Seal SProducto añadido a su lista
B4710920

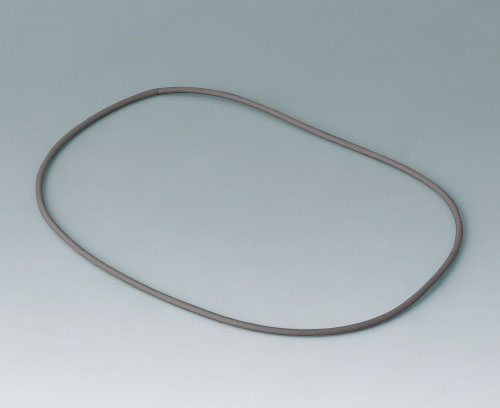

Seal M
Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4710920
Seal MProducto añadido a su lista

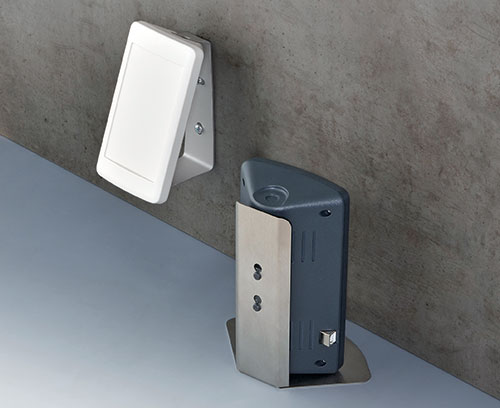

Opciones de productos para Smart-Control

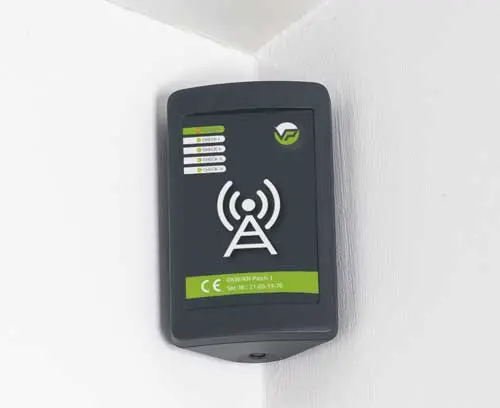

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
