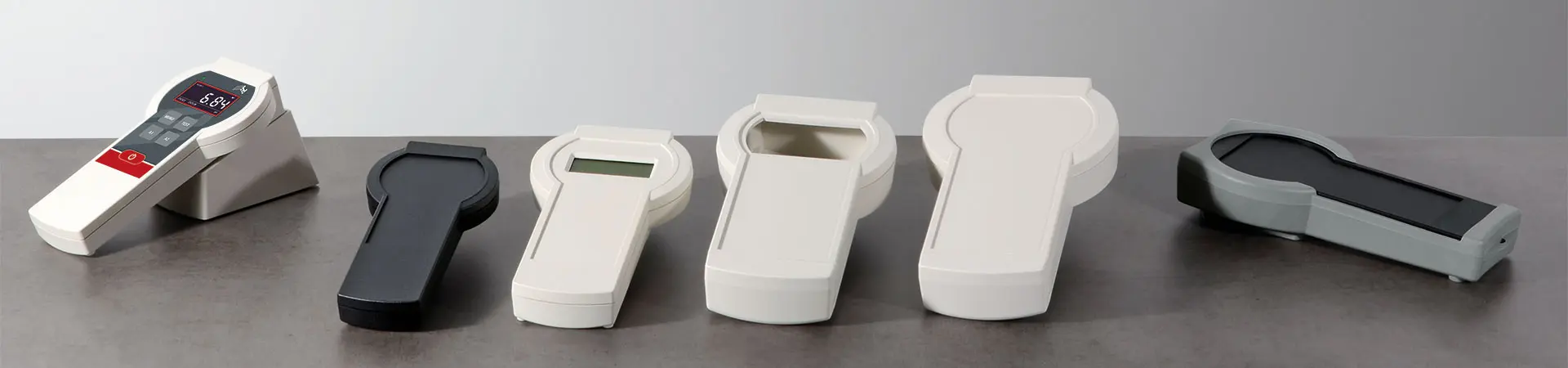

Datec-Control

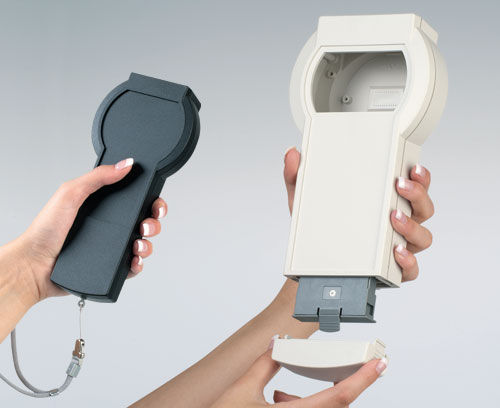

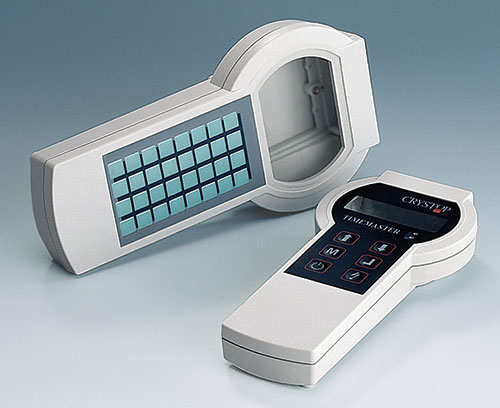

Caja de mano para dispalys de gran tamaño

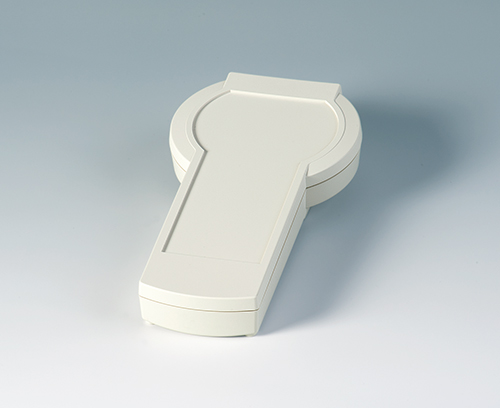

Las cajas ergonómicas DATEC-CONTROL tiene una amplia sección frontal que facilita la incorporación de módulos displays más grandes y con más capacidad gráfica para mayor comodidad del usuario.

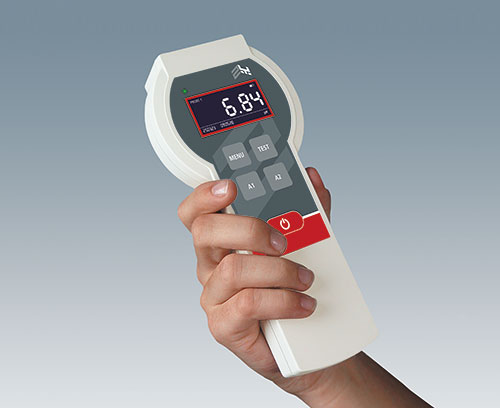

  • Incorporación de visores gráficos y LCDs estandarizados.
  • Especialmente fácil de usar gracias a la empuñadura estrecha.

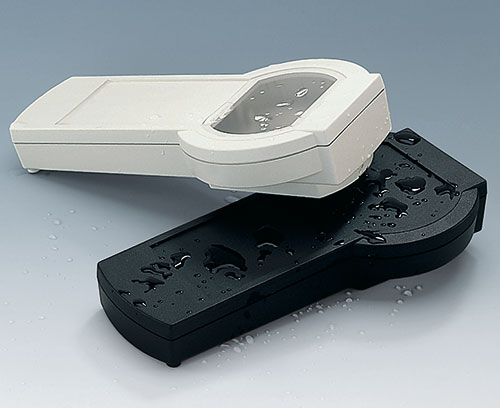

  • Elevada categoría de protección: IP 65 (XS, S) o IP 54 (M, L) al utilizar los kits de juntas de sellado junto con los protectores de pantalla.

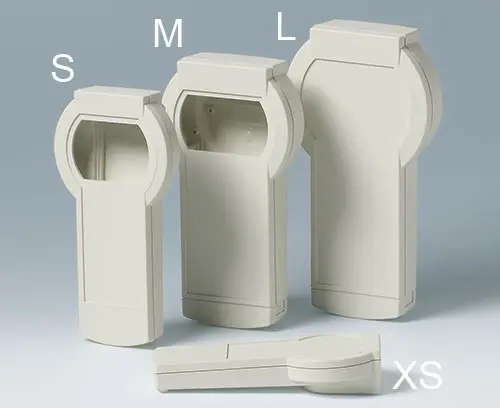

  • 4 tamaños, cada uno en 2 colores:

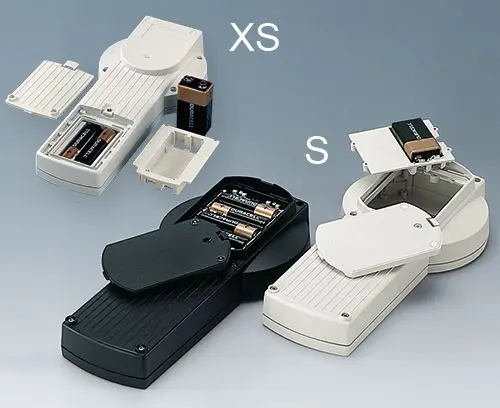

  • DATEC-CONTROL XS
    con/sin compartimiento para pilas atornillado 2 x AA / 3 x AA / 1 x 9 V; tapa del compartimiento para pilas enclaustrable o atornillable de forma opcional; base para aplicaciones de sobremesa.
  • DATEC-CONTROL S
    con/sin compartimiento para pilas atornillado 4 x AA / 1 x 9 V; tapa del compartimiento para pilas enclaustrable o atornillable de forma opcional; base para aplicaciones de sobremesa.

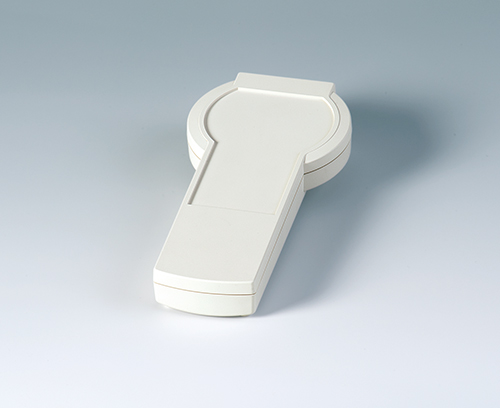

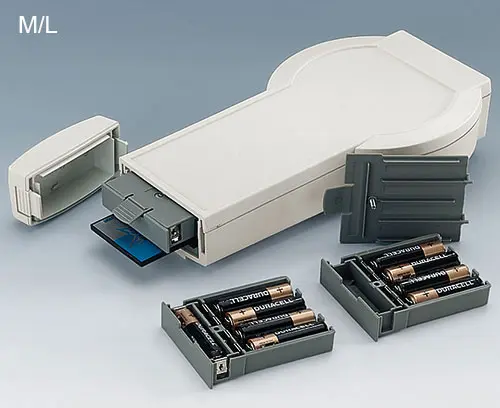

  • DATEC-CONTROL M, L

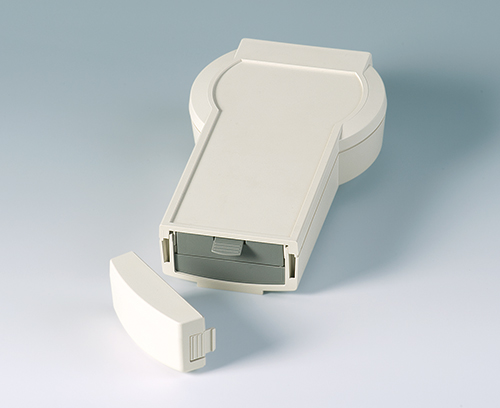

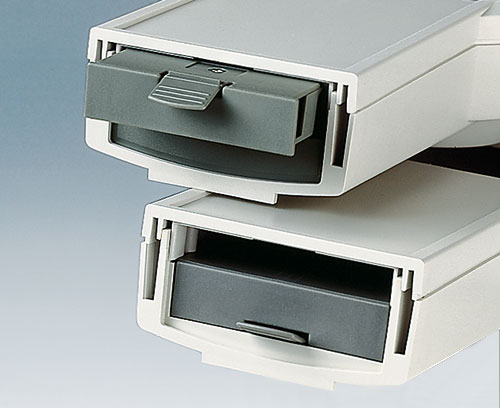

    con/sin compartimiento para pilas intercambiable de hasta 5 x AA; espacio para tarjetas PCMCIA; base para sobremesa o montaje a pared con toma de carga y/o transmisión de datos.

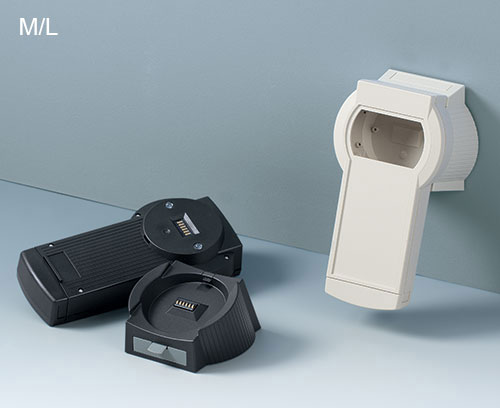

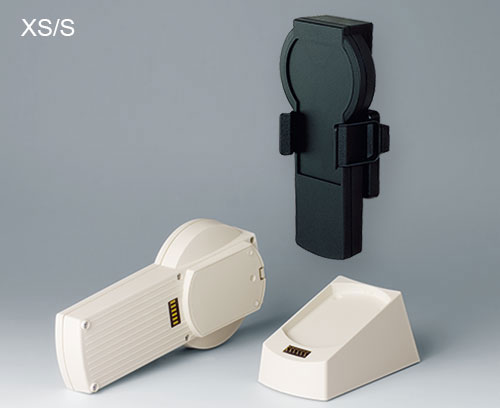

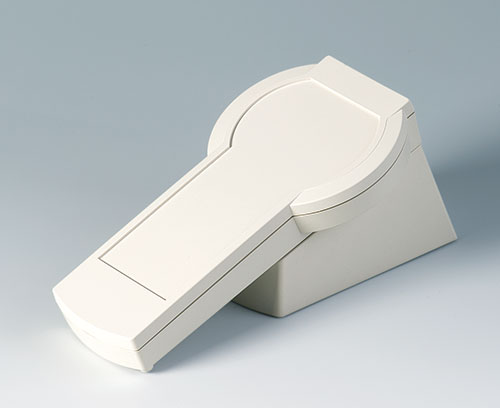

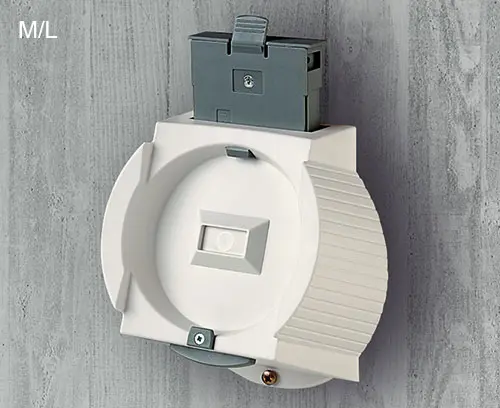

  • Transmisión de datos y recarga sencilla, base y contactos disponibles como accesorios.

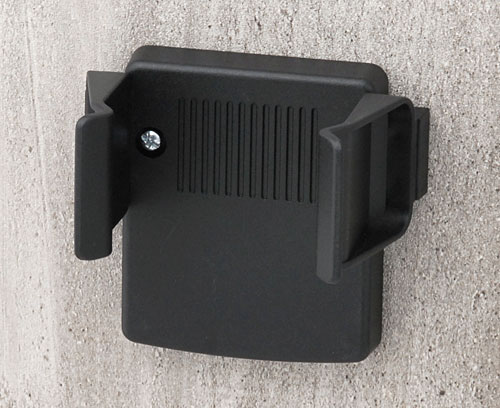

  • Juego de soporte de pared para almacenamiento seguro (accesorio).

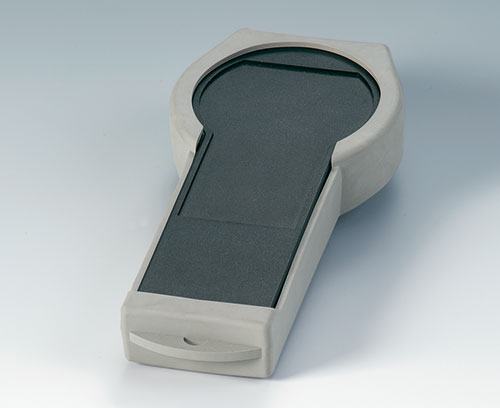

  • Los protectores absorben los golpes y protegen las superficies (accesorio); tamaños M y L con bandolera adicional.

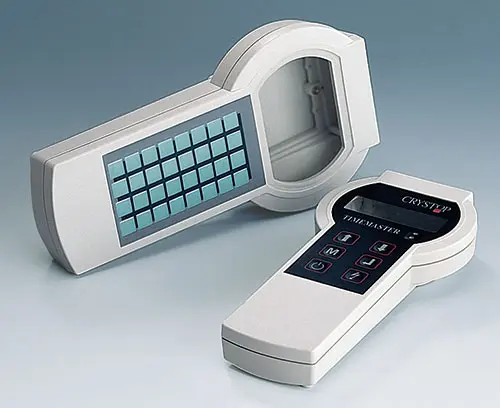

  • Panel de control rebajado para proteger el teclado de membrana.
  • Cabezales de fijación para placas de circuito impreso y piezas de montaje.
Crear PDF

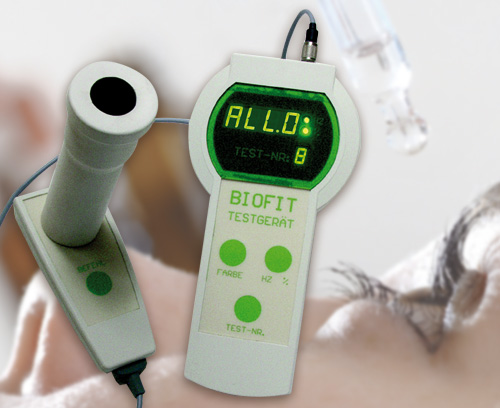

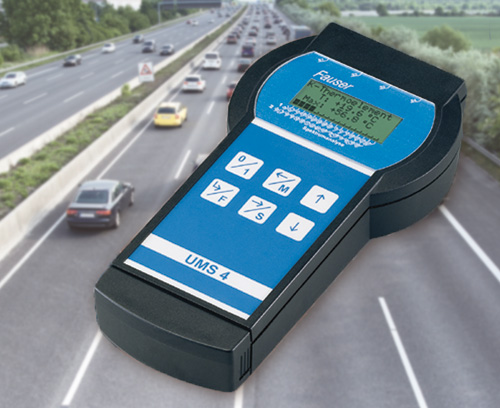

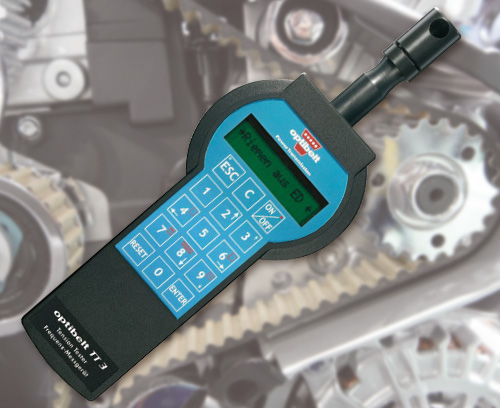

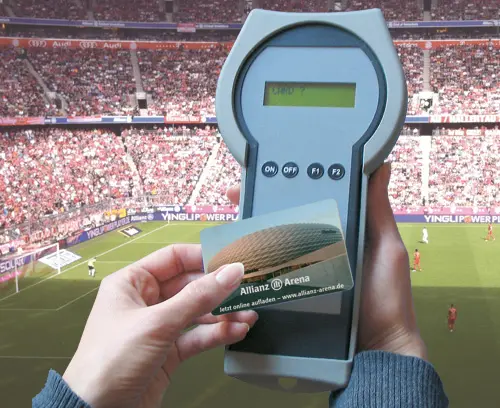

  • Ejemplos de aplicación

Application fields

  • Recopilación y transmisión móvil de datos a través de módem, ISDN o infrarrojos
  • Tecnologías de medición y regulación
  • Tecnologías de control digital
  • Construcción de maquinaria e instalaciones
  • Smart Factory
  • Industrie 4.0
  • Versiones
  • Accesorios

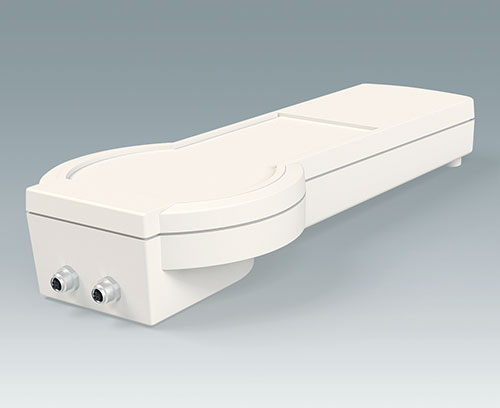

  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Cerrar

A9100002

Ring eyelet
Producto añadido a su lista
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Cerrar

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista
Steel
tin-plated
A9176001 Display window XS

A9176001

Display window XS The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Cerrar

A9176001

Display window XS
Producto añadido a su lista
Acrylic glass
clear
A9176006 Sealing kit XS

A9176006

Sealing kit XS Application: for increasing the protection class, of DATEC-CONTROL XS.

Supply 1 sealing kit

Cerrar

A9176006

Sealing kit XS
Producto añadido a su lista
A9176007 Set of battery clips, 2 x AA

A9176007

Set of battery clips, 2 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer

Cerrar

A9176007

Set of battery clips, 2 x AA
Producto añadido a su lista
Steel
nickel-plated
A9176008 Set of battery clips, 3 x AA

A9176008

Set of battery clips, 3 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 1 set incl. 1 self-adhesive battery spacer

Cerrar

A9176008

Set of battery clips, 3 x AA
Producto añadido a su lista
Steel
nickel-plated
A9176108 Protector XS

A9176108

Protector XS Special protector for DATEC-CONTROL XS. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Cerrar

A9176108

Protector XS
Producto añadido a su lista
SBS (TPE)
volcano
A9176128 Battery compartment XS, 2 x AA or 1 x 9V

A9176128

Battery compartment XS, 2 x AA or 1 x 9V Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

Cerrar

A9176128

Battery compartment XS, 2 x AA or 1 x 9V
Producto añadido a su lista
ABS (UL 94 HB)
A9176137 Station XS

A9176137

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9176137

Station XS
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9176139 Station XS

A9176139

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9176139

Station XS
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9176158 Battery compartment XS, 3 x AA

A9176158

Battery compartment XS, 3 x AA Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

Cerrar

A9176158

Battery compartment XS, 3 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9177001 Display window S

A9177001

Display window S The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Cerrar

A9177001

Display window S
Producto añadido a su lista
Acrylic glass
clear
A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

Cerrar

A9177006

Sealing kit S
Producto añadido a su lista
A9177008 Protector S

A9177008

Protector S Special protector for DATEC-CONTROL S. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Cerrar

A9177008

Protector S
Producto añadido a su lista
SBS (TPE)
volcano
A9177137 Station S

A9177137

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9177137

Station S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9177139 Station S

A9177139

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9177139

Station S
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9177310

Battery compartment, 1 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)

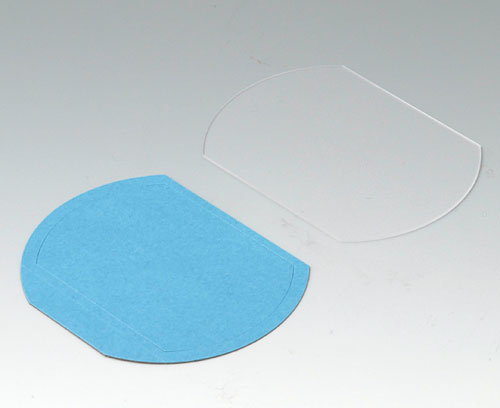

A9178001 Display window M

A9178001

Display window M The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Cerrar

A9178001

Display window M
Producto añadido a su lista
Acrylic glass
clear
A9178006 Sealing kit M

A9178006

Sealing kit M Application: for increasing the protection class, of DATEC-CONTROL M.

Supply 1 sealing kit

Cerrar

A9178006

Sealing kit M
Producto añadido a su lista
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178007

Contacts, male
Producto añadido a su lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178008

Contacts, female
Producto añadido a su lista
gold-plated
A9178108 Protector M

A9178108

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

Cerrar

A9178108

Protector M
Producto añadido a su lista
SBS (TPE)
volcano
A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

Cerrar

A9178118

Battery compartment holder
Producto añadido a su lista
PC
volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Cerrar

A9178128

Battery compartment, M/L, 4 x AA
Producto añadido a su lista
PC
volcano
A9178137 Station, Vers. I

A9178137

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9178137

Station, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9178139 Station, Vers. I

A9178139

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9178139

Station, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Cerrar

A9178158

Battery compartment, M/L, 5 x AA
Producto añadido a su lista
PC
volcano
A9178167 Station, Vers. II

A9178167

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

Cerrar

A9178167

Station, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9178169 Station, Vers. II

A9178169

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

Cerrar

A9178169

Station, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005

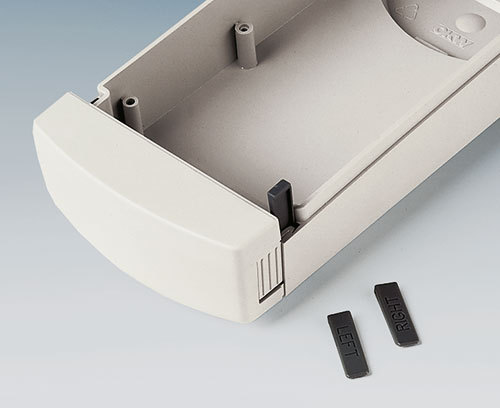

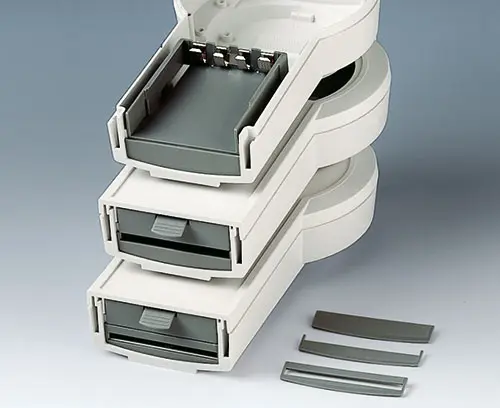

A9178178 End plate for electronic area, Vers. I

A9178178

End plate for electronic area, Vers. I Simply inserted into the guides in the bottom part.

Version To close the electronic area

Supply 1 end plate for electronic area

Cerrar

A9178178

End plate for electronic area, Vers. I
Producto añadido a su lista
PC
volcano

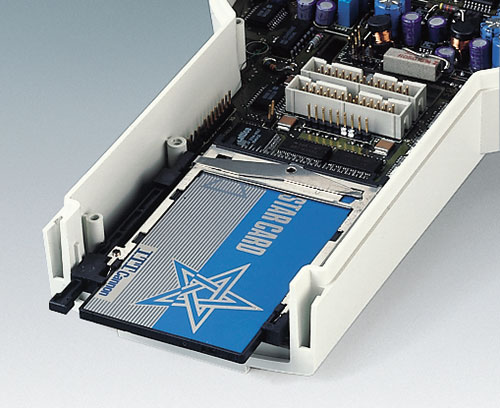

A9178188 End plate for electronic area, Vers. II

A9178188

End plate for electronic area, Vers. II Simply inserted into the guides in the bottom part.

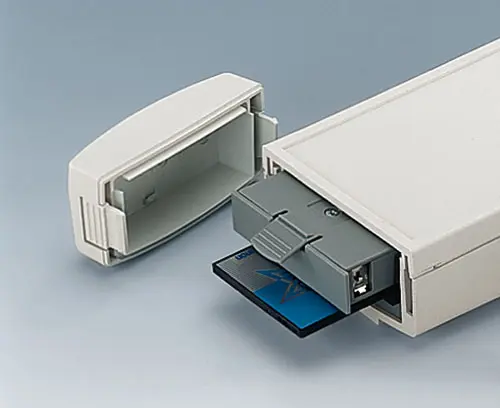

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

Cerrar

A9178188

End plate for electronic area, Vers. II
Producto añadido a su lista
PC
volcano
A9178198 End plate for electronic area, Vers. III

A9178198

End plate for electronic area, Vers. III Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

Cerrar

A9178198

End plate for electronic area, Vers. III
Producto añadido a su lista
PC
volcano

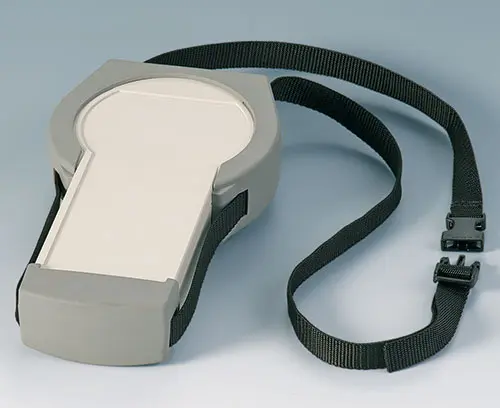

A9178208 Protector M

A9178208

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version With shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle)

Supply 1 protector, 1 shoulder strap

Cerrar

A9178208

Protector M
Producto añadido a su lista
SBS (TPE)
volcano
A9179001 Display window L

A9179001

Display window L The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Cerrar

A9179001

Display window L
Producto añadido a su lista
Acrylic glass
clear
A9179006 Sealing kit L

A9179006

Sealing kit L Application: for increasing the protection class, of DATEC-CONTROL L.

Supply 1 sealing kit

Cerrar

A9179006

Sealing kit L
Producto añadido a su lista
A9179108 Protector L

A9179108

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

Cerrar

A9179108

Protector L
Producto añadido a su lista
SBS (TPE)
volcano
A9179208 Protector L

A9179208

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version with shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle).

Supply 1 protector, 1 shoulder strap

Cerrar

A9179208

Protector L
Producto añadido a su lista
SEBS (TPE)
volcano
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Cerrar

A9199005

Strain relief
Producto añadido a su lista
PA 6
volcano
A9226117 Wall suspension element

A9226117

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226117

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9226119 Wall suspension element

A9226119

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226119

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226227

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226229

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9226337 Wall suspension element

A9226337

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226337

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9226339 Wall suspension element

A9226339

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226339

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Cerrar

A9250250

Battery spacer
Producto añadido a su lista
PE foam
50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Cerrar

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

Opciones de productos para Datec-Control

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
