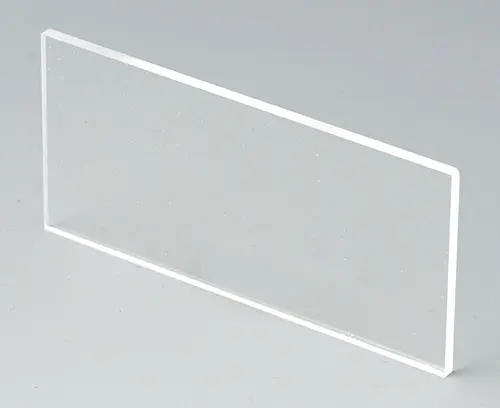

B6121331

Front panel

Front panel for DIN-MODULAR CASE 72 x 36.

Supply

1 front panel

  • Utilizado para
  • Modificaciones específicas del cliente
AltText

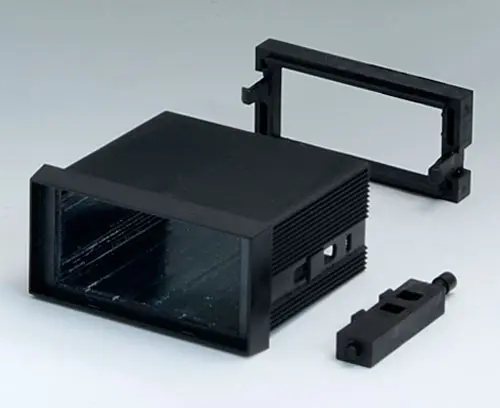

B6021011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6021011

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
72x36x57mm
AltText

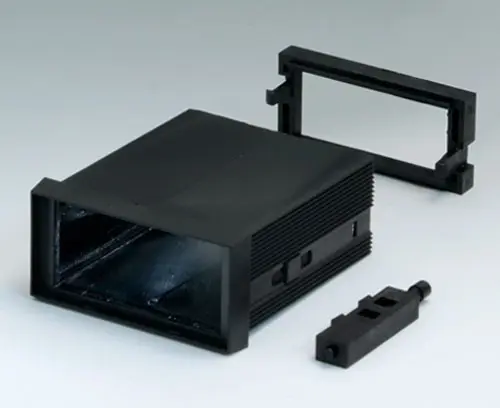

B6021021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61 554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6021021

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
72x36x75mm
AltText

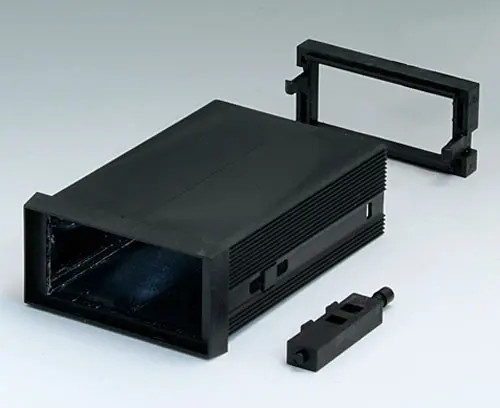

B6021031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Cerrar

B6021031

DIN-MODULAR CASE TYPE A
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
72x36x100mm

Customising options for B6121331

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Purchasing Data
Color
transparent
Width
67,7 mm
Height
31,6 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
