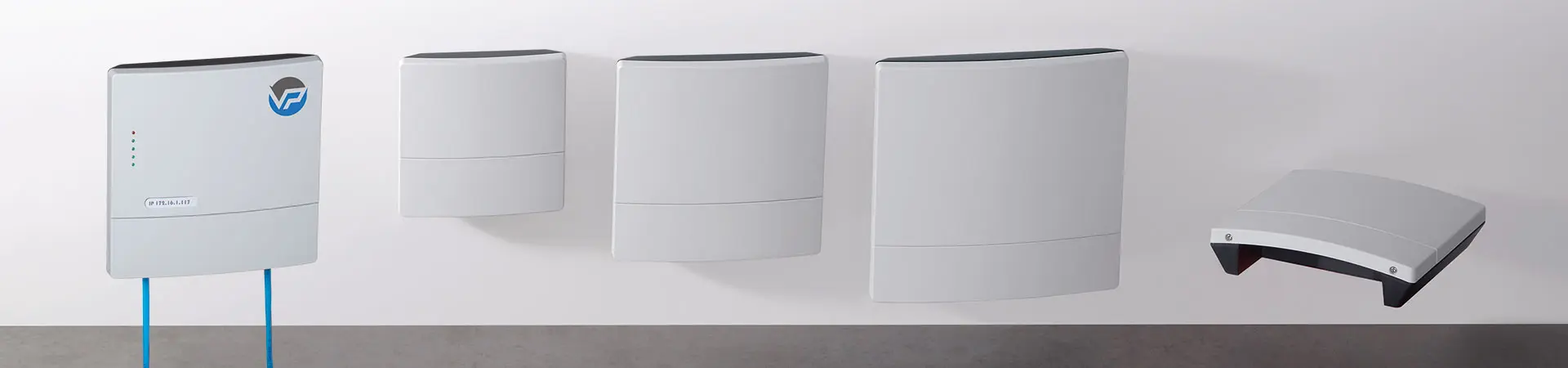

Net-Box 控制机盒
雅观的控制中心

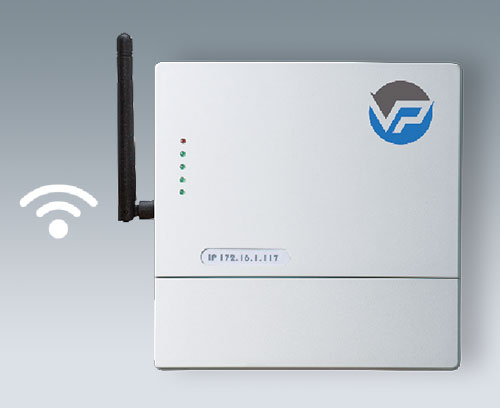

新型墙挂机盒系列 NET-BOX 控制机盒,提供一个新颖并令人注目的弧线形状。

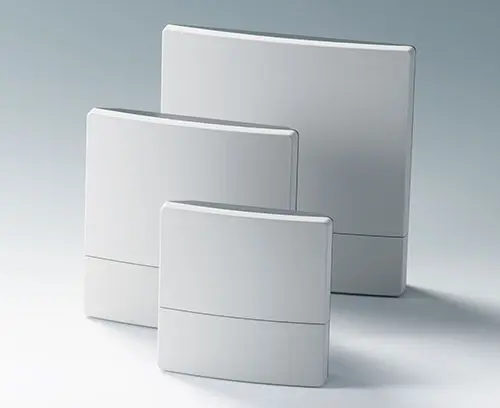

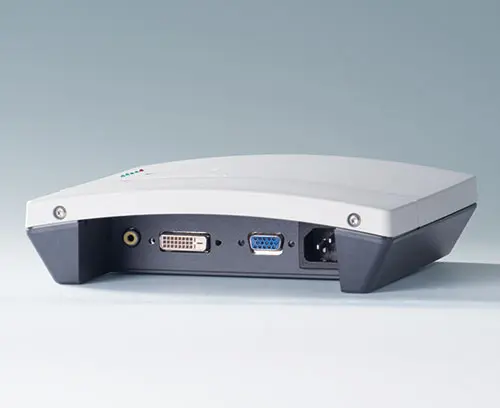

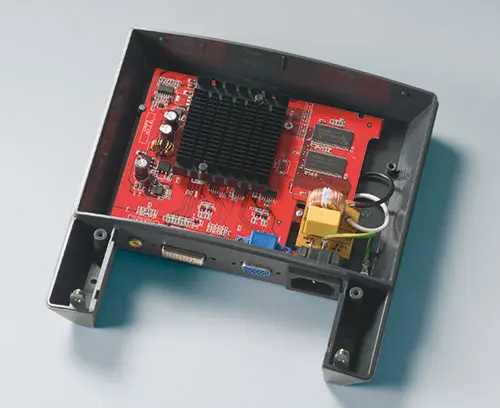

- 三种规格提供足够的空间用于安装电子产品和接口

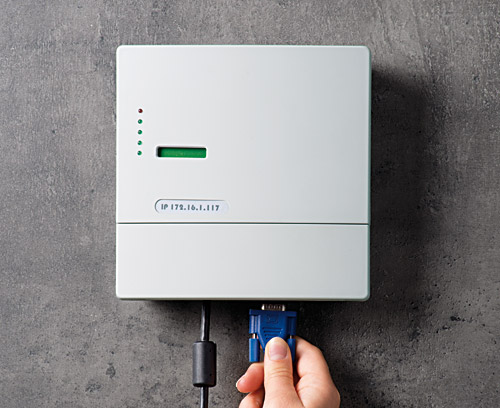

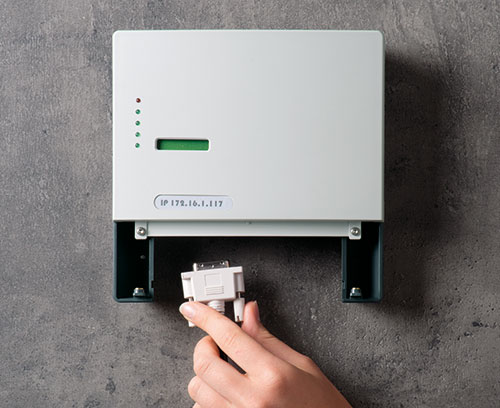

- 螺钉和插头连接隐避

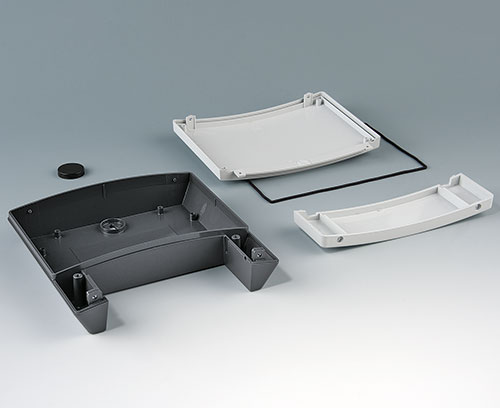

- 高质的 V0 材料和可选的保护等级为 IP 65 (密封套件作为附件)
- 可安装两个电路板的密封隔室

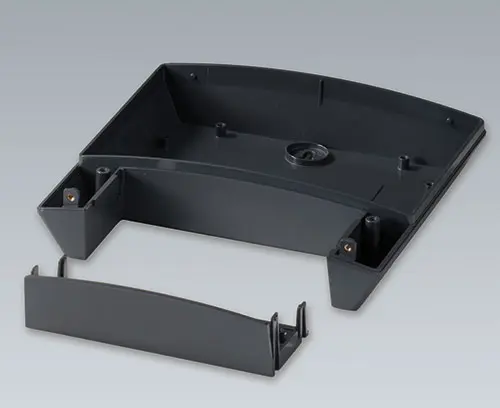

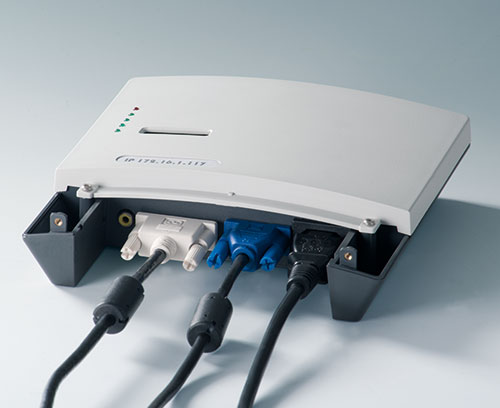

- 可选的向下盒盖使机盒密封,并允许再增加安装一个电路板

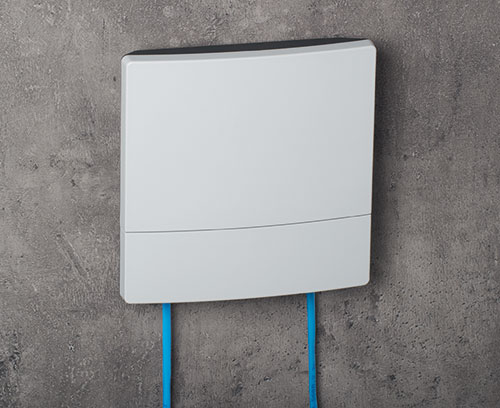

- 简单、平齐的三点式壁安装(通过位于下盒的开口同时具备了类型II所需特点)
- 梅花头不锈钢螺钉固定
- NET-BOX 控制机盒也可桌面使用(防滑脚作为附件)

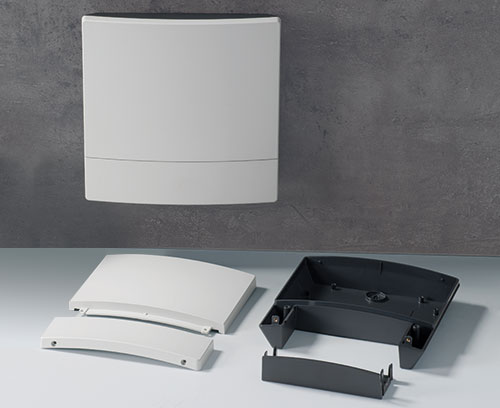

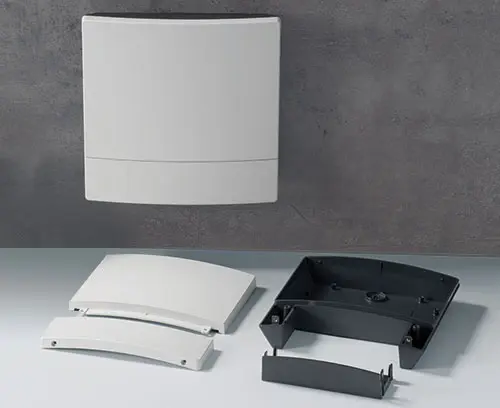

- 三部件组成的壳体包括底盒,上盒和盖板
应用范围

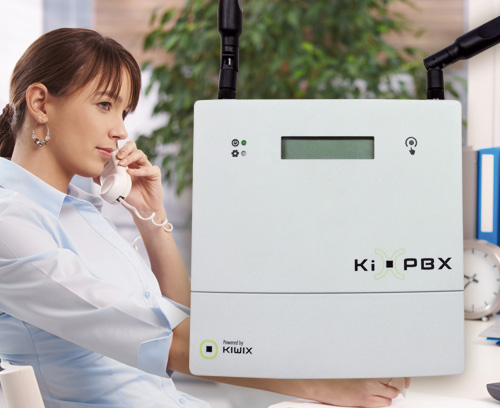

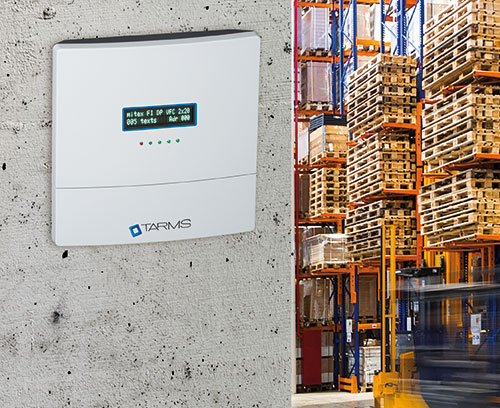

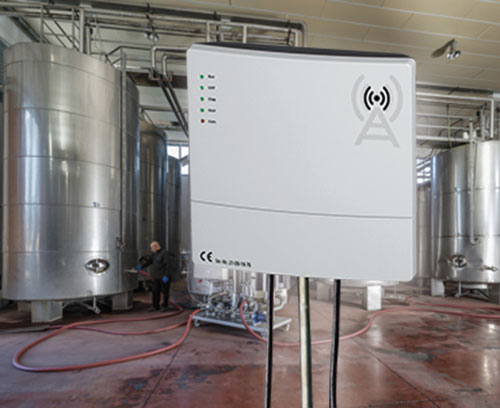

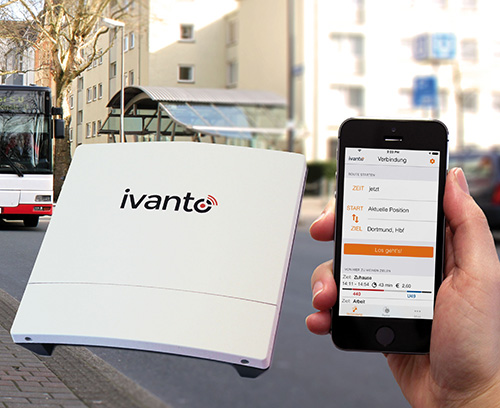

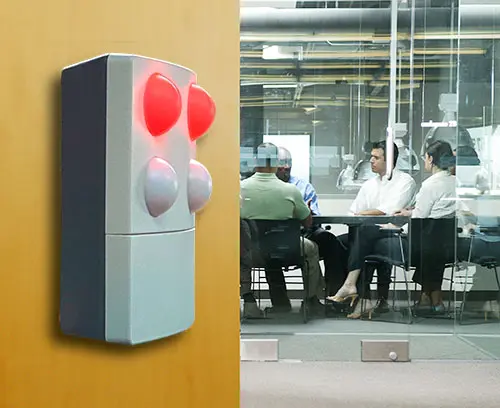

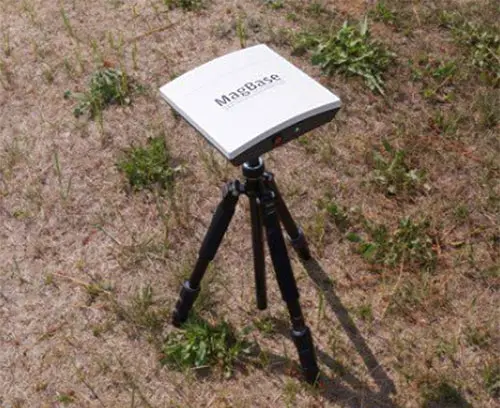

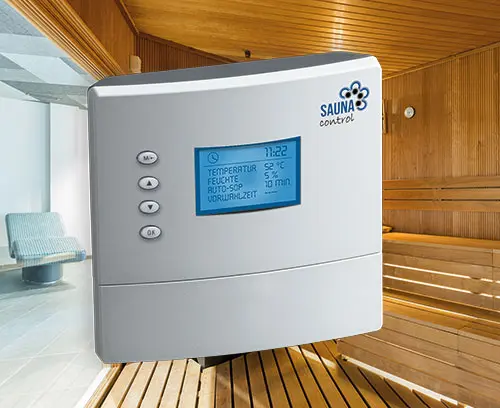

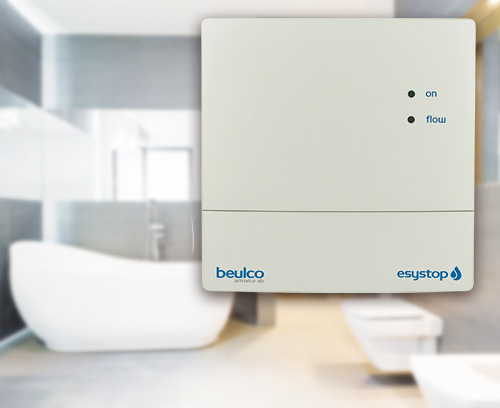

建筑技术领域。 控制中心。 IoT/IIoT。 Smart Factory。 Industry 4.0。 监控系统。 出入口控制。 数据收集系统。 电脑外设。 测量和控制技术。 医疗技术。
B3214101
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101

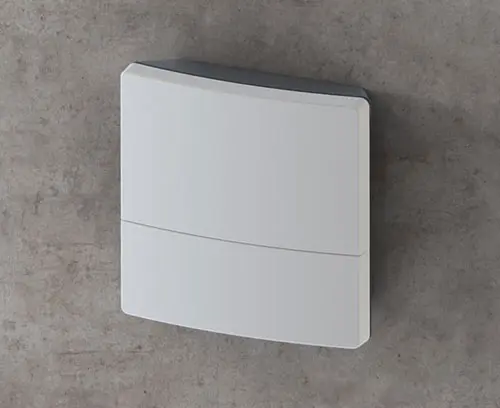

NET-BOX 140, Vers. Ilight grey RAL 7035
140x140x46.5mm
,
B3214201
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214201
NET-BOX 140, Vers. IIlight grey RAL 7035
140x140x46.5mm
B3218101
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. Ilight grey RAL 7035
180x180x48.5mm
,

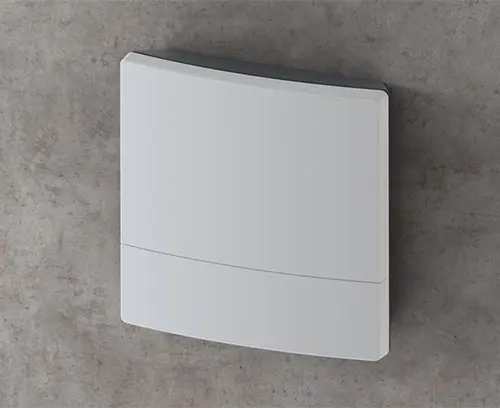

B3218201
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218201
NET-BOX 180, Vers. IIlight grey RAL 7035
180x180x48.5mm
B3222101
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. Ilight grey RAL 7035
220x220x50.5mm
,
B3222201
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222201
NET-BOX 220, Vers. IIlight grey RAL 7035
220x220x50.5mm
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmA9325018
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketanthracite grey RAL 7016
100x100x20mm

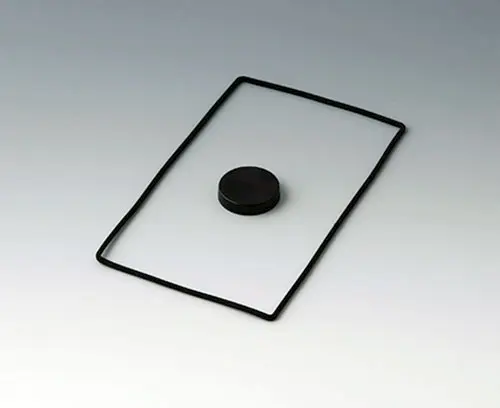

B3314159
Supply 1 sealing kit
B3314159
Sealing kit 140black

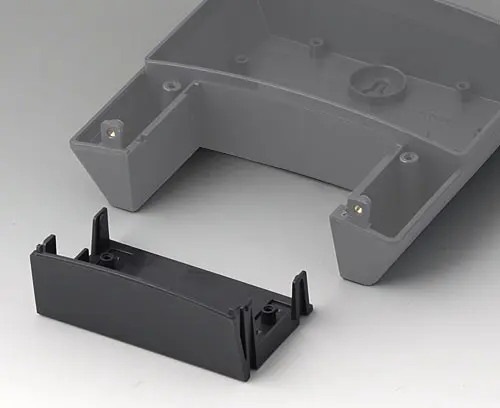

B3314918
Supply 1 infill cover
B3314918
Infill cover 140lava
B3318159
Supply 1 sealing kit
B3318159

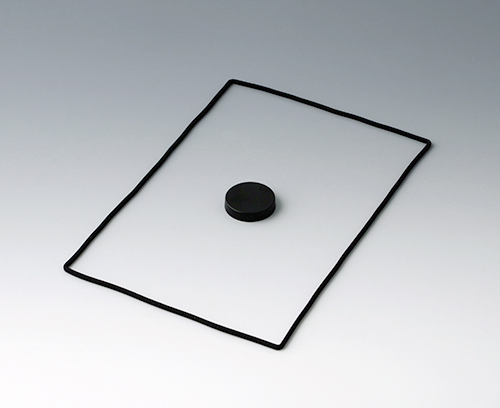

Sealing kit 180black
B3318918
Supply 1 infill cover
B3318918
Infill cover 180lava
B3322159
Supply 1 sealing kit
B3322159

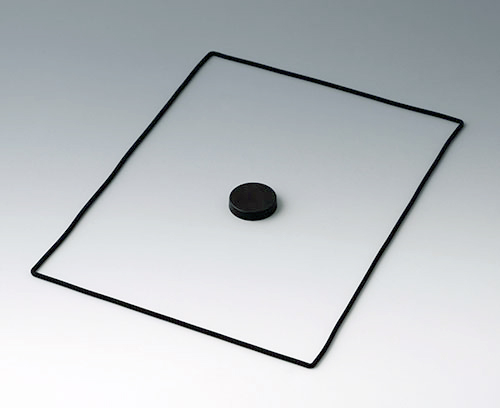

Sealing kit 220black
B3322918
Supply 1 infill cover
B3322918

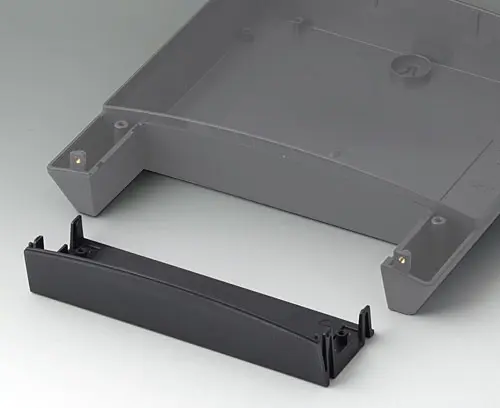

Infill cover 220lava
