B3222101 NET-BOX 220, Vers. I

B3222101

NET-BOX 220, Vers. I

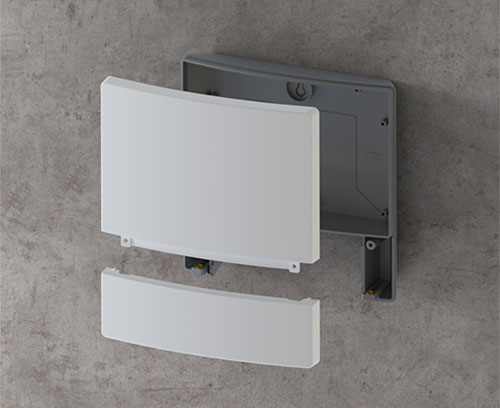

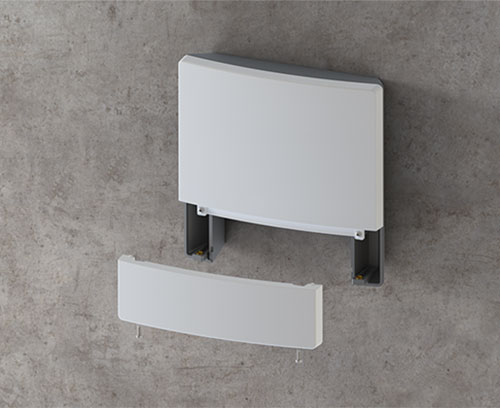

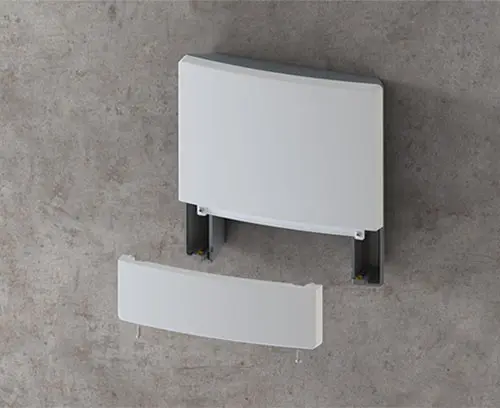

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version

Bottom part without openings.

Supply

1 bottom part and 1 top cover, 1 lid and 1 assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“保护等级” 附件

B3322159 Sealing kit 220

B3322159

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

关闭

B3322159

Sealing kit 220
产品已添加到关注清单中
Silicone
black

“螺钉” 附件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T10

Torx T10 screwdriver
产品已添加到关注清单中

附件

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9207150

Anti-slide feet 6.5 x 2 mm
产品已添加到关注清单中
transparent
B3322918 Infill cover 220

B3322918

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

关闭

B3322918

Infill cover 220
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava

Customising options for B3222101

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
防护等级
IP 65 opt.
Necessary accessories: sealing kit, IP 40
颜色
Top cover and lid light grey RAL 7035,
Bottom part lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
220 mm
Height
220 mm
Depth
50.5 mm
电路板长度,下盒
152 mm
电路板宽度,下盒
194 mm
电路板长度,上盒
154 mm
电路板宽度,上盒
208 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
437 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
