B3318918

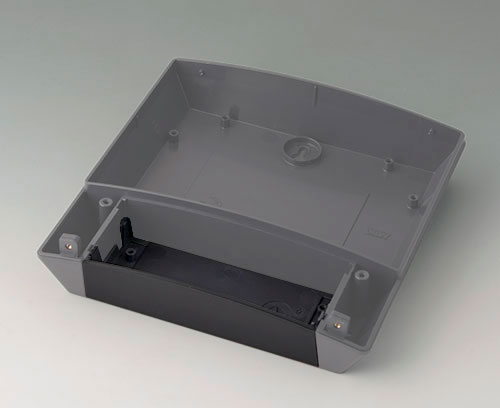

Infill cover 180

With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply

1 infill cover

请制作 PDF 数据表用于 B3318918

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

系统组件使产品完整

B3218101 NET-BOX 180, Vers. I

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3218101

NET-BOX 180, Vers. I
产品已添加到关注清单中

light grey RAL 7035
180x180x48.5mm
,
B3218201 NET-BOX 180, Vers. II

B3218201

NET-BOX 180, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3218201

NET-BOX 180, Vers. II
产品已添加到关注清单中

light grey RAL 7035
180x180x48.5mm

“螺钉” 附件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中

Customising options for B3318918

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
lava
标准根据
RoHS compliant
REACH compliant
电路板长度，下盒
44 mm
电路板宽度，下盒
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
37 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
