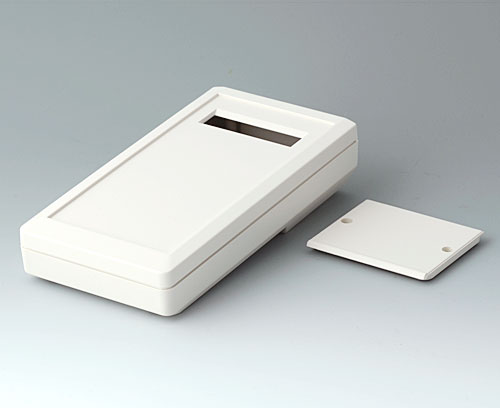

Datec-Mobil-Box 移动式手持盒
特坚固手持盒

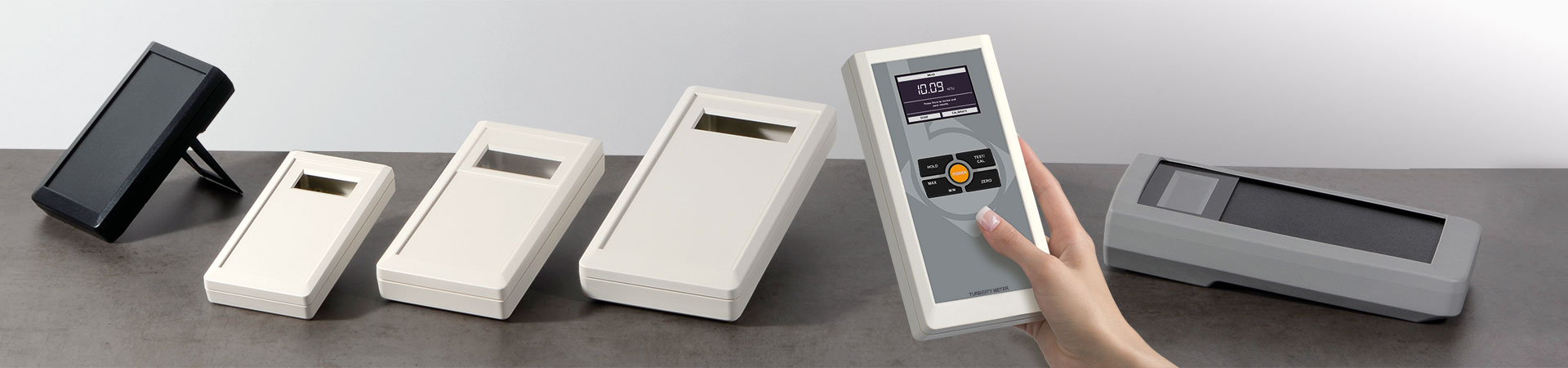

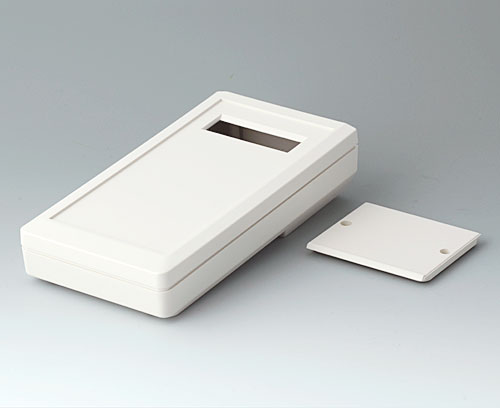

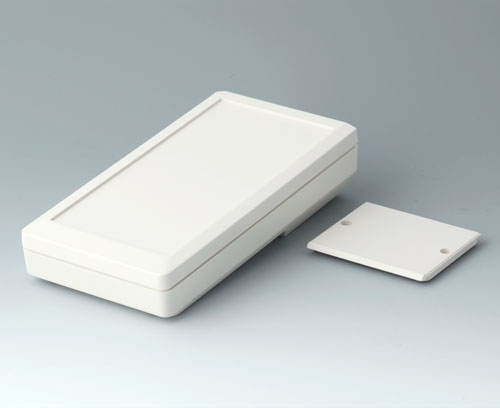

名称为 DATEC-MOBIL-BOX 移动式手持盒的系列机盒，是专门针对移动式数据采集技术领域开发的。

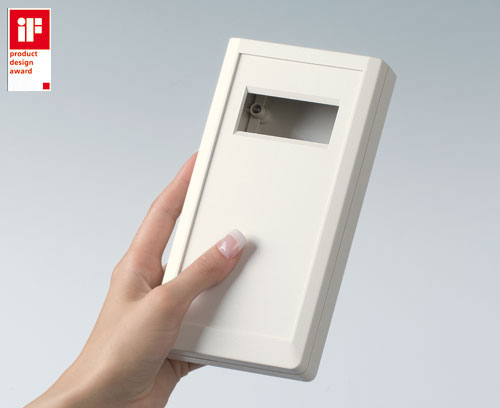

- 通过壳底符合人体工程学的花纹达到安全稳固的持握和操作
- 坚固性和密封性，防护等级达到 IP 65，密封件作为附件

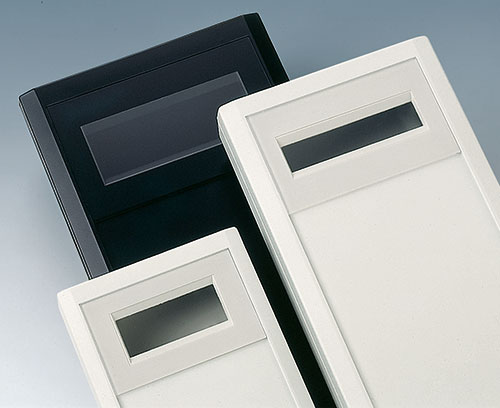

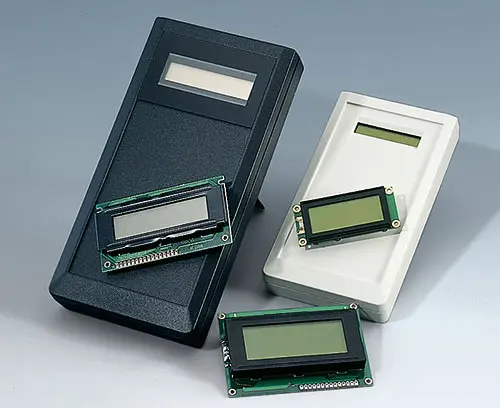

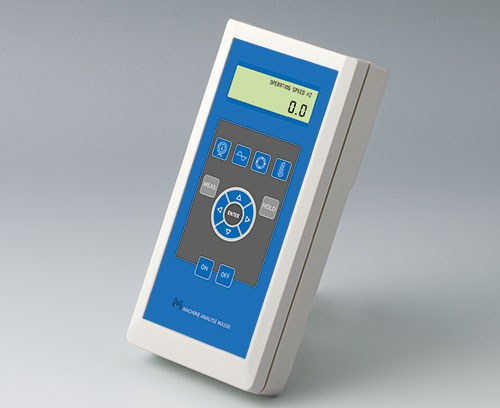

- 配备了标准化的液晶显示器; 显示窗口面板保护内设的显示模块，并保证在显示区域达到高的保护等级
- 具备用于接口连接的设置平面

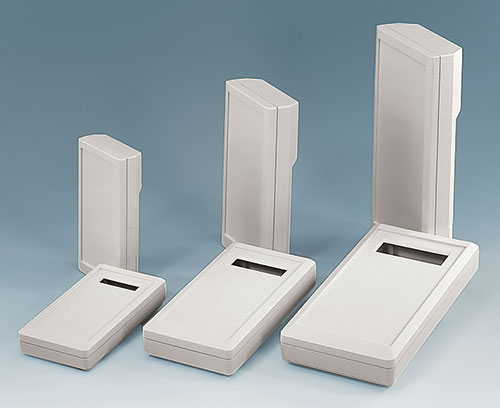

- 3 种规格，2 种颜色

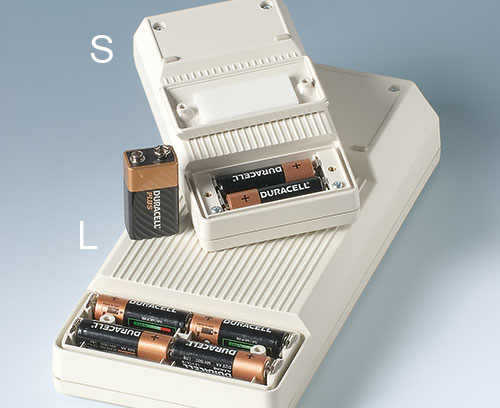

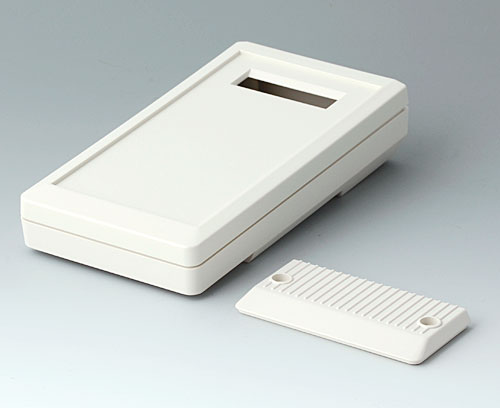

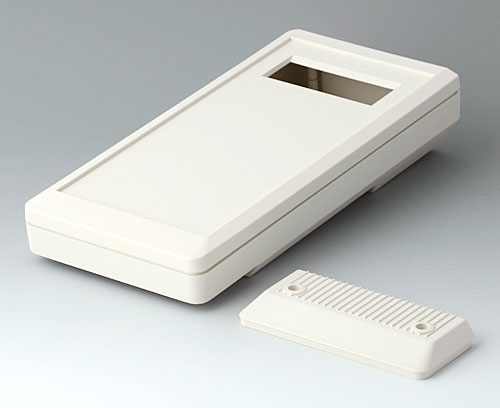

- DATEC-MOBIL-BOX 移动式手持盒， 规格 S 和 L 具备无/带电池盒

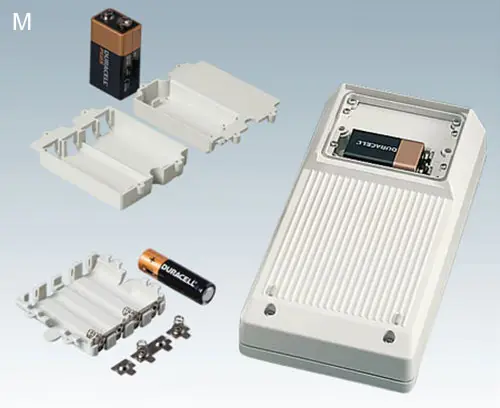

- DATEC-MOBIL-BOX 移动式手持盒， 规格 M 可以根据需要选择电池盒

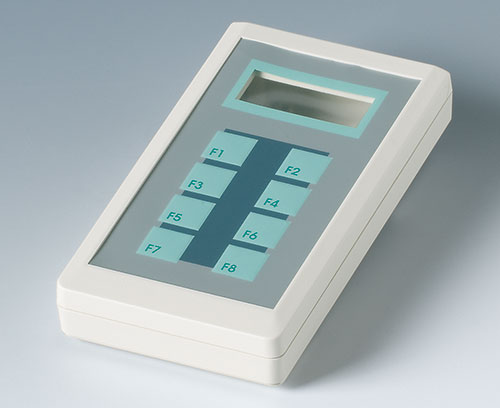

- 凹陷的操作区域以保护膜键盘
- 固定柱用于固定电路板和元器件，欧洲卡格式用于 L 规格

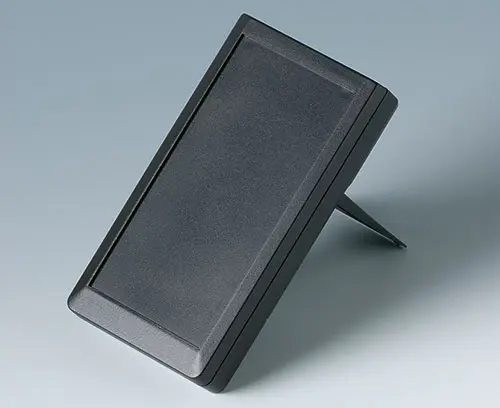

- 支座底架提供符合人体工程学的倾斜面（附件）
- 壁挂安装套件保证手持盒的安全放置（附件）
- 保护套用于防碰撞和保护表面（L 规格的附件）
设计师声明
“DATEC-MOBIL-BOX 移动式手持盒是一个真正的节省空间的神奇物。 如果同时观察 DATEC-POCKET-BOX 机盒系列，您将发现六种与市售组件相匹配的机盒尺寸选项，其内部的每个空间甚至每一个角落都可以有效地被利用。 这些移动机盒中的每一个都可以说是空间与功能的最佳结合，如标准显示器、标准操作面、标准接口界面和标准电源供给等功能。 就紧凑型和移动式机盒产品而言，这款机盒的设计可以说是无与伦比。”
摘自Martin Nußberger, polyform Industrie Design
应用范围

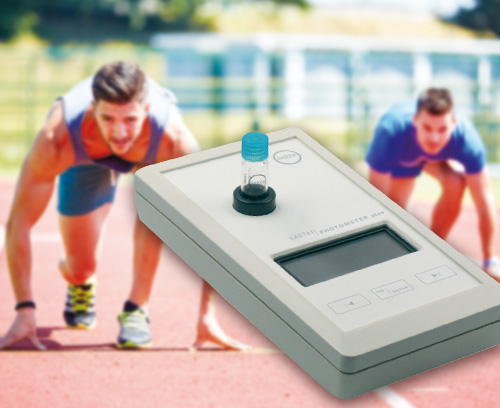

非常适合在恶劣的环境中使用。 移动式数据采集和传送。 测量和控制技术。 存储和销售物流。 数字控制技术。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)产品已添加到关注清单中
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)产品已添加到关注清单中
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)产品已添加到关注清单中
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyelet产品已添加到关注清单中
volcano
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)产品已添加到关注清单中
A9161002
Set of battery clips, 2 x 9 V or 4 x AA
For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.
Supply 4 single contacts
A9161002
Set of battery clips, 2 x 9 V or 4 x AA产品已添加到关注清单中
tin-plated
A9173001
Sealing kit S
Application: for increasing the protection class, of DATEC-MOBIL-BOX S.
Supply 2 sealings, 4 sealing rings
A9173001
Sealing kit S产品已添加到关注清单中
A9173007

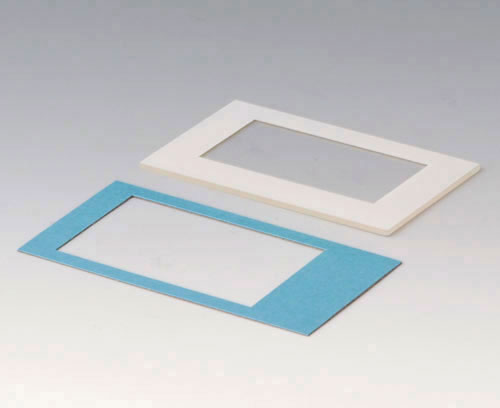

Display window S, border off-white
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.
Supply 1 display window, 1 adhesive foil
A9173007
Display window S, border off-white产品已添加到关注清单中
transparent
A9173009

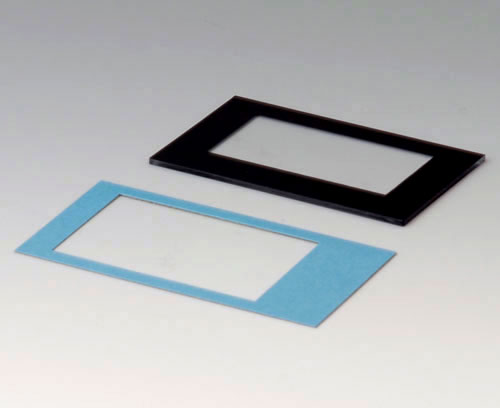

Display window S, border black
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.
Supply 1 display window, 1 adhesive foil
A9173009
Display window S, border black产品已添加到关注清单中
transparent
A9173010
9 V contact kit, 1 x 9 V
For 1 x 9 V flat battery (PP3), Offering polarity and torsion protection. Alternative to the traditional plug-in contact.
Supply 1 plug-in contact set
A9173010
9 V contact kit, 1 x 9 V产品已添加到关注清单中
A9173307

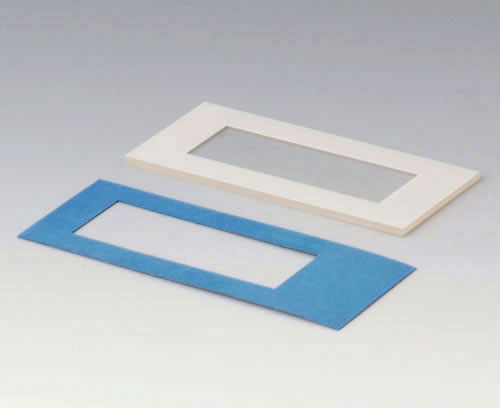

Display window S, border off-white
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.
Supply 1 display window, 1 adhesive foil
A9173307
Display window S, border off-white产品已添加到关注清单中
transparent

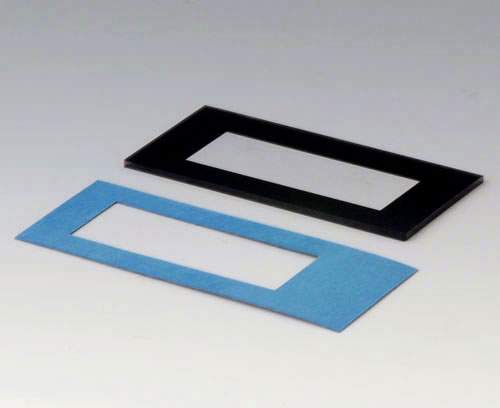

A9173309
Display window S, border black
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.
Supply 1 display window, 1 adhesive foil
A9173309
Display window S, border black产品已添加到关注清单中
transparent

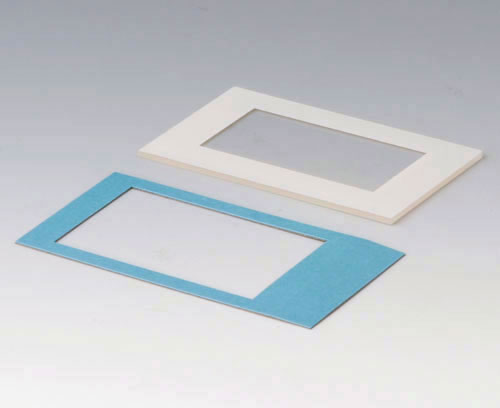

A9173407
Display window S, border off-white
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.
Supply 1 display window, 1 adhesive foil
A9173407
Display window S, border off-white产品已添加到关注清单中
transparent

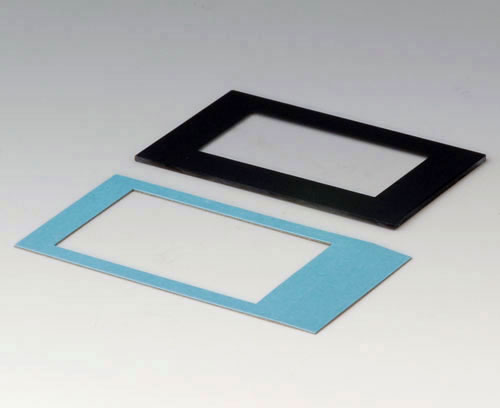

A9173409
Display window S, border black
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.
Supply 1 display window, 1 adhesive foil
A9173409
Display window S, border black产品已添加到关注清单中
transparent
A9174001

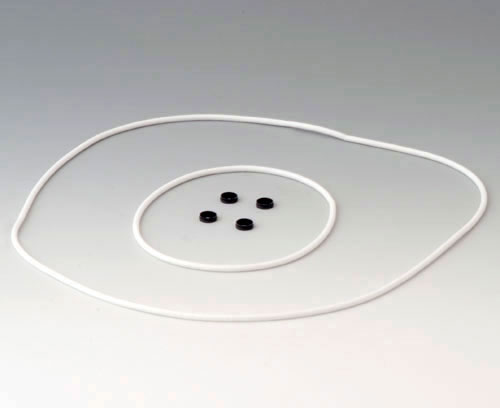

Sealing kit M
Application: for increasing the protection class, of DATEC-MOBIL-BOX M.
Supply 2 sealings, 4 sealing rings
A9174001
Sealing kit M产品已添加到关注清单中
A9174002
Battery compartment, 2 x 9 V
Application: for 2 x 9 V flat batteries (PP3).
Supply 1 battery compartment, assembly kit
A9174002
Battery compartment, 2 x 9 V产品已添加到关注清单中
off-white RAL 9002
A9174003
Battery compartment, 1 x 9 V
Application: for 1 x 9 V flat battery (PP3).
Supply 1 battery compartment, assembly kit
A9174003
Battery compartment, 1 x 9 V产品已添加到关注清单中
off-white RAL 9002
A9174006
Set of battery clips, 1 x 9 V
For contacting the battery.
Supply 2 single contacts
A9174006
Set of battery clips, 1 x 9 V产品已添加到关注清单中
tin-plated
A9174007
Display window M, border off-white
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.
Supply 1 display window, 1 adhesive foil
A9174007
Display window M, border off-white产品已添加到关注清单中
transparent

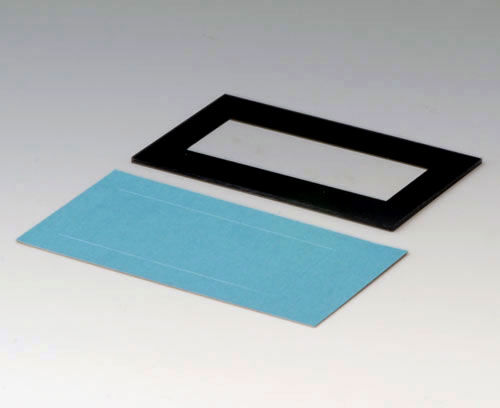

A9174009
Display window M, border black
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.
Supply 1 display window, 1 adhesive foil
A9174009
Display window M, border black产品已添加到关注清单中
transparent

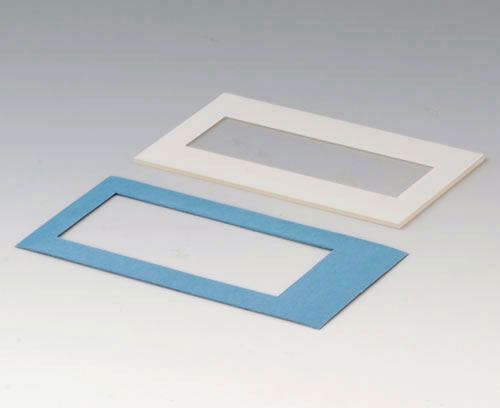

A9174307
Display window M, border off-white
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.
Supply 1 display window, 1 adhesive foil
A9174307
Display window M, border off-white产品已添加到关注清单中
transparent
A9174309
Display window M, border black
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.
Supply 1 display window, 1 adhesive foil
A9174309
Display window M, border black产品已添加到关注清单中
transparent

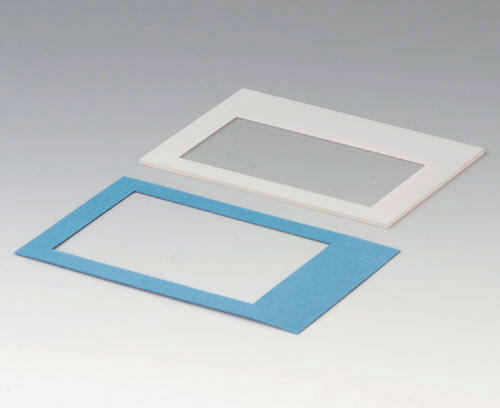

A9174407
Display window M, border off-white
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For Version IV
Supply 1 display window, 1 adhesive foil
A9174407
Display window M, border off-white产品已添加到关注清单中
transparent

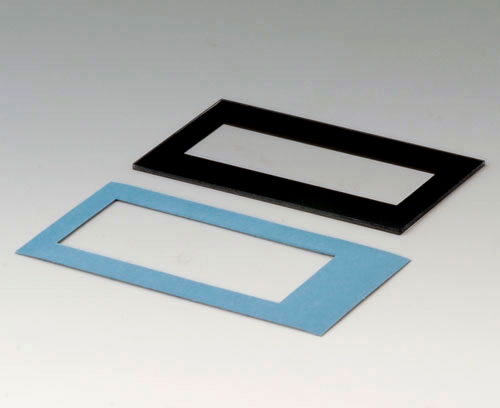

A9174409
Display window M, border black
The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.
Supply 1 display window, 1 adhesive foil
A9174409
Display window M, border black产品已添加到关注清单中
transparent
A9175001

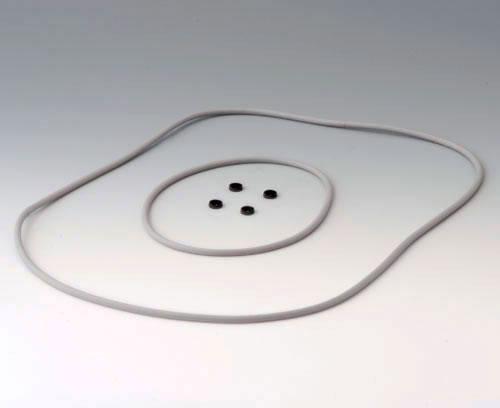

Sealing kit L
Application: for increasing the protection class, of DATEC-MOBIL-BOX L.
Supply 2 sealings, 4 sealings rings
A9175001
Sealing kit L产品已添加到关注清单中
A9175007

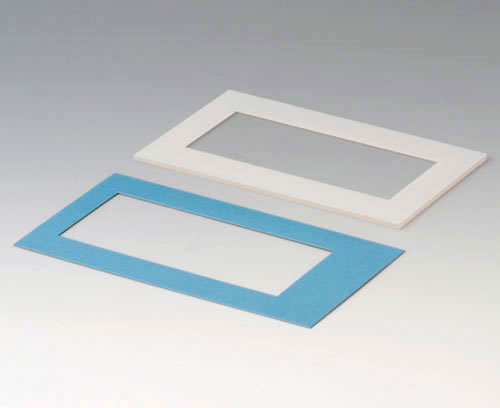

Display window L, border off-white
The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.
Supply 1 display window, 1 adhesive foil
A9175007
Display window L, border off-white产品已添加到关注清单中
transparent
A9175009
Display window L, border black
The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.
Supply 1 display window, 1 adhesive foil
A9175009
Display window L, border black产品已添加到关注清单中
transparent
A9175108

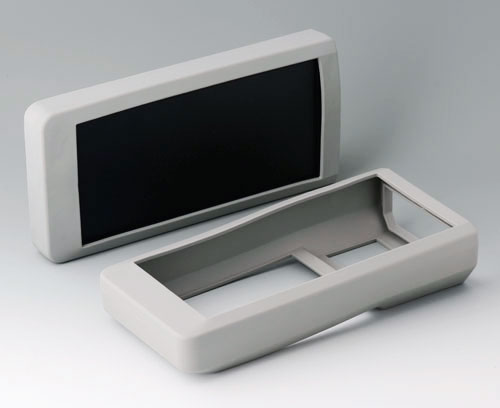

Protector L
Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.
Supply 1 protector
A9175108
Protector L产品已添加到关注清单中
volcano
A9190011
Set of battery clips, 2 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply 1 double contacts right, 1 single contact positive, 1 single contact negative
A9190011
Set of battery clips, 2 x AA产品已添加到关注清单中
nickel-plated
A9190012
Set of battery clips, 4 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply 2 single contact positive, 2 single contact negative
A9190012
Set of battery clips, 4 x AA产品已添加到关注清单中
nickel-plated
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mm产品已添加到关注清单中

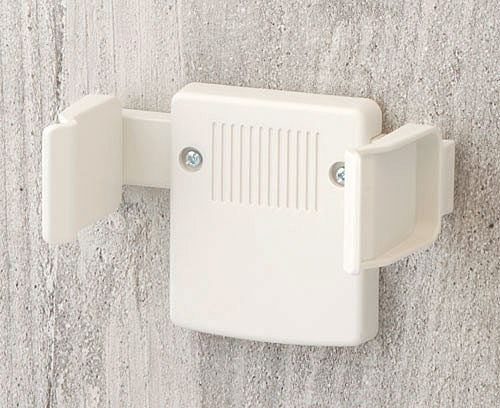

A9226127

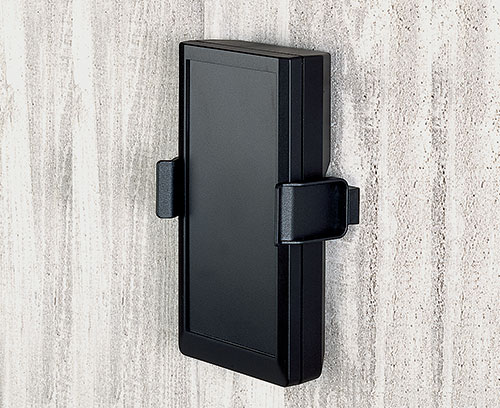

Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226127
Wall suspension element产品已添加到关注清单中
off-white RAL 9002
A9226129
Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226129
Wall suspension element产品已添加到关注清单中
black RAL 9005
A9226227

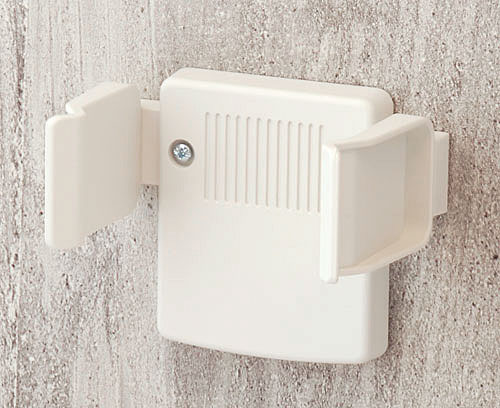

Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226227
Wall suspension element产品已添加到关注清单中
off-white RAL 9002

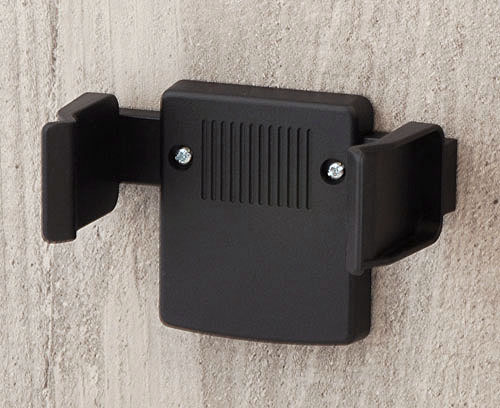

A9226229
Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226229
Wall suspension element产品已添加到关注清单中
black RAL 9005
A9226237

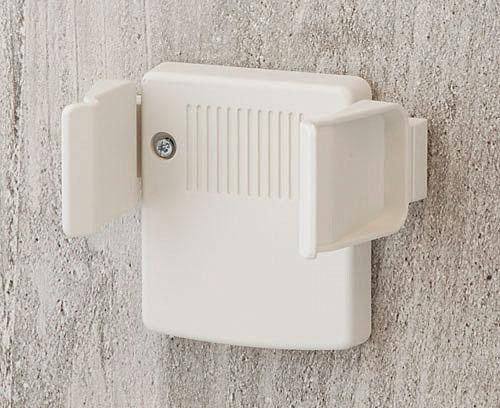

Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226237
Wall suspension element产品已添加到关注清单中
off-white RAL 9002
A9226239
Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226239
Wall suspension element产品已添加到关注清单中
black RAL 9005
A9250250
Battery spacer
The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacer产品已添加到关注清单中
50x25x4mm
A9250907
Tilt foot bar
Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.
Supply 1 tilt foot bar, assembly kit
A9250907
Tilt foot bar产品已添加到关注清单中
off-white RAL 9002
A9250909
Tilt foot bar
Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.
Supply 1 tilt foot bar, assembly kit
A9250909
Tilt foot bar产品已添加到关注清单中
black RAL 9005
A9345217
Set of battery compartment, 4 x AA
For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).
Supply 1 battery compartment, battery clips nickel-plated, assembly kit
A9345217
Set of battery compartment, 4 x AA产品已添加到关注清单中
off-white RAL 9002
