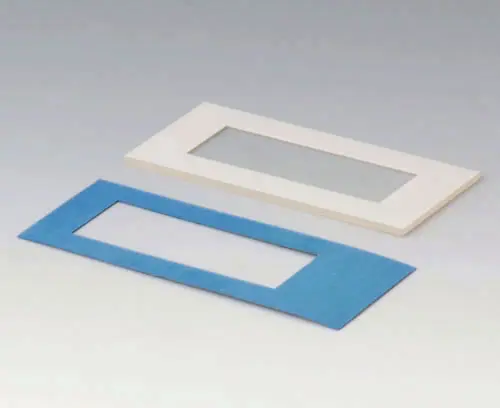

A9173307 Display window S, border off-white

A9173307

Display window S, border off-white

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply

1 display window, 1 adhesive foil

  • 应用于
  • 按客户要求修改加工
A9073307 DATEC-MOBIL-BOX S, Vers. III

A9073307

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

关闭

A9073307

DATEC-MOBIL-BOX S, Vers. III
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
152x83x33.5mm
IP 65 opt.
A9073317 DATEC-MOBIL-BOX S, Vers. III

A9073317

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, assembly kit

关闭

A9073317

DATEC-MOBIL-BOX S, Vers. III
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
152x83x33.5mm
IP 65 opt.

Customising options for A9173307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
