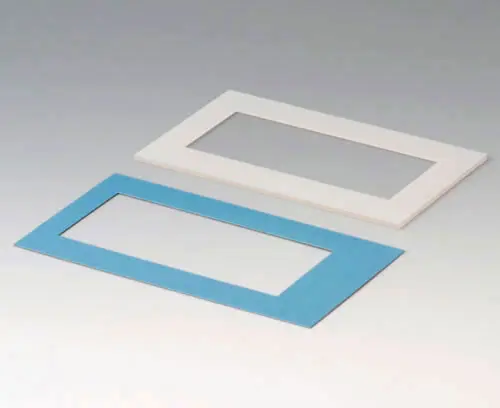

A9175007 Display window L, border off-white

A9175007

Display window L, border off-white

The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply

1 display window, 1 adhesive foil

  • 应用于
  • 按客户要求修改加工
A9075207 DATEC-MOBIL-BOX L, Vers. II

A9075207

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

关闭

A9075207

DATEC-MOBIL-BOX L, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075217 DATEC-MOBIL-BOX L, Vers. II

A9075217

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

关闭

A9075217

DATEC-MOBIL-BOX L, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.

Customising options for A9175007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
