Аксессуары для корпусов
C3602807

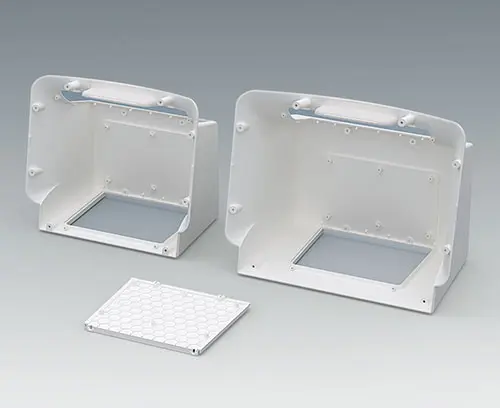

Bottom panel
Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.
Assembly/Installation:

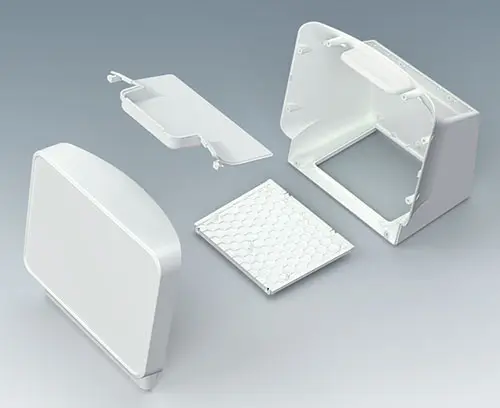

Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.
1 bottom panel
Сгенерировать вашу спецификацию в формате PDF для C3602807
Выберите те пункты, которые вы хотите включить в PDF.
Необходимые дополнительные комплектующие
C3602407
Order with COMMUNITEC S basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 11.5" (29 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.
Комплект поставки 1 operating panel, assembly kit incl. 4 non-slip feet
C3602407
Operating panel Sбелый RAL 9016
284x68x244mm
C3602408
Order with COMMUNITEC S basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 11.5" (29 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.
Комплект поставки 1 operating panel, assembly kit incl. 4 non-slip feet
C3602408
Operating panel Sтёмно-серый RAL 7016
284x68x244mm
C3602601
Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.
The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.
Комплект поставки 1 handle recess panel
C3602601
Handle recess panelсерый RAL 7042
C3602607
Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.
The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.
Комплект поставки 1 handle recess panel
C3602607
Handle recess panelбелый RAL 9016
C3602608
Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.
The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.
Комплект поставки 1 handle recess panel
C3602608
Handle recess panelтёмно-серый RAL 7016
C3602707
Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 11.5" (29 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.
Individual housing components are available as separate items: operating panel S, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.
Комплект поставки 1 basic housing
C3602707
COMMUNITEC S, basic housingбелый RAL 9016
280x169x242mm
C3602708
Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 11.5" (29 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.
Individual housing components are available as separate items: operating panel, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.
Комплект поставки 1 basic housing
C3602708
COMMUNITEC S, basic housingтёмно-серый RAL 7016
280x169x242mm
C3604407
Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.
Комплект поставки 1 operating panel, assembly kit incl. 4 non-slip feet
C3604407
Operating panel Mбелый RAL 9016
328x78x275mm
C3604408
Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.
Комплект поставки 1 operating panel, assembly kit incl. 4 non-slip feet
C3604408
Operating panel Mтёмно-серый RAL 7016
328x78x275mm
C3604707
Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 14" (35 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.
Individual housing components are available as separate items: operating panel M, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.
Комплект поставки 1 basic housing
C3604707
COMMUNITEC M, basic housingбелый RAL 9016
340x194x273mm
C3604708
Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 14" (35 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.
Individual housing components are available as separate items: operating panel M, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.
Комплект поставки 1 basic housing
C3604708
COMMUNITEC M, basic housingтёмно-серый RAL 7016
340x194x273mm
Аксессуары - для сборки
A0325060
Комплект поставки 1 шуруп
A0325060
Шуруп 2,5 x 6 мм (T8)(изделия OKW)
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for C3602807 and don't forget to request a quotation!
