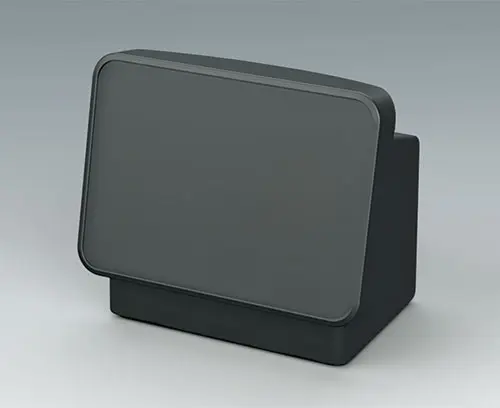

C3602708 COMMUNITEC S, basic housing
Кнопки быстрого перехода

C3602708

COMMUNITEC S, basic housing

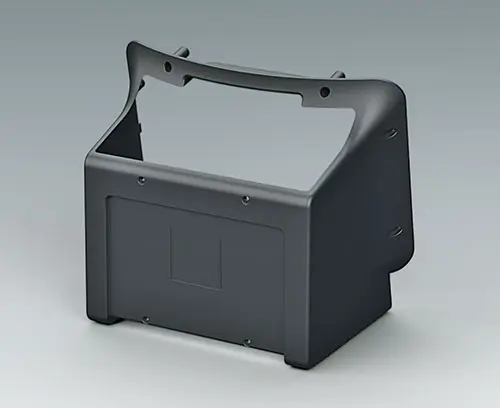

Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 11.5" (29 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.

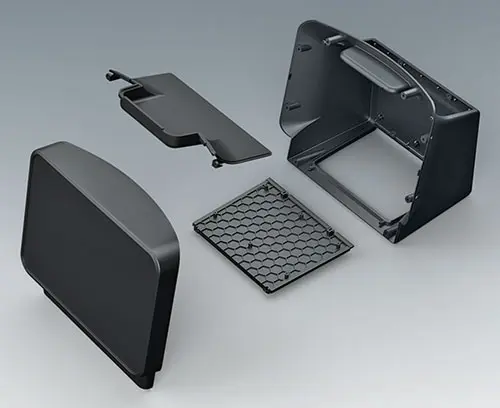

Individual housing components are available as separate items: operating panel, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.

Комплект поставки

1 basic housing

2D-Чертёж в формате PDF
Файл PDF с трёхмерным видом
3D/2D download Сгенерировать в PDF

Сгенерировать вашу спецификацию в формате PDF для C3602708

Выберите те пункты, которые вы хотите включить в PDF.

Закрыть
Добавить в корзину Добавить в корзину Добавить в корзину
изделие добавлено в вашу корзину
продолжить или просмотреть вашу корзину
  • Возможные аксессуары
  • Услуги по доработке
  • Видео

Необходимые дополнительные комплектующие

C3602407 Operating panel S

C3602407

Operating panel S

Order with COMMUNITEC S basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 11.5" (29 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Комплект поставки 1 operating panel, assembly kit incl. 4 non-slip feet

Закрыть

C3602407

Operating panel S
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
белый RAL 9016
284x68x244mm
C3602408 Operating panel S

C3602408

Operating panel S

Order with COMMUNITEC S basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 11.5" (29 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Комплект поставки 1 operating panel, assembly kit incl. 4 non-slip feet

Закрыть

C3602408

Operating panel S
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
тёмно-серый RAL 7016
284x68x244mm
C3602601 Handle recess panel

C3602601

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Комплект поставки 1 handle recess panel

Закрыть

C3602601

Handle recess panel
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
серый RAL 7042
C3602607 Handle recess panel

C3602607

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Комплект поставки 1 handle recess panel

Закрыть

C3602607

Handle recess panel
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
белый RAL 9016
C3602608 Handle recess panel

C3602608

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Комплект поставки 1 handle recess panel

Закрыть

C3602608

Handle recess panel
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
тёмно-серый RAL 7016
C3602807 Bottom panel

C3602807

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Комплект поставки 1 bottom panel

Закрыть

C3602807

Bottom panel
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
белый RAL 9016
188x150x5mm
C3602808 Bottom panel

C3602808

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Комплект поставки 1 bottom panel

Закрыть

C3602808

Bottom panel
изделие добавлено в вашу корзину
ACA+ПК (UL 94 V-0)
тёмно-серый RAL 7016
188x150x5mm

Аксессуары - для сборки

A0325060 Шуруп 2,5 x 6 мм (T8)

A0325060

Шуруп 2,5 x 6 мм (T8) Шуруп с головкой Torx T8. Для крепления печатных плат и других компонентов к пластмассовым монтажным бобышкам.

Комплект поставки 1 шуруп

Закрыть

A0325060

Шуруп 2,5 x 6 мм (T8)
изделие добавлено в вашу корзину
нержавеющая сталь

Виды доработки для C3602708

Чего ещё не хватает для создания Вашего индивидуального решения? Мы можем поставить корпуса и регулировочные ручки со всеми необходимыми модификациями для Вашей задачи. Мы с удовольствием вам поможем.

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

  • Техническая информация
  • Чертежи
  • Примеры Применения
  • Информация по закупке
Материал
ACA+ПК (UL 94 V-0)
Степень защиты
IP 40
Necessary accessories: operating panel, bottom panel, and handle recess panel
Цвет
тёмно-серый RAL 7016
Стандарты
Соответствует RoHS
Соответствует REACH
Указанная степень защиты относится к пустым стандартным корпусам (без доработки) и соответствует стандарту EN 60529.
Ширина
280 mm
Глубина
169 mm
Высота
242 mm
Длина платы, в основании
210 mm
Ширина платы, в основании
124 mm
Пожалуйста, замеряйте размеры на образцах изделий. Существуют допуски, связанные с технологией литья и свойствами пластмассовых материалов.

Чертежи (отклонения зависят от допусков литейного процесса, например DIN ISO 20457)

3D-модели (отклонения зависят от допусков литейного процесса, например DIN ISO 20457)

Масса/1 шт.
447 g
Код таможенного тарифа
(изделия OKW)
39269097
Страна изготовления
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for C3602708 and dont forget to request a quotation!
