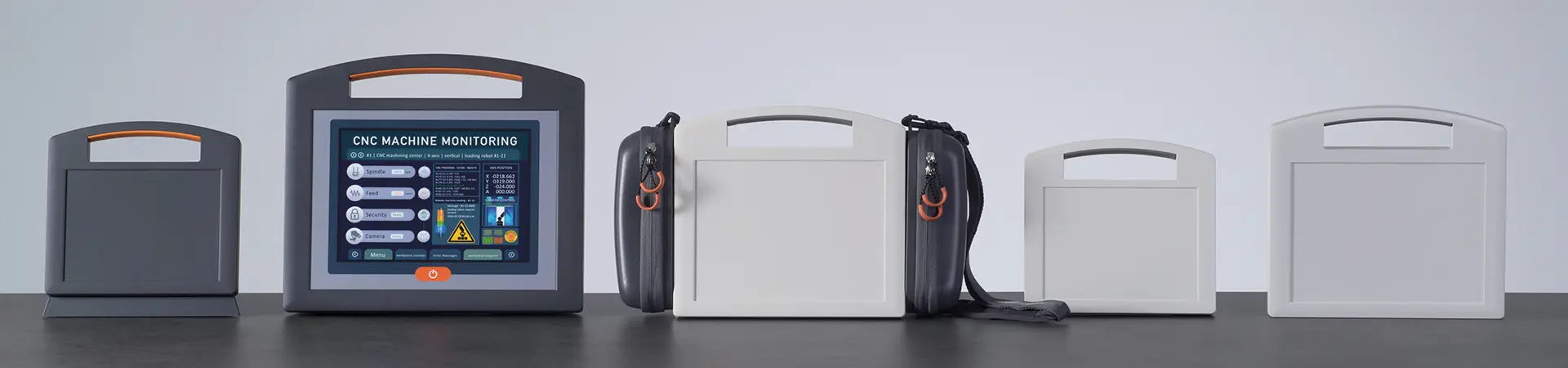

CARRYTEC

Carrytec

Caixas Plásticas com Alça Integrada

CARRYTEC é o único modelo que oferece alça funcional para muitas tarefas e situações diferentes, para ambientes fechados e ao ar livre.

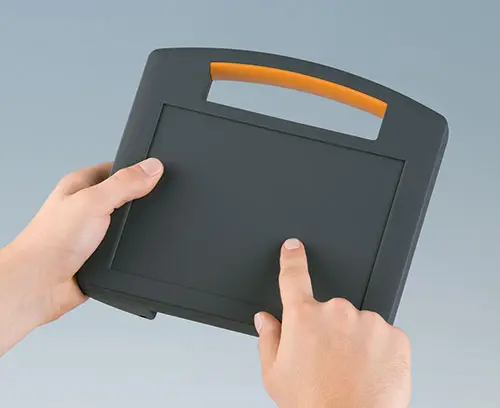

  • alça integrada com suave inserção para perfeita aderência, antiderrapante

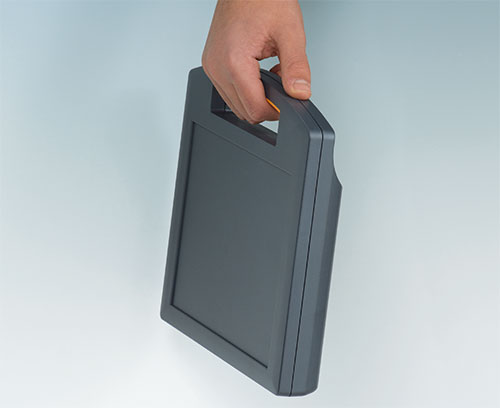

  • caixa CARRYTEC M em versão fina para montagem de tablets etc.
  • alça localizada acima do centro de gravidade para transporte equilibrado

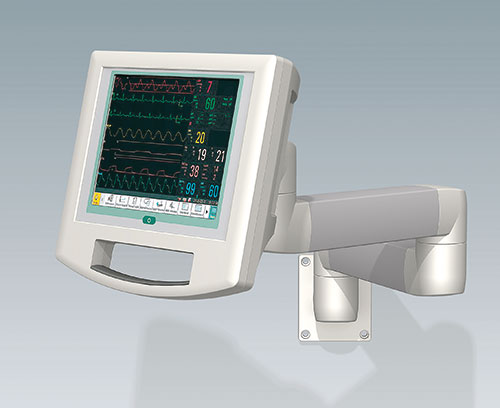

  • traseira pode ser instalada em tripé ou suporte para sistemas de braço para posicionamento rápido e alinhamento dos painéis de visualização, operação e organização de cabos

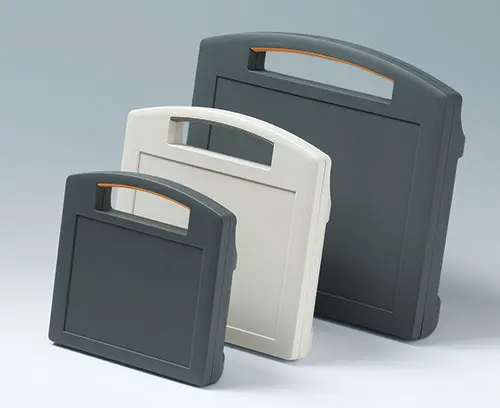

  • ampla área de superfície ideal para interfaces do usuário (S: 8,4"/21 cm; M: 10,4"/26 cm; L: 13,4"/34 cm)
  • ampla profundidade para instalação e espaço sobressalente para interfaces, mesmo que seja o modelo slim

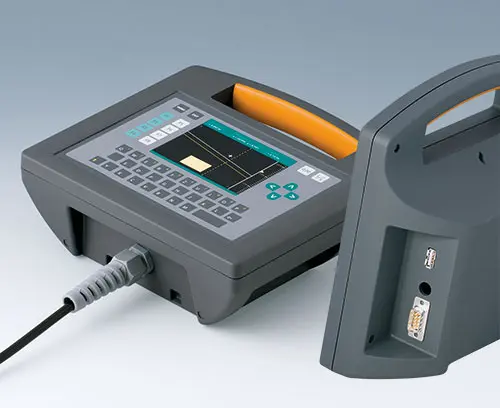

  • interfaces protegidas por áreas de inserção na parte inferior

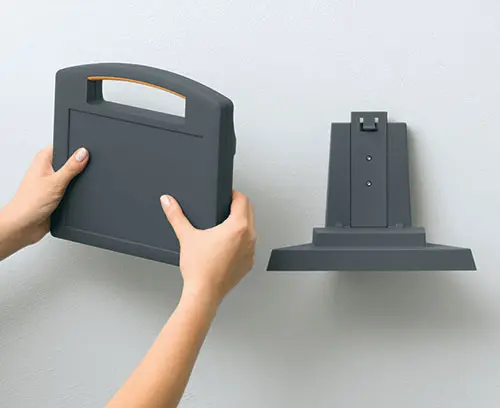

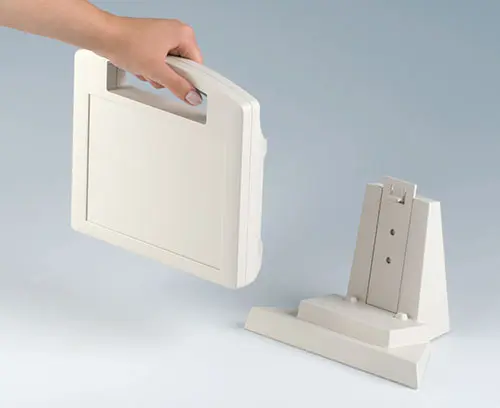

  • armazenamento seguro para suporte de mesa e/ou elemento para fixação em parede; fácil transmissão de dados e corrente para carga, contatos como acessórios (exceto versão slim)

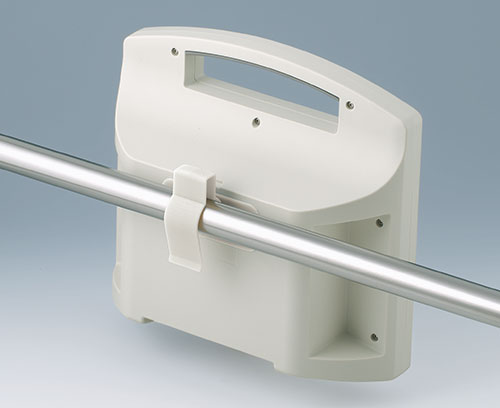

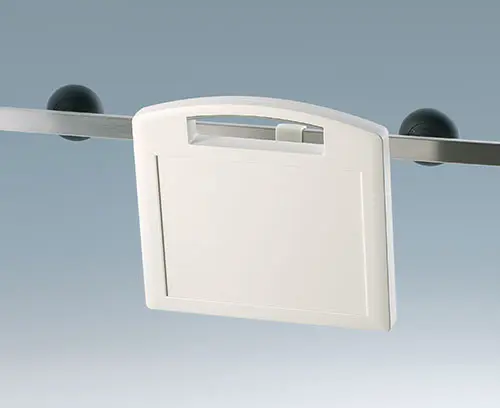

  • braçadeira de fixação para tubos redondos e trilhos DIN de acordo com EN ISO 19054
  • modelos disponíveis em material plástico resistente a impacto  e em cores mais escuras para condições adversas de sujeira para áreas internas e externas
  • classe de proteção IP 54 com vedação (acessório)

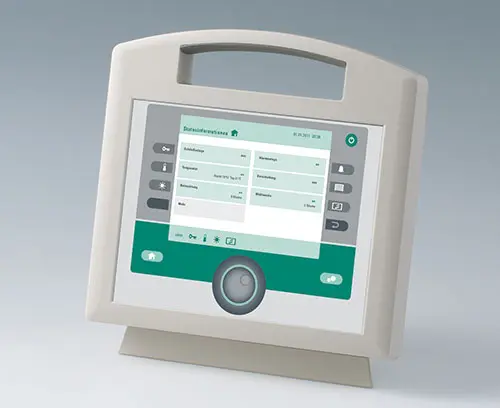

  • área de operação com recesso para proteção do teclado de membrana
  • as caixas são fáceis de limpar

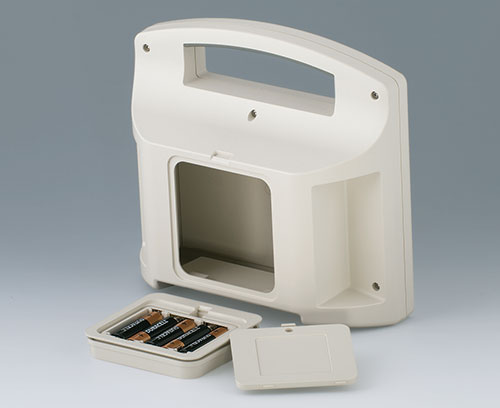

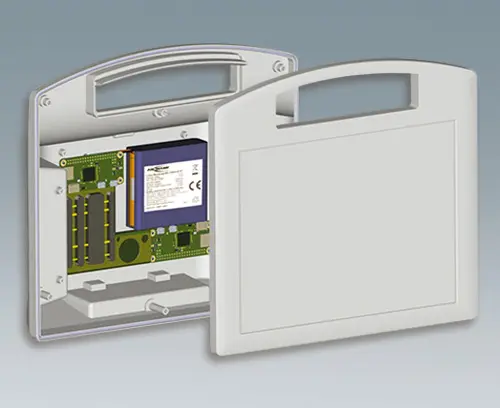

  • um compartimento de bateria para pilhas 5 x AA (usinagem obrigatória)

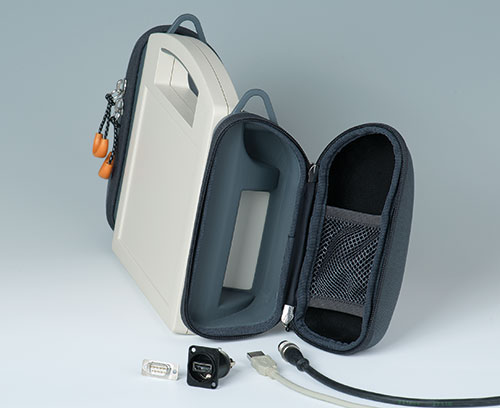

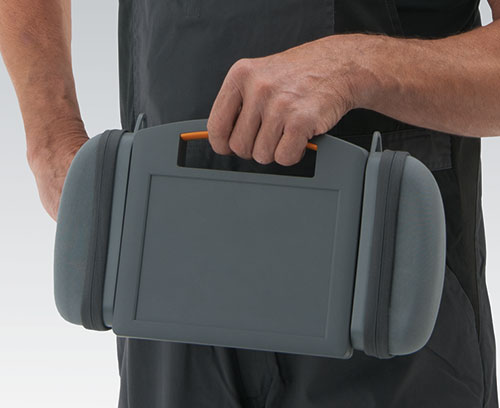

  • bolsas protetoras opcionais para o transporte de sondas, sensores, cabos etc. (tamanhos S e M)
  • pilares internos de fixação de PCBs
  • Video

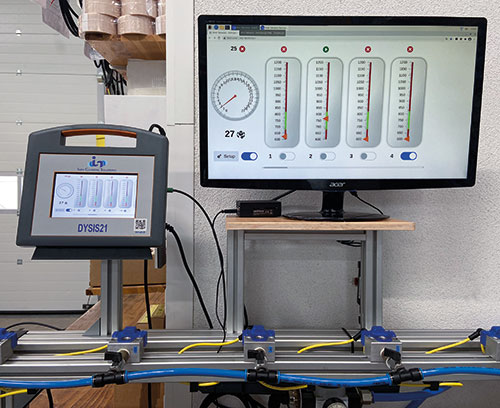

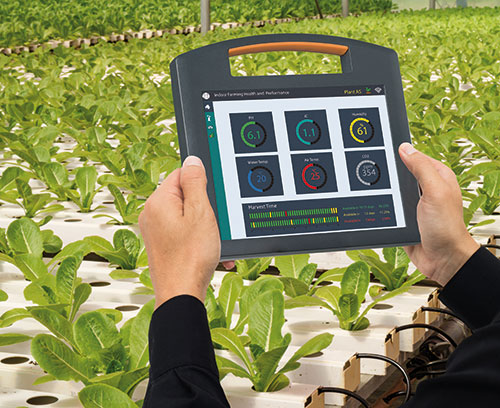

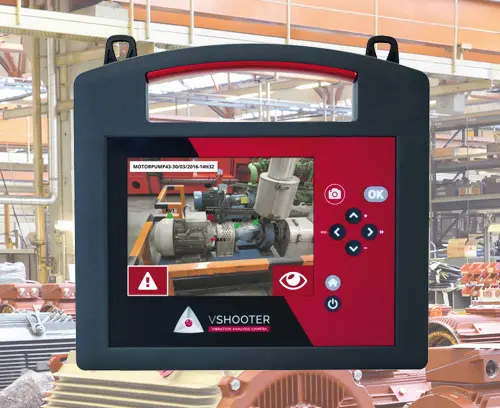

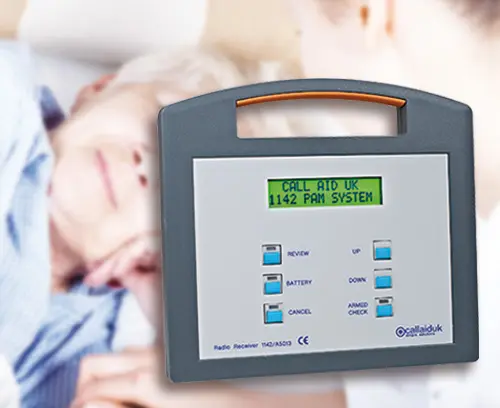

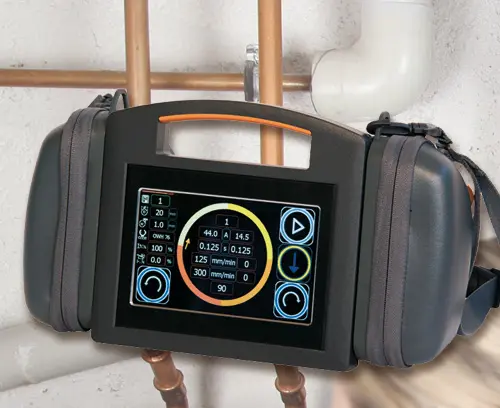

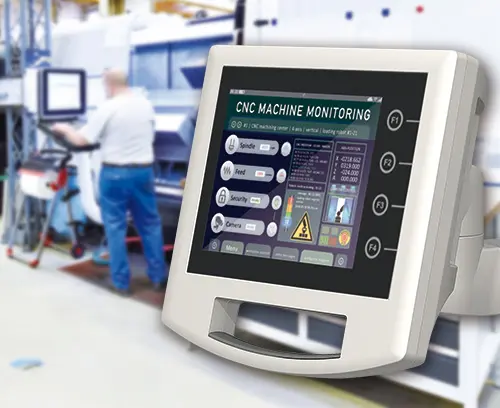

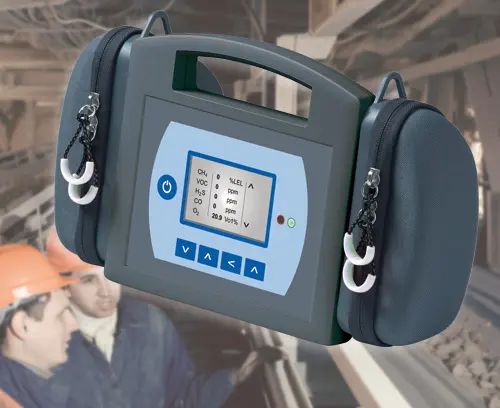

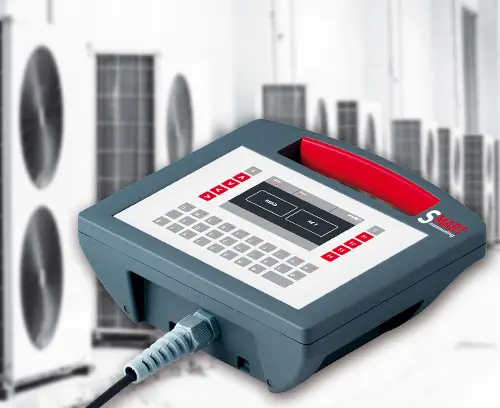

  • Exemplos de Aplicação

Application fields

  • Única variedade de possíveis usos: móvel – mesa de trabalho – montagem em parede – montagem em trilho - tubo redondo - tripé - braço de suspensão.
  • Dependendo da aplicação (interna/externa), esta inovadora caixa está disponível em diferentes materiais, como por exemplo, material plástico de alto impacto em cores mais escuras para condições difíceis.
  • Navegue na Lista Completa
  • Acessórios
  • Customizadas

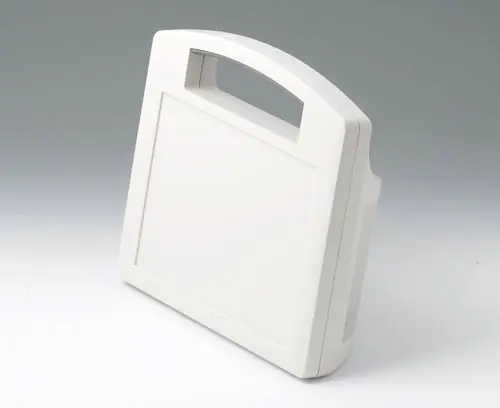

B4208107 CARRYTEC S

B4208107

CARRYTEC S Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4208107

CARRYTEC S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
222x205x80mm
IP 54 opt.

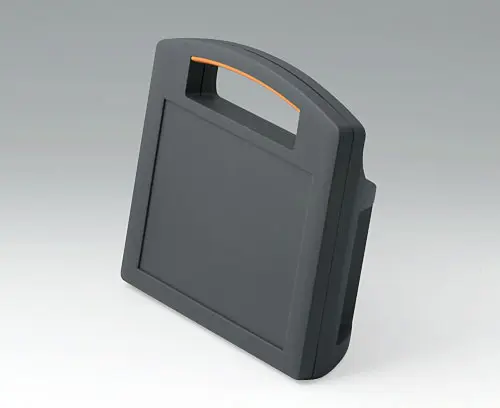

B4208208 CARRYTEC S

B4208208

CARRYTEC S Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4208208

CARRYTEC S
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
222x205x80mm
IP 54 opt.
B4210107 CARRYTEC M

B4210107

CARRYTEC M Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4210107

CARRYTEC M
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x91mm
IP 54 opt.

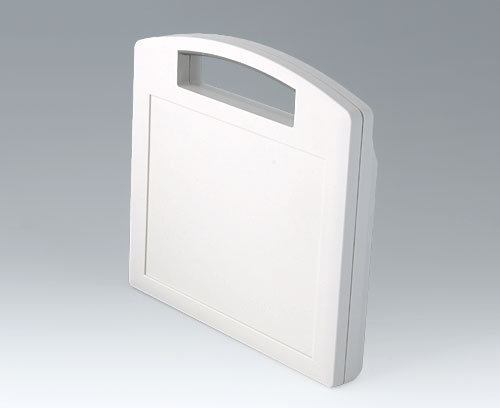

B4210127 CARRYTEC M slim version

B4210127

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4210127

CARRYTEC M slim version
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x42mm
IP 54 opt.

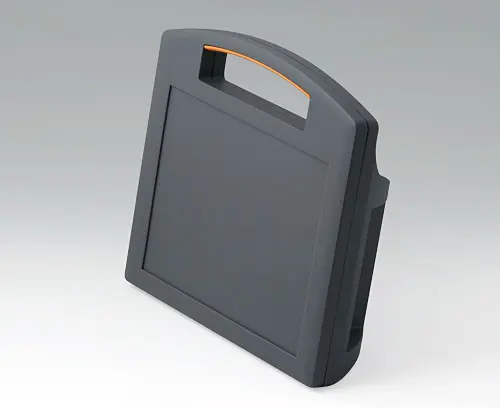

B4210208 CARRYTEC M

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4210208

CARRYTEC M
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
270x247x91mm
IP 54 opt.

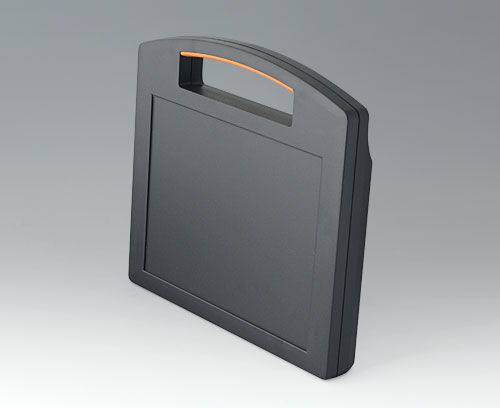

B4210228 CARRYTEC M slim version

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4210228

CARRYTEC M slim version
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
270x247x42mm
IP 54 opt.
B4213107 CARRYTEC L

B4213107

CARRYTEC L Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, compatible with VESA standard (100 x 100 mm). Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4213107

CARRYTEC L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
348x303x117mm
IP 54 opt.
B4213208 CARRYTEC L

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, compatible with VESA standard (100 x 100 mm). Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4213208

CARRYTEC L
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
348x303x117mm
IP 54 opt.
A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Fechar

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
Produto adicionado a sua lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T10

Torx T10 screwdriver
Produto adicionado a sua lista

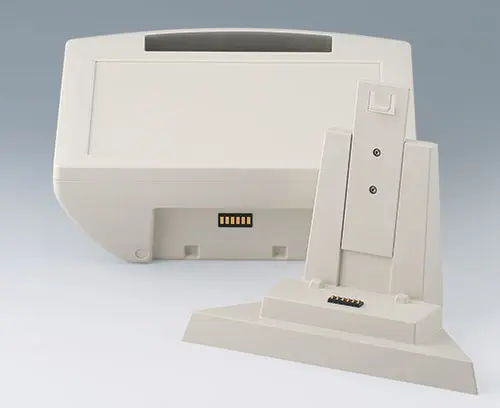

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Fechar

A9178007

Contacts, male
Produto adicionado a sua lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Fechar

A9178008

Contacts, female
Produto adicionado a sua lista
gold-plated
A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Fechar

A9193042

Mounting plates for contacts
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

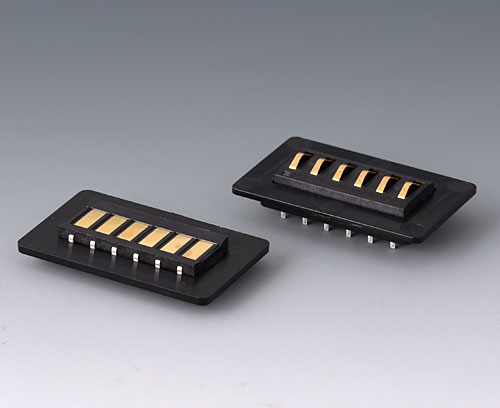

A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Fechar

A9193044

Contacting kit, 6-pin
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9338117

Battery compartment kit, 5 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54

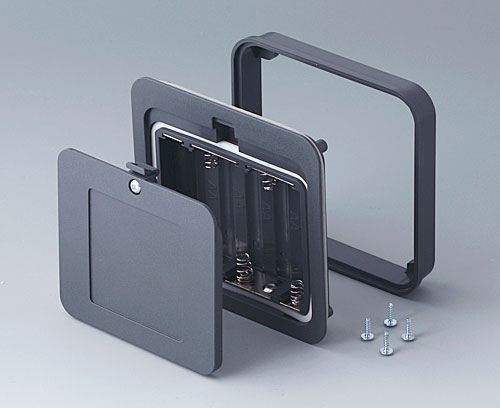

A9338218 Battery compartment kit, 5 x AA

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9338218

Battery compartment kit, 5 x AA
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
93x98mm
IP 54

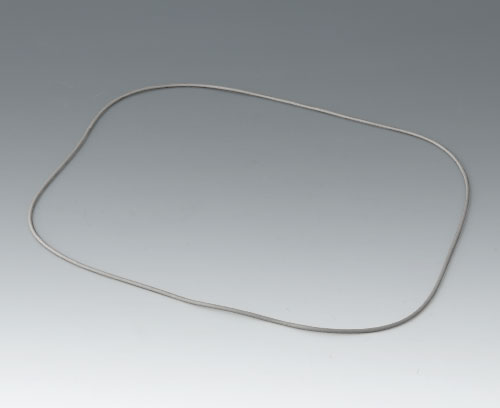

B4308001 Sealing S

B4308001

Sealing S Application: for increasing the protection class, of CARRYTEC S. Bottom part with groove to assemble the sealing.

Supply 1 sealing

Fechar

B4308001

Sealing S
Produto adicionado a sua lista

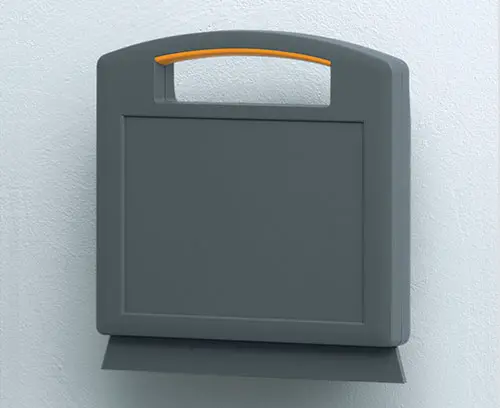

B4308117 Station S/M

B4308117

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Fechar

B4308117

Station S/M
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

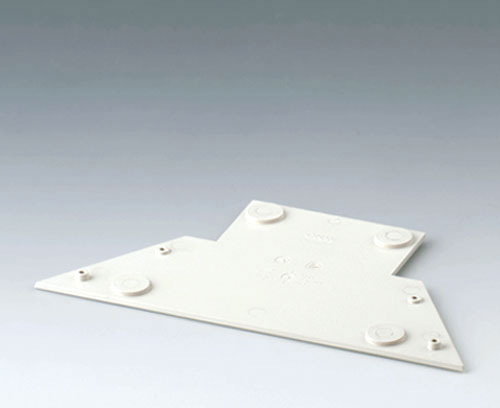

B4308127 Base plate for station

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Fechar

B4308127

Base plate for station
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

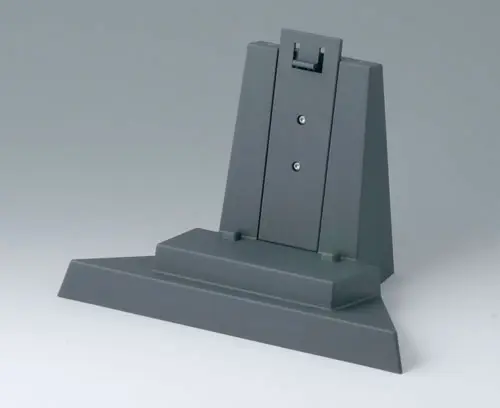

B4308218 Station S/M

B4308218

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Fechar

B4308218

Station S/M
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava

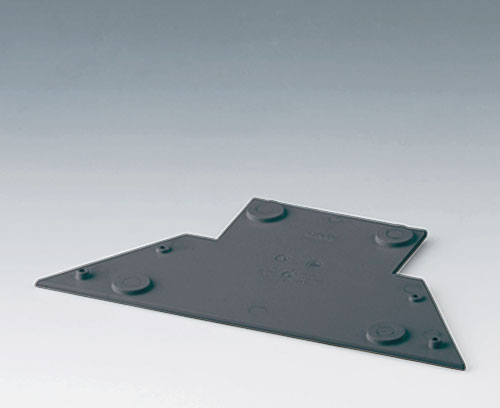

B4308228 Base plate for station

B4308228

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Fechar

B4308228

Base plate for station
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava

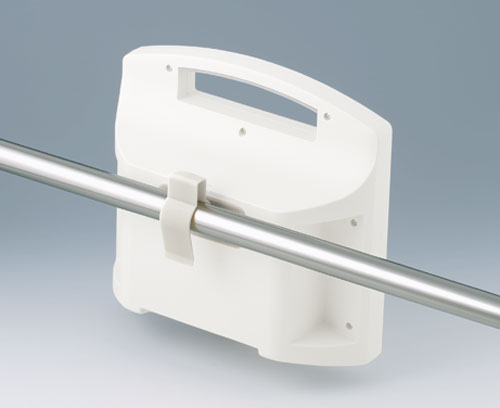

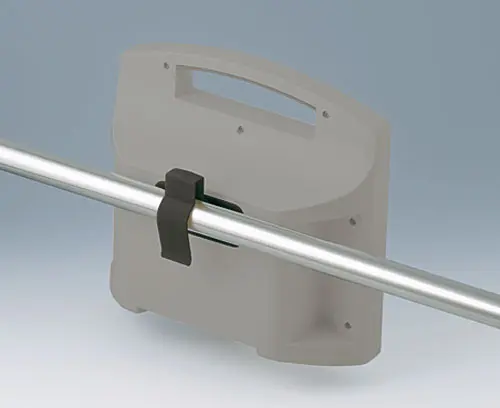

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Fechar

B4308237

Holding clamps
Produto adicionado a sua lista
PA 6
off-white RAL 9002
B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Fechar

B4308238

Holding clamps
Produto adicionado a sua lista
PA 6
lava

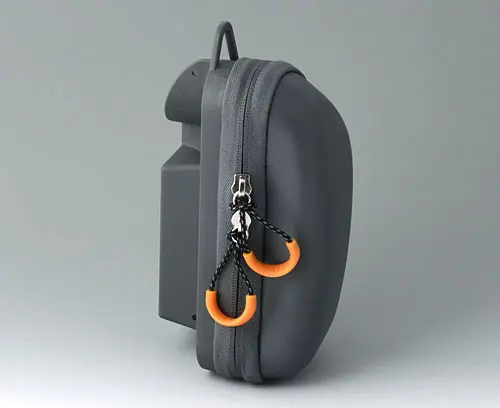

B4308600 Carrying case S, right-hand side

B4308600

Carrying case S, right-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Fechar

B4308600

Carrying case S, right-hand side
Produto adicionado a sua lista
grey
82x180x65mm

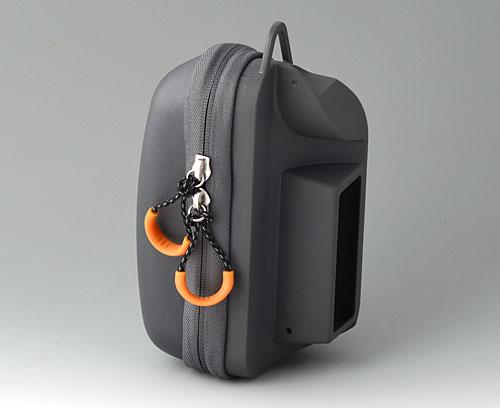

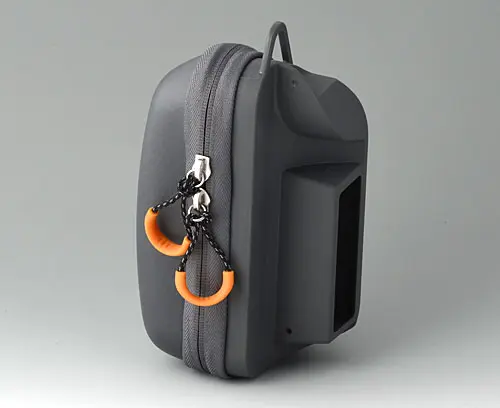

B4308610 Carrying case S, left-hand side

B4308610

Carrying case S, left-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Fechar

B4308610

Carrying case S, left-hand side
Produto adicionado a sua lista
grey
82x180x65mm

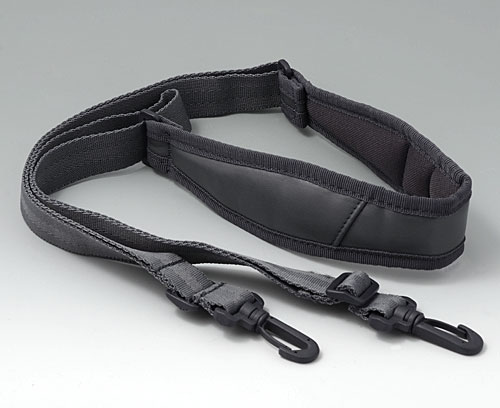

B4308650 Shoulder strap

B4308650

Shoulder strap Practical shoulder strap with shoulder padding.

Supply 1 shoulder strap

Fechar

B4308650

Shoulder strap
Produto adicionado a sua lista
grey
1400mm

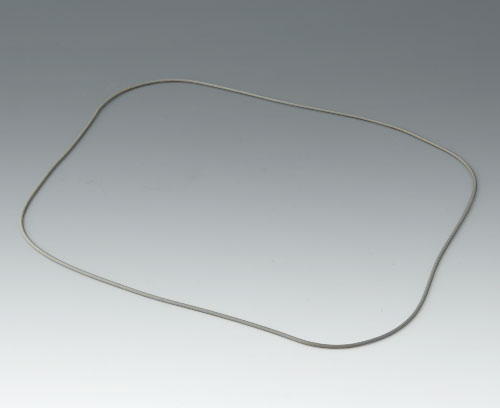

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

Fechar

B4310001

Sealing M
Produto adicionado a sua lista
B4310600 Carrying case M, right-hand side

B4310600

Carrying case M, right-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Fechar

B4310600

Carrying case M, right-hand side
Produto adicionado a sua lista
grey
99x214x64mm
B4310610 Carrying case M, left-hand side

B4310610

Carrying case M, left-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Fechar

B4310610

Carrying case M, left-hand side
Produto adicionado a sua lista
grey
99x214x64mm

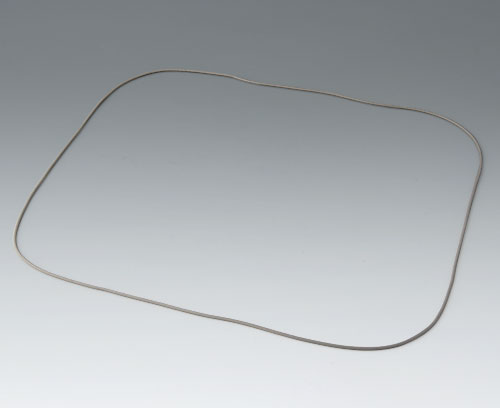

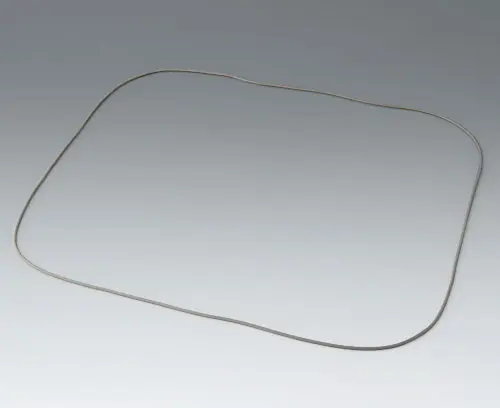

B4313001 Sealing L

B4313001

Sealing L Application: for increasing the protection class, of CARRYTEC L.

Supply 1 sealing

Fechar

B4313001

Sealing L
Produto adicionado a sua lista

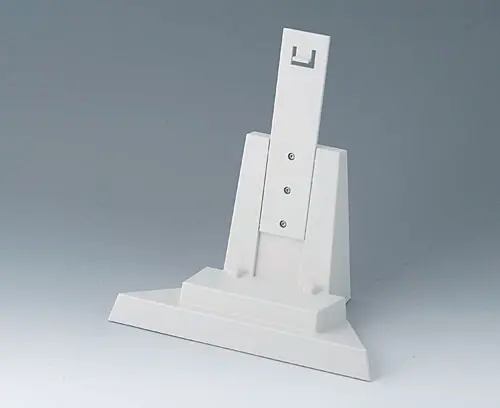

B4313117 Station L

B4313117

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Fechar

B4313117

Station L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

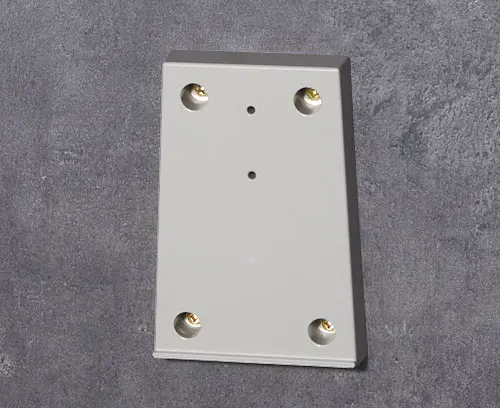

B4313147 Adapter for Station L

B4313147

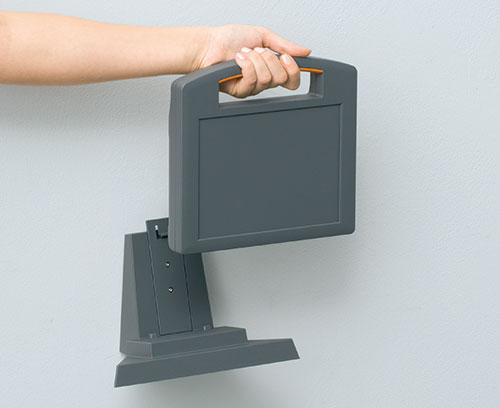

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Fechar

B4313147

Adapter for Station L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B4313218 Station L

B4313218

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Fechar

B4313218

Station L
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava

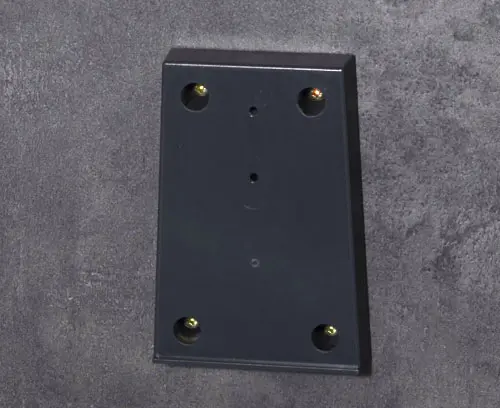

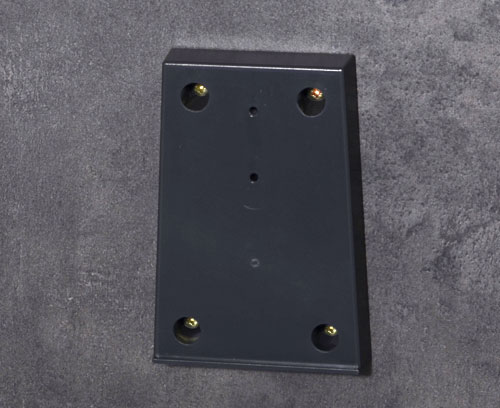

B4313248 Adapter for Station L

B4313248

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Fechar

B4313248

Adapter for Station L
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
K0300012 Shoulder strap 330 / 340

K0300012

Shoulder strap 330 / 340 The shoulder strap can be used for carry cases 330 and 340 as well as Carrytec enclosures with separate brackets (B4308309). The upholstered strap is wedge-shaped in order to prevent the strap from slipping off the shoulder, and ensures optimum load distribution. The shoulder strap can easily be adjusted to the size of the user.

Samples free of charge are not available.

Supply 1 shoulder strap

Fechar

K0300012

Shoulder strap 330 / 340
Produto adicionado a sua lista
black
1600x55x5mm

Opções para customizadas Carrytec

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
