Easytec

Obudowa z uchwytami do montażu nowoczesnych czujników

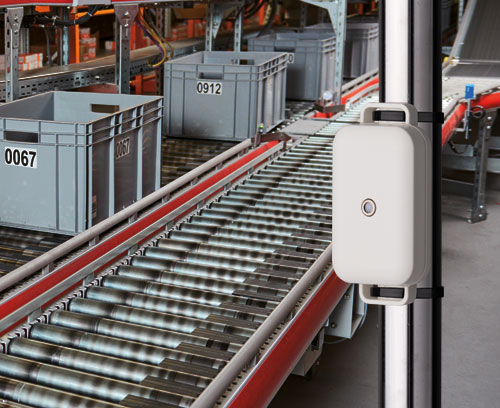

EASYTEC to nowa seria obudów ściennych, która została optymalnie zaprojektowana do montażu czujników dla systemów IIoT (Przemysłowy Internet Rzeczy) i IoT.

  • nowoczesna i wytrzymała konstrukcja obudowy

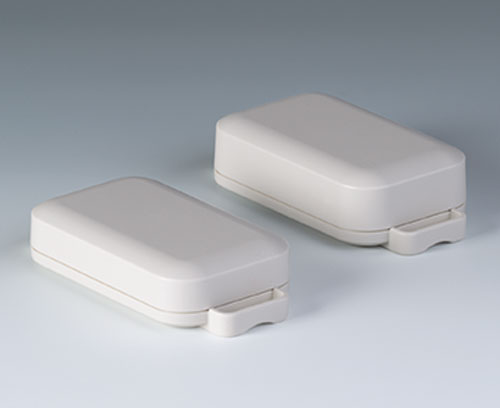

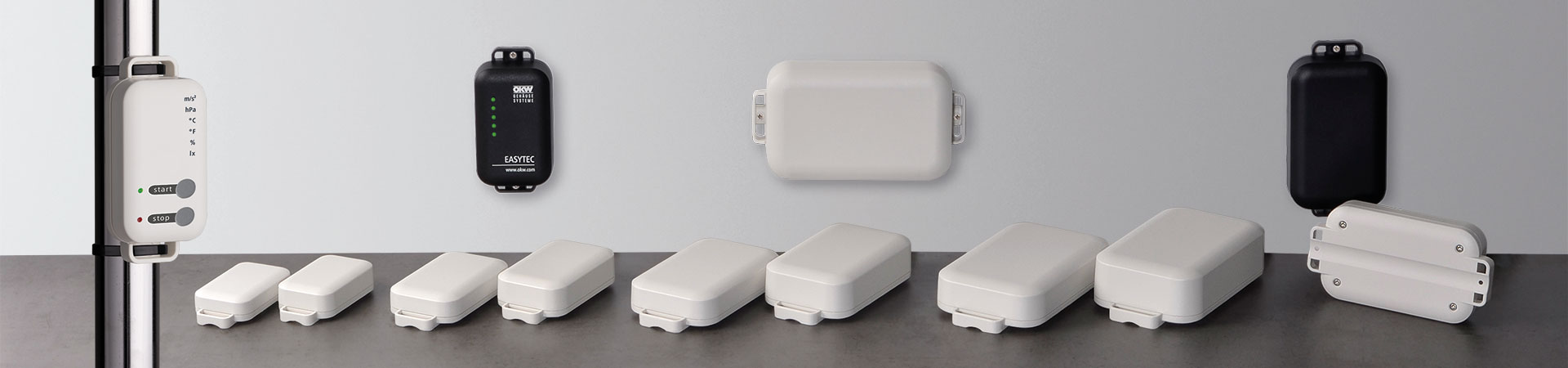

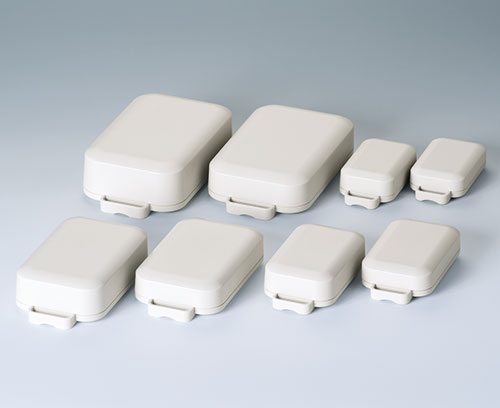

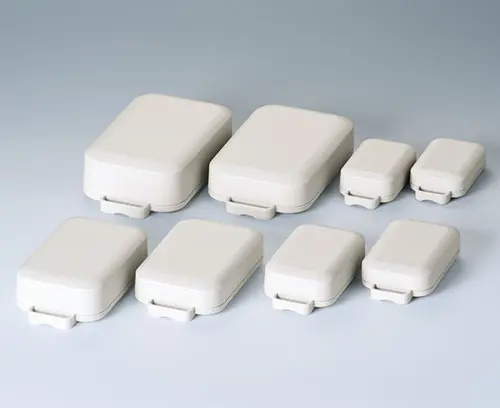

  • cztery rozmiary 80/100/125/150, każdy w 2 wysokościach
  • wysokiej jakości materiał niepalny ASA+PC-FR

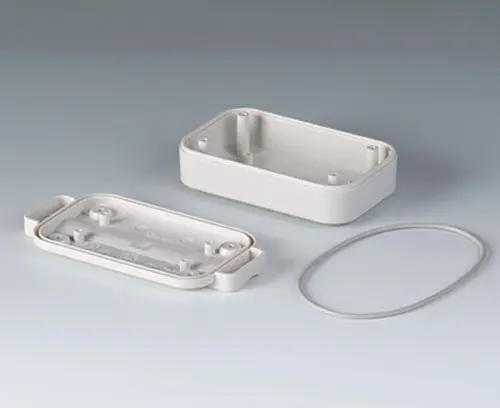

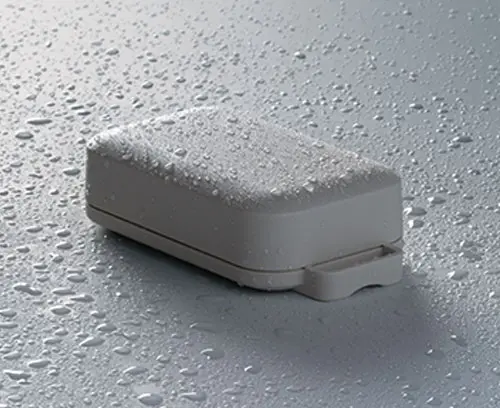

  • opcjonalnie możliwe zwiększenie stopnia ochrony do IP 65 (uszczelki dostępne jako wyposażenie dodatkowe) dla solidnych aplikacji wewnątrz i na zewnątrz

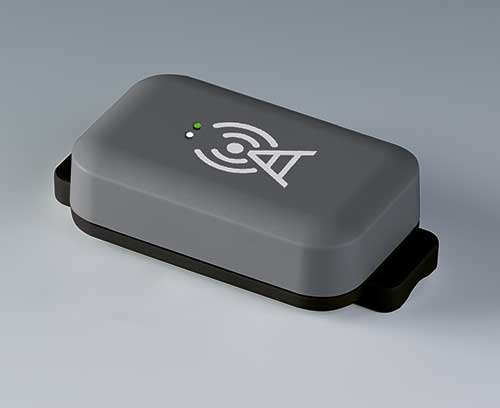

  • standardowy kolor złamanej bieli (RAL 9002) dyskretny i elegancki, pasuje do wielu zastosowań - na życzenie możemy również wykonać obudowy w innych kolorach

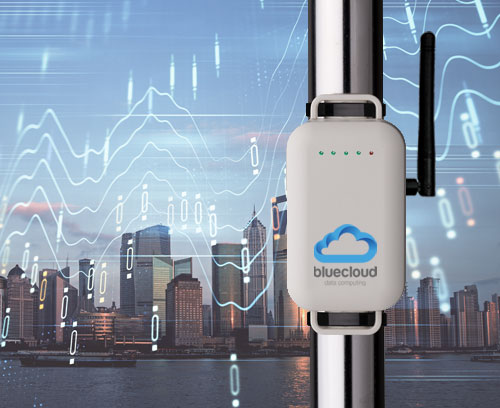

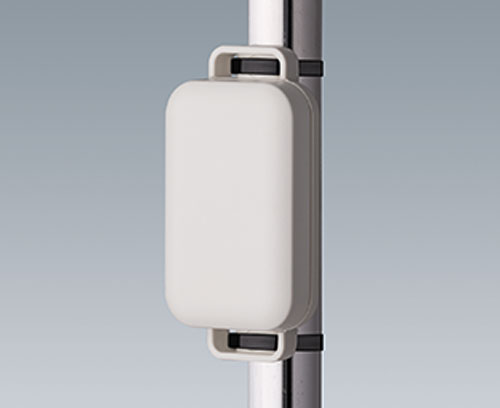

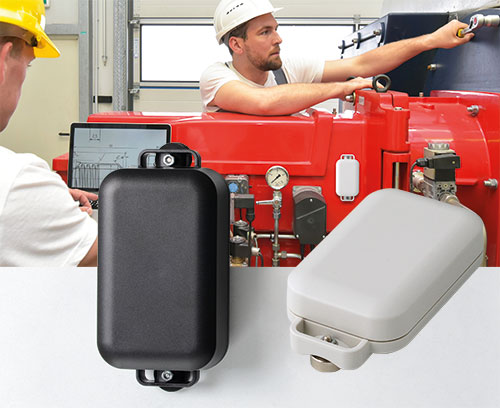

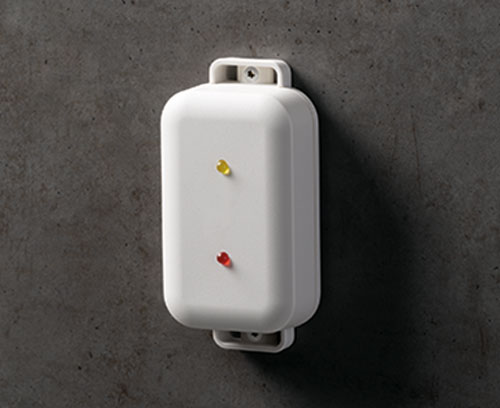

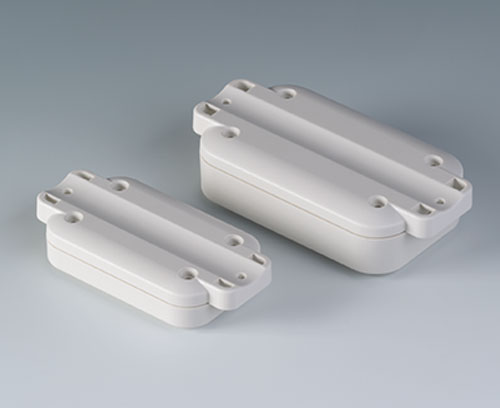

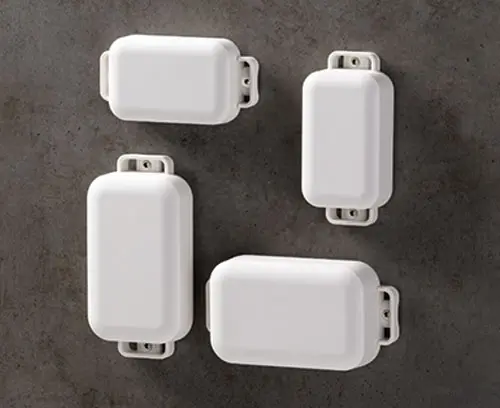

  • na tylnej części obudowy znajdują się 2 uchwyty do szybkiego montażu na ścianie, rurach lub innych okrągłych profilach
  • szczelna komora dla elektroniki z dwoma poziomami do montażu PCB (w górnej lub dolnej części)
  • połączenie za pomocą śrub Torx ze stali nierdzewnej
  • Wideo

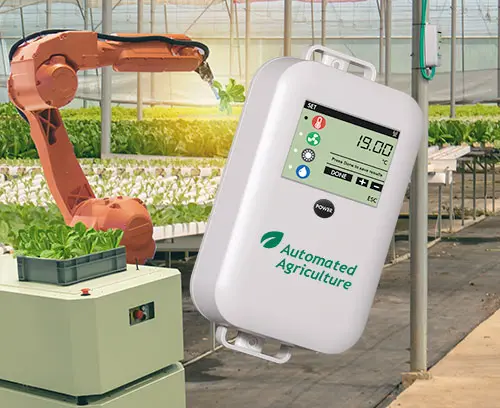

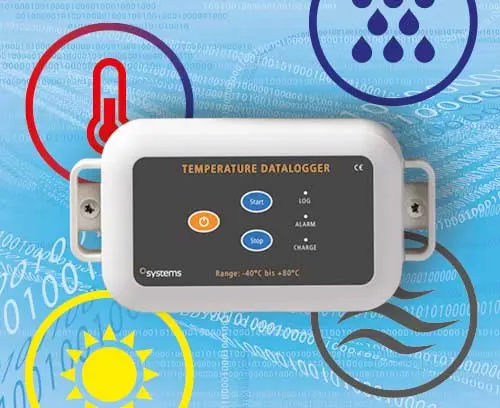

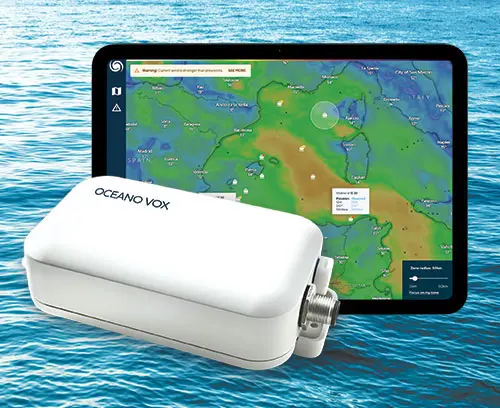

  • Przykłady aplikacji

Obszary zastosowań

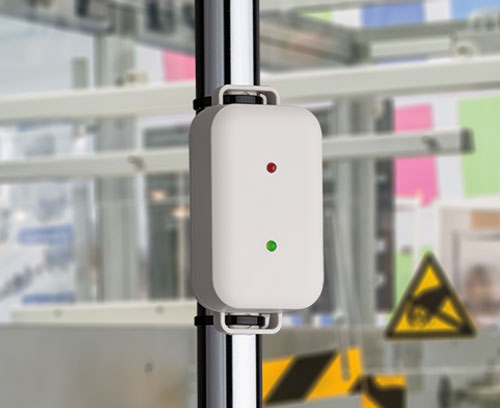

  • IoT / IIoT
  • System czujników
  • Technologia środowiskowa
  • Inżynieria pomiarów i sterowania
  • Technologia sterowania
  • Technologia medyczna i laboratoryjna
  • Technologia bezpieczeństwa i monitorowania
  • Technologia informacyjna
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania
AltText

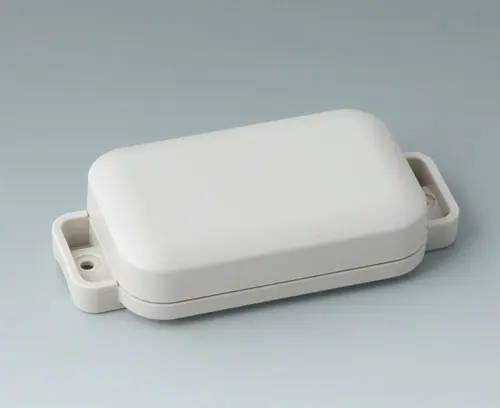

C3204107

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Zamknij

C3204107

EASYTEC 80
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
101x50x22mm
IP 65 opt., IP 40
AltText

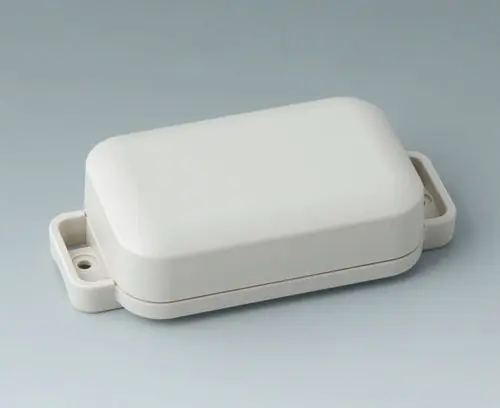

C3204207

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Zamknij

C3204207

EASYTEC 80
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
101x50x26mm
IP 65 opt., IP 40
AltText

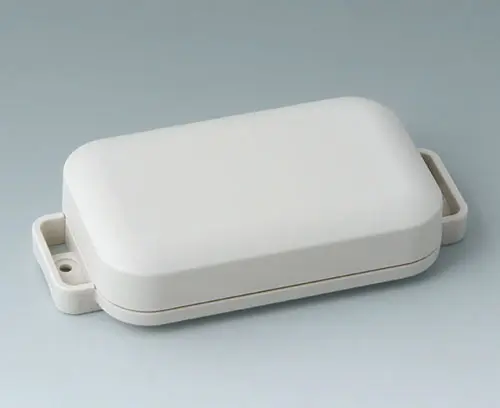

C3206107

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Zamknij

C3206107

EASYTEC 100
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
121x62x26mm
IP 65 opt., IP 40
AltText

C3206207

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Zamknij

C3206207

EASYTEC 100
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
121x62x31mm
IP 65 opt., IP 40
AltText

C3207107

EASYTEC 125 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Zamknij

C3207107

EASYTEC 125
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
147x78x30mm
IP 65 opt., IP 40
AltText

C3207207

EASYTEC 125 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Zamknij

C3207207

EASYTEC 125
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
147x78x37mm
IP 65 opt., IP 40
AltText

C3208107

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Zamknij

C3208107

EASYTEC 150
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x36mm
IP 65 opt., IP 40
AltText

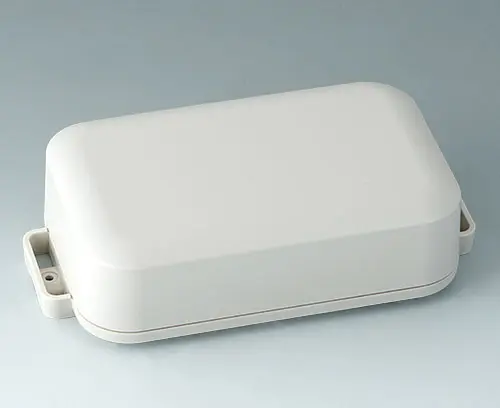

C3208207

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Zamknij

C3208207

EASYTEC 150
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x46mm
IP 65 opt., IP 40
AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
produkt został dodany do twojej listy
AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
produkt został dodany do twojej listy
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T08

Torx T8 screwdriver
produkt został dodany do twojej listy
AltText

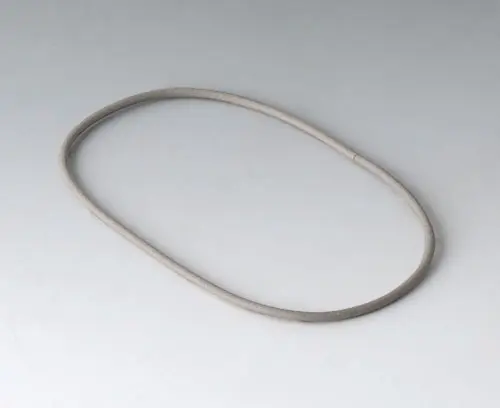

A9500030

Sealing 80 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Zamknij

A9500030

Sealing 80
produkt został dodany do twojej listy
AltText

A9502030

Sealing 100 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Zamknij

A9502030

Sealing 100
produkt został dodany do twojej listy
AltText

A9503030

Sealing 125 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Zamknij

A9503030

Sealing 125
produkt został dodany do twojej listy
AltText

A9504030

Sealing 150 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Zamknij

A9504030

Sealing 150
produkt został dodany do twojej listy

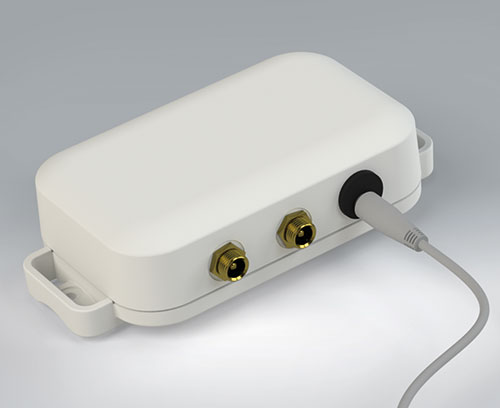

Opcje dostosowywania dla Easytec

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
