C3207107
EASYTEC 125

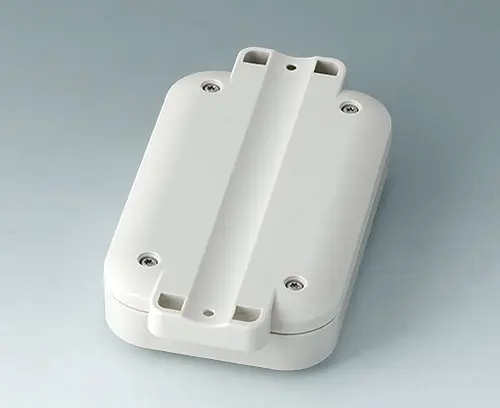

2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part flat
SupplyTop and bottom part, assembly kit
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for C3207107
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
Accessory "protection"
A9503030
Sealing 125
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9503030
Sealing 125produkt został dodany do twojej listy
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)produkt został dodany do twojej listy
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)produkt został dodany do twojej listy
Opcje dostosowywania dla C3207107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Dane zakupowe
Materiał
Protection class
Necessary accessories: sealing,
Kolor
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Długość
147 mm
Szerokość
78 mm
Wysokość
30 mm
PCB length, base
113 mm
PCB width, base
68 mm
PCB length, top
113 mm
PCB width, top
68 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 215 KB
- AutoCAD DWG-File 262 KB
- AutoCAD DXF-File 1 445 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 444 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027966.x_t 3 453 KB
- 00027966.step 8 407 KB
- 00027966.sat 10 815 KB
Weight/1 part
94 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
