B4030317
DATEC-TERMINAL L, Vers. III
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

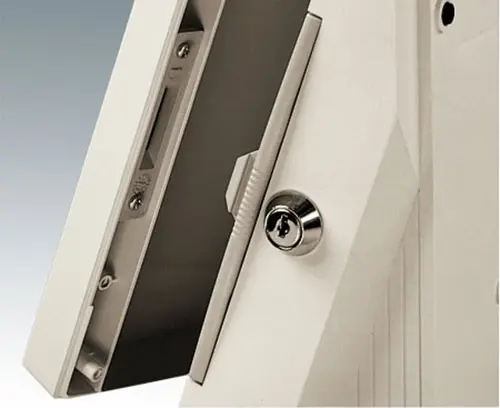

VersionMachined for assembly of hinge, quick-action lock and keylock
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4030317
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory to complete
B4016671
Cover strip M / L
For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.
Supply 1 cover strip
B4016671
Cover strip M / LProdotto aggiunto alla lista
transparent
B4016677
Cover strip M / L
For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.
Supply 1 cover strip
B4016677
Cover strip M / LProdotto aggiunto alla lista
off-white RAL 9002
B4030417
Lid L closed, flat
Lid L closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.
Supply 1 lid, 2 screws M3
B4030417
Lid L closed, flatProdotto aggiunto alla lista
off-white RAL 9002
268x62x24mm
B4030617
Cover L, flat
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4030617
Cover L, flatProdotto aggiunto alla lista
off-white RAL 9002
302x220x29mm
B4030621
Cover L, flat
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4030621
Cover L, flatProdotto aggiunto alla lista
transparent
302x220x29mm
B4030631
Cover L, convex
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4030631
Cover L, convexProdotto aggiunto alla lista
transparent
302x220x29mm
B4030637
Cover L, convex
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4030637
Cover L, convexProdotto aggiunto alla lista
off-white RAL 9002
302x220x29mm
B4030657
Cover L, high
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4030657
Cover L, highProdotto aggiunto alla lista
off-white RAL 9002
302x220x50mm
B4130116
Front panel LH
Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.
Supply 1 front panel, 4 screws diameter 3 mm
B4130116
Front panel LHProdotto aggiunto alla lista
matt anodised
262x209x2mm
Accessory "wall/holder"
B4130147
Wall suspension element L
Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.
Supply 1 wall suspension element, 2 screws M3
B4130147
Wall suspension element LProdotto aggiunto alla lista
galvanized
214x260x12mm
Customising options for B4030317
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Necessary accessories: cover / cover convex and closed lid
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
302 mm
Profindità
272 mm
Altezza
101 mm
PCB length, base
255 mm
PCB width, base
258 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
- Hinge/quick-action lock/keylock, DATEC-TERMINAL M/L vers. II + III, assembly instruction (English) 2.644 KB
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 220 KB
- AutoCAD DWG-File 386 KB
- AutoCAD DXF-File 1.475 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 4.742 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008361.x_t 4.446 KB
- 00008361.STEP 9.344 KB
- 00008361.SAT 14.798 KB
Weight/1 part
606 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4030317 e non dimenticare di chiedere la quotazione!
