Accessori per contenitori
B4030621
Cover L, flat
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply1 cover, assembly kit
Create la vostra scheda dati PDF per B4030621
Selezionate le informazioni prodotto per la vostra scheda dati.
B4030117
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4030117
DATEC-TERMINAL L, Vers. Ioff-white RAL 9002
302x272x101mm

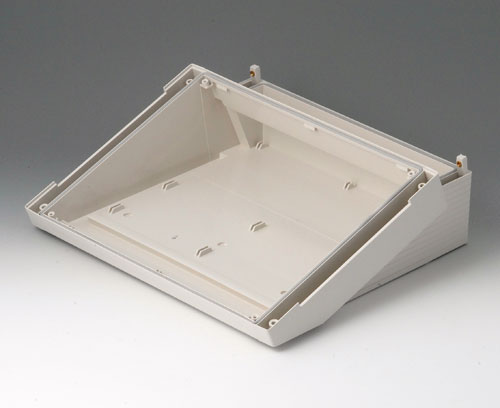

B4030217
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4030217
DATEC-TERMINAL L, Vers. IIoff-white RAL 9002
302x272x101mm

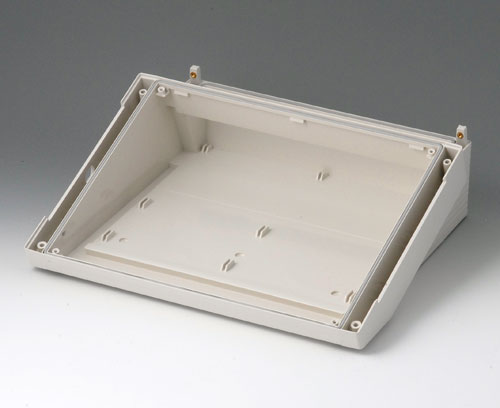

B4030317
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4030317
DATEC-TERMINAL L, Vers. IIIoff-white RAL 9002
302x272x101mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 189 KB
- AutoCAD DWG-File 286 KB
- AutoCAD DXF-File 1.029 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 11.933 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011675.x_t 848 KB
- 00011675.STEP 2.270 KB
- 00011675.SAT 4.495 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4030621 e non dimenticare di chiedere la quotazione!
