Accessori per contenitori
B4130116

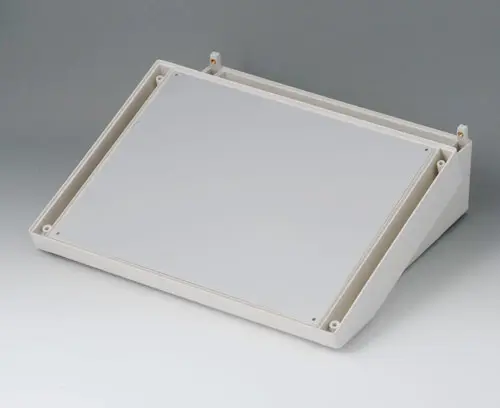

Front panel LH
Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.
Supply1 front panel, 4 screws diameter 3 mm
Create la vostra scheda dati PDF per B4130116
Selezionate le informazioni prodotto per la vostra scheda dati.
B4030117
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4030117
DATEC-TERMINAL L, Vers. Ioff-white RAL 9002
302x272x101mm
B4030217
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4030217
DATEC-TERMINAL L, Vers. IIoff-white RAL 9002
302x272x101mm
B4030317
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4030317
DATEC-TERMINAL L, Vers. IIIoff-white RAL 9002
302x272x101mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 142 KB
- AutoCAD DWG-File 134 KB
- AutoCAD DXF-File 434 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 11.779 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012843.x_t 99 KB
- 00012843.STEP 274 KB
- 00012843.SAT 958 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4130116 e non dimenticare di chiedere la quotazione!
