Solid-Box
Elegante contenitore per applicazioni industriali in IP66/67
Robusto, ermetico e allo stesso tempo raffinato! La nuova serie di contenitori SOLID-BOX presenta tutte le caratteristiche che moderni involucri per componenti elettrici ed elettronici in ambiente industriale o in esterni protetti devono offrire.

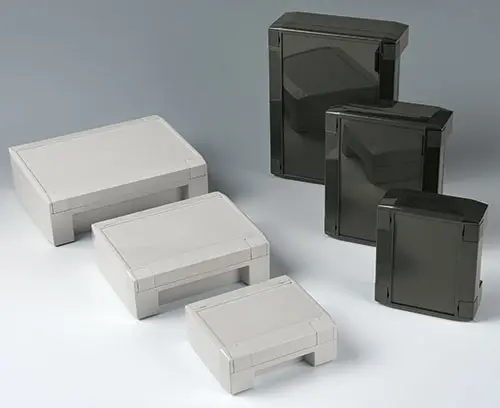

- 3 misure del contenitore in 2 colori standard

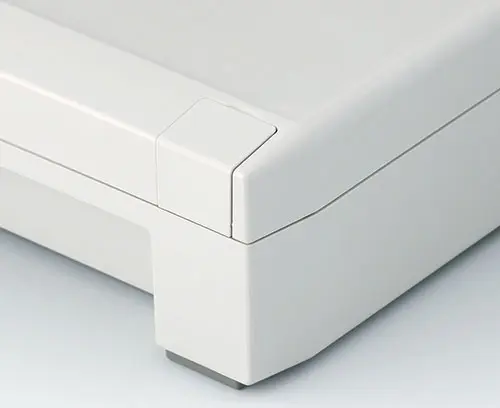

- Design convincente grazie alla superficie del contenitore levigata a specchio; inoltre placche a filo del contorno per zone nascoste dei collegamenti a vite
- Utilizzabile come contenitore da scrivania o a muro

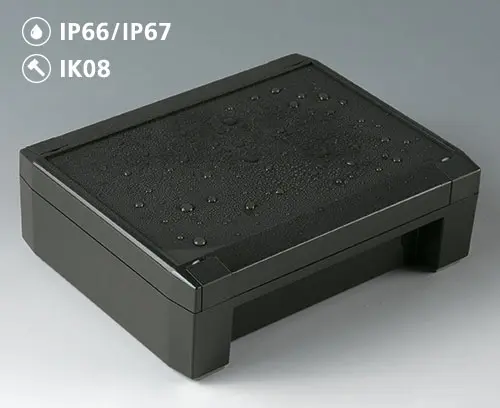

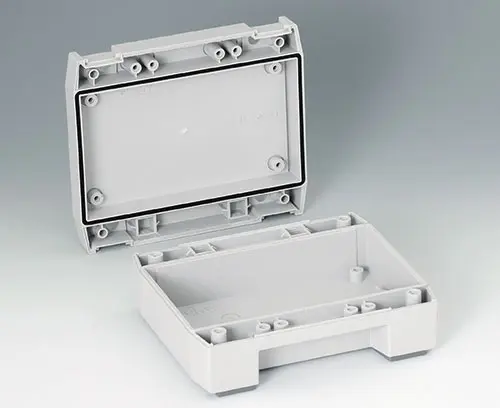

- Elevato grado di protezione IP66/67 e protezione dagli urti IK08 offrono sicurezza anche in ambienti difficili; la guarnizione é già inserita nella parte superiore
- Ottimo materiale V0 autoestinguente a partire da 1,50 mm con elevata termostabilità (Vicat/B 120 = 110 °C), antifiamma senza cloro e bromo

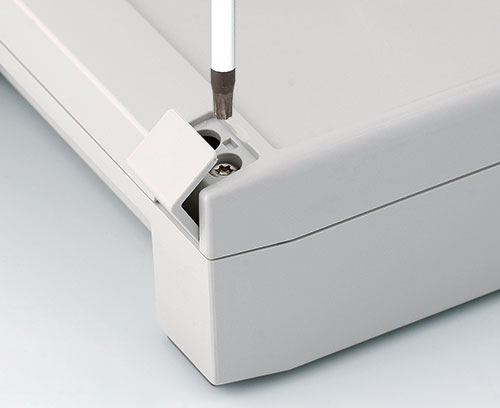

- Montaggio del contenitore con viti Torx imperdibili in acciaio inox, al di fuori del vano interno impermeabile

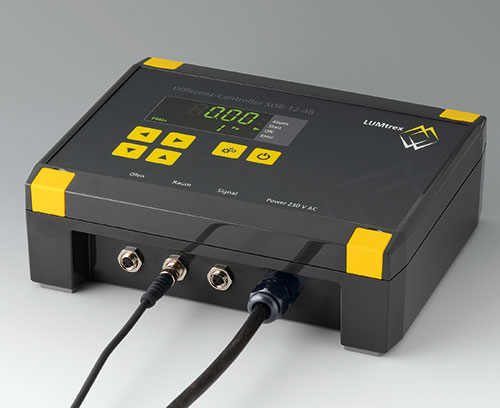

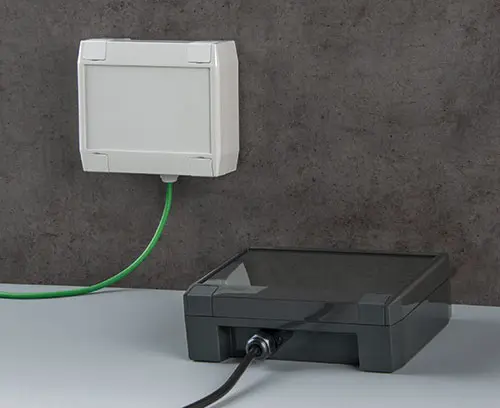

- Due superfici arretrate nella parte inferiore per il montaggio e la protezione di interfacce – per un collegamento semplice e facile

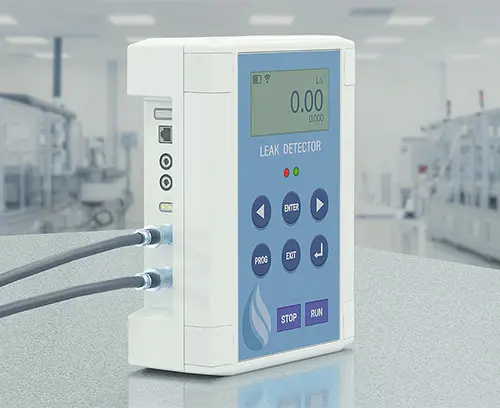

- Superficie di comando incavata a protezione di tastiere a membrana

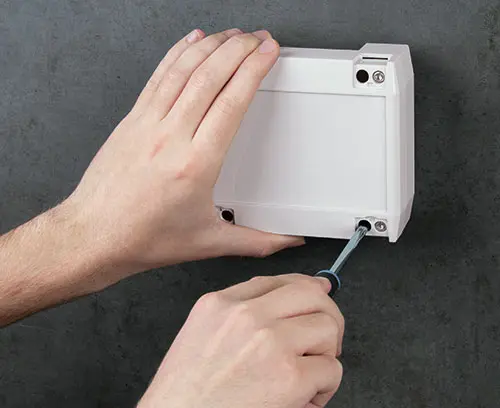

- Possibilità di montaggio a parete diretto e nascosto, al di sotto delle placche di design

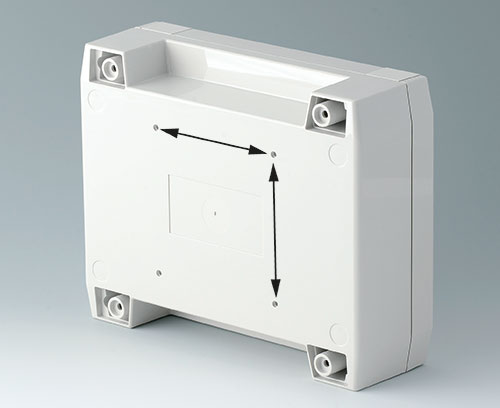

- Sedi preformate per l'impiego di supporti secondo lo standard VESA nelle misure 145 e 175

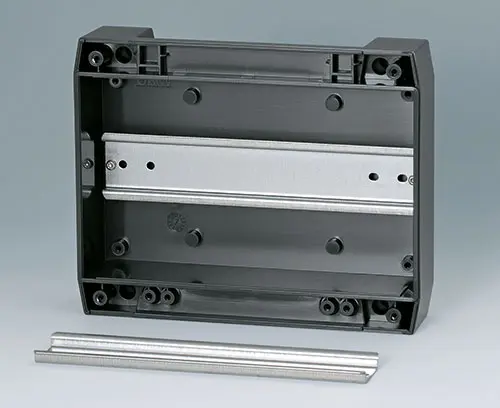

- Punti di fissaggio integrati per schede, guide DIN e piastre di montaggio

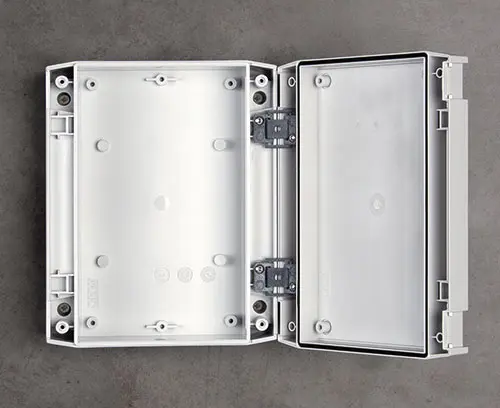

- Set di cerniere opzionale di "fissaggio del coperchio" come accessorio, comodo nel caso di interventi di assistenza e di manutenzione

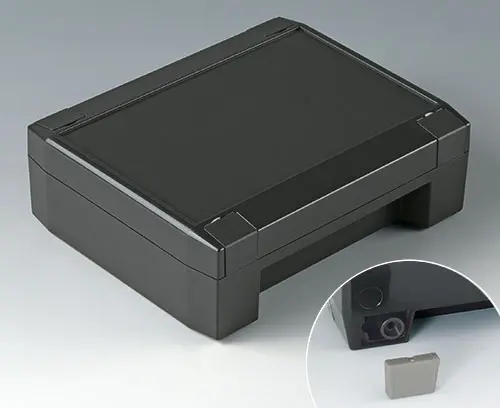

- Piedini del contenitore (disponibili come accessori) garantiscono sicurezza e stabilità per le applicazioni da scrivania

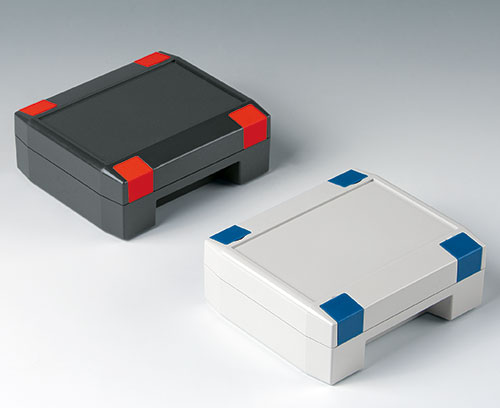

Materiale speciale
Su richiesta possiamo realizzare molti dei contenitori anche in colori speciali. Possiamo colorare per estrusione materiale grezzo nella tonalità richiesta con la massima qualità di riproduzione. Per il nuovo contenitore SOLID-BOX sono possibili ad esempio la produzione con stampaggio a iniezione delle placche di design in un colore diverso per la codifica della funzione oppure della serie di dispositivi come anche nei colori aziendali (quantità minima e fattibilità su richiesta).
COMMENTI DEL DESIGNER
“Un contenitore SOLID-BOX mantiene quello che il suo nome promette. In tale contenitore, ermetico e particolarmente resistente agli urti, possono essere inseriti i vostri componenti in modo stabile e sicuro anche negli ambienti più difficili, senza collegamenti a vite o fissaggi visibili. E tuttavia la forma del contenitore conferisce alla struttura robusta una leggerezza elegante. Le sfaccettature leggermente inclinate che corrono sui lati lunghi e il gioco di luci ed ombre sottolineano la qualità del prodotto.”
Martin Nußberger, Polyform Industrie Design
Learn more!
Read our blog posts on solid-box View blog posts >>
Application Fields

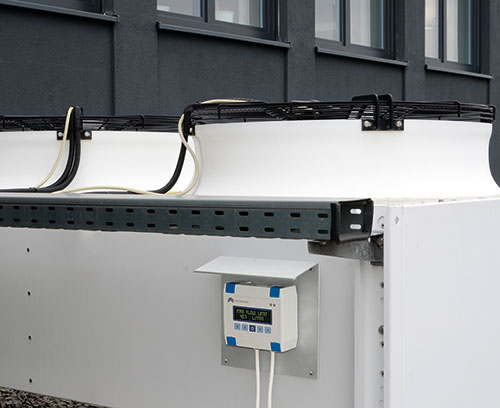

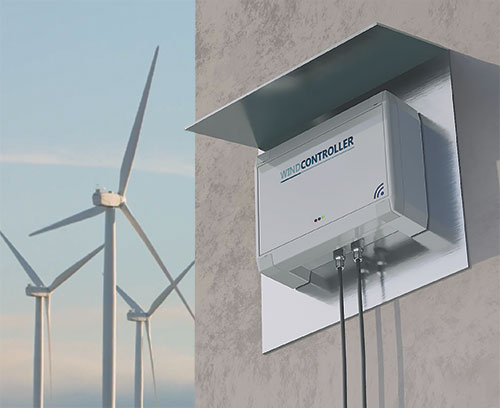

Predestinato per applicazioni di altro livello in campo elettrico ed elettronico in interni e in esterni protetti per esempio ingegneria meccanica e impiantistica, tecnica di riscaldamento, condizionamento e ventilazione, IoT/IIoT, smart factory / industria 4.0, gateway, data logger, tecnologia dell’informazione e della comunicazione (TIC), installazioni elettriche, metrologia e tecnica di regolazione, agricoltura e zootecnica, sensori e tecnica di sicurezza.
C8011131

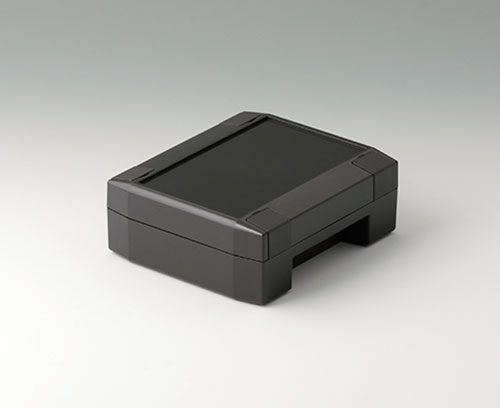

SOLID-BOX 115
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8011131
SOLID-BOX 115Prodotto aggiunto alla lista
anthracite grey RAL 7016
135x115x50mm
, ,
C8011132

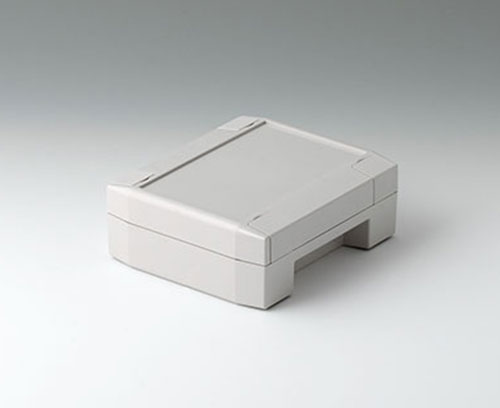

SOLID-BOX 115
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8011132
SOLID-BOX 115Prodotto aggiunto alla lista
light grey RAL 7035
135x115x50mm
, ,
C8014181
SOLID-BOX 145
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014181
SOLID-BOX 145Prodotto aggiunto alla lista
anthracite grey RAL 7016
180x145x60mm
, ,

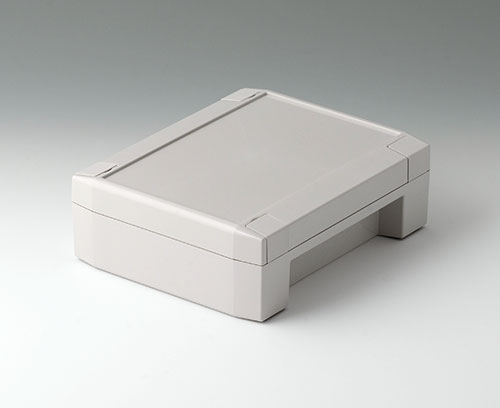

C8014182
SOLID-BOX 145
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014182
SOLID-BOX 145Prodotto aggiunto alla lista
light grey RAL 7035
180x145x60mm
, ,

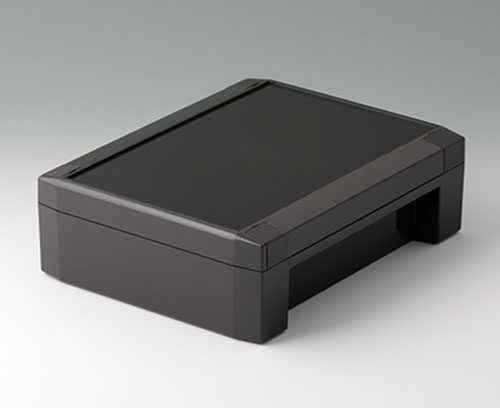

C8017221
SOLID-BOX 175
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017221
SOLID-BOX 175Prodotto aggiunto alla lista
anthracite grey RAL 7016
225x175x70mm
, ,

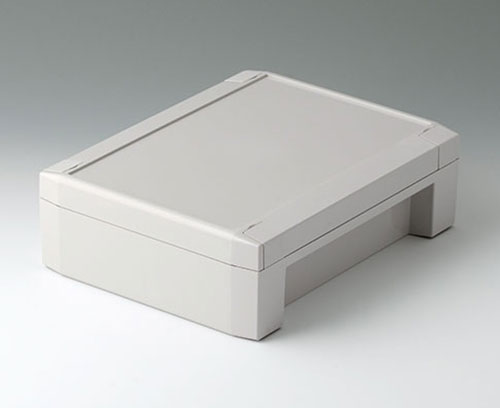

C8017222
SOLID-BOX 175
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017222
SOLID-BOX 175Prodotto aggiunto alla lista
light grey RAL 7035
225x175x70mm
, ,
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Prodotto aggiunto alla lista
A9325018

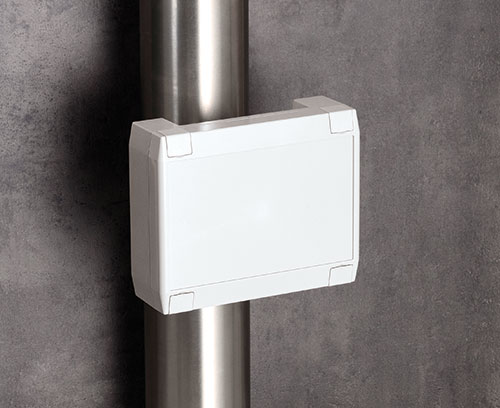

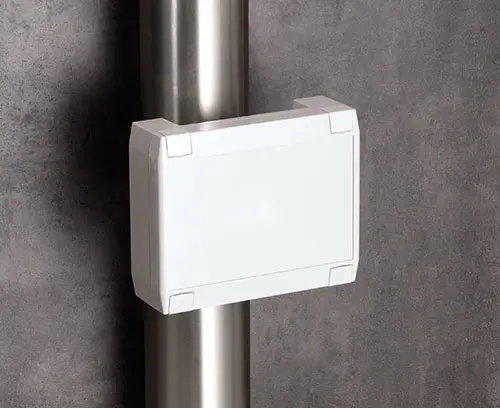

Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketProdotto aggiunto alla lista
anthracite grey RAL 7016
100x100x20mm
C2299031
Securing hinge for the cover
For securing the cover (top part) when opening the enclosure.
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Supply 2 securing hinges
C2299031
Securing hinge for the coverProdotto aggiunto alla lista
natural-coloured
C8100188

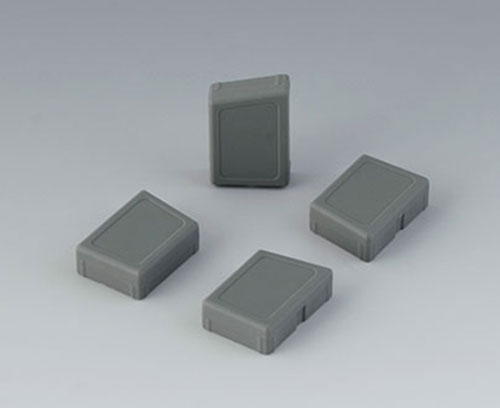

Set of enclosure feet
Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.
Supply 4 enclosure feet
C8100188
Set of enclosure feetProdotto aggiunto alla lista
volcano
C8100360

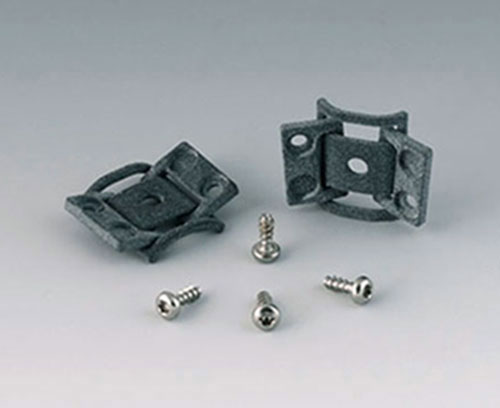

Internal hinge set
Additively manufactured hinge for holding the top part when opening the enclosure.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Supply 2 hinges, 4 screws
C8100360
Internal hinge setProdotto aggiunto alla lista
Opzioni prodotto per Solid-Box
Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
