SOLID-BOX 115

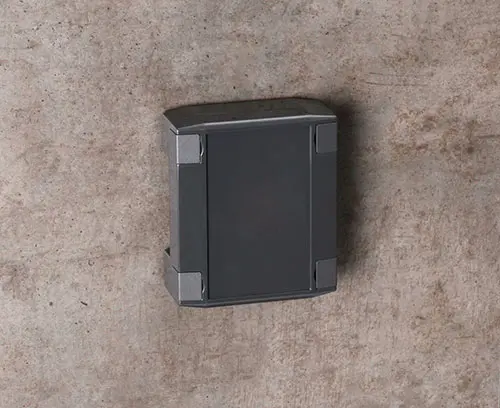

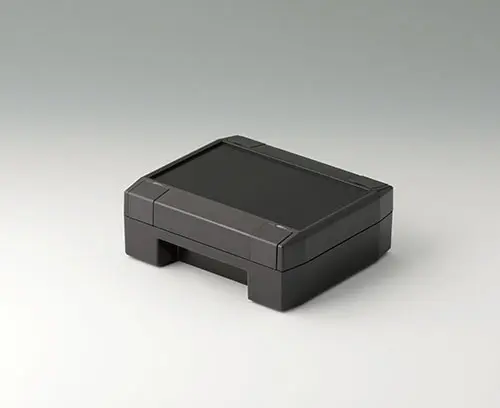

Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
1 bottom and 1 top part with seal, 4 design trims, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per C8011131
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "wall/holder"
C2299031
Securing hinge for the cover
For securing the cover (top part) when opening the enclosure.
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Supply 2 securing hinges
C2299031
Securing hinge for the coverProdotto aggiunto alla lista
natural-coloured
C8100360
Internal hinge set
Additively manufactured hinge for holding the top part when opening the enclosure.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Supply 2 hinges, 4 screws
C8100360
Internal hinge setProdotto aggiunto alla lista
Accessory "screws"
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Prodotto aggiunto alla lista
Accessory
C8100188
Set of enclosure feet
Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.
Supply 4 enclosure feet
C8100188
Set of enclosure feetProdotto aggiunto alla lista
volcano
Customising options for C8011131
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Esempi di applicazione
- Purchasing Data
Materiale
Protection class
,
,
Colore
anthracite grey RAL 7016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
135 mm
Larghezza
115 mm
Altezza
50 mm
PCB length, base
125 mm
PCB width, base
72 mm
PCB length, top
125 mm
PCB width, top
72 mm
Keypad length
118,8 mm
Keypad width
73 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Group)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 519 KB
- AutoCAD DWG-File 1.582 KB
- AutoCAD DXF-File 6.259 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 3.547 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028749.x_t 10.665 KB
- 00028749.step 25.174 KB
- 00028749.sat 32.732 KB
Weight/1 part
255 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
