Accessori per contenitori
Fissaggio, supporto da parete

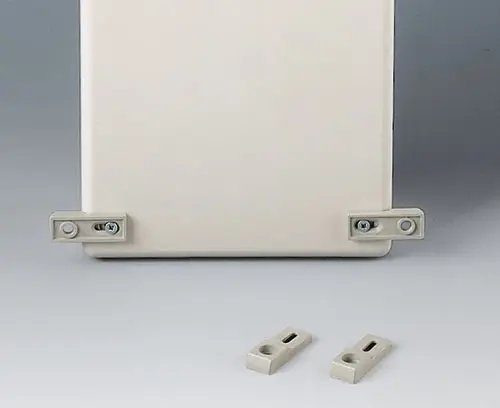

Set universali di supporto da parete e linguette per fissaggio esterno alla parete di contenitori in plastica di piccole dimensioni.
A9204108
Wall mounting brackets
Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.
Supply 4 wall mounting brackets
A9204108
Wall mounting bracketsProdotto aggiunto alla lista
pebble grey RAL 7032

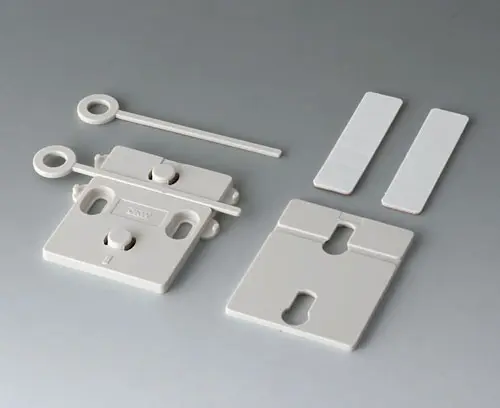

A9305017
Wall suspension elements
Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins
A9305017
Wall suspension elementsProdotto aggiunto alla lista
off-white RAL 9002

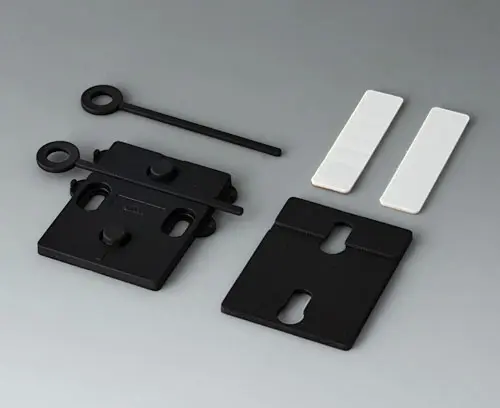

A9305019
Wall suspension elements
Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins
A9305019
Wall suspension elementsProdotto aggiunto alla lista
black RAL 9005
A9305147

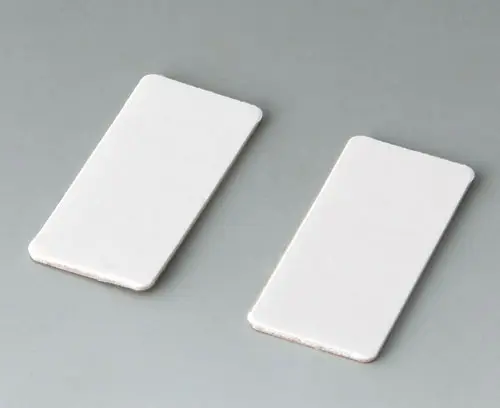

Adhesive foil holder
For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.
Supply 2 adhesive foils
A9305147
Adhesive foil holderProdotto aggiunto alla lista
B1350048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit
B1350048
Wall suspension elementsProdotto aggiunto alla lista
pebble grey RAL 7032
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementsProdotto aggiunto alla lista
pebble grey RAL 7032
Opzioni prodotto per Fissaggio, supporto da parete
Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
