A9305017
Wall suspension elements

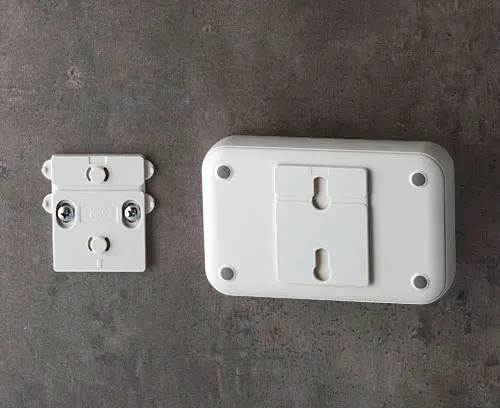

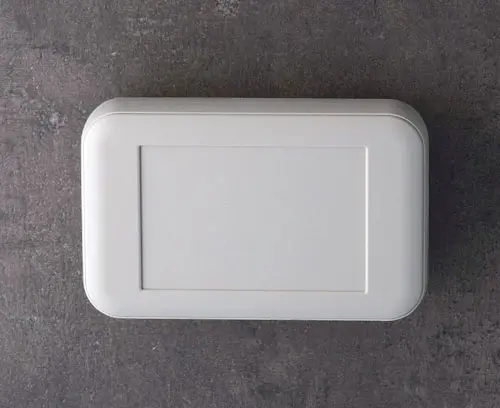

Universal wall suspension element suitable for small plastic enclosures with a flat base.

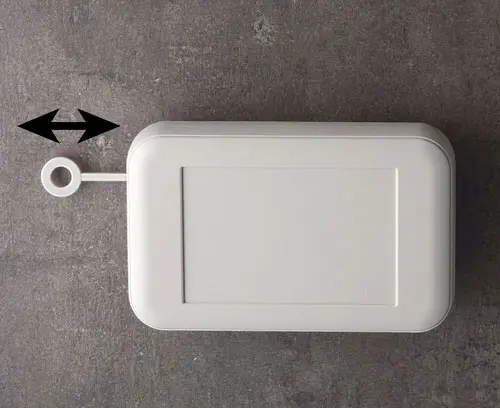

The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
1 adapter, 2 adhesive foils, 1 holder, 2 locking pins
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9305017
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory
A9305147
Adhesive foil holder
For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.
Supply 2 adhesive foils
A9305147
Adhesive foil holderProdotto aggiunto alla lista
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 194 KB
- AutoCAD DWG-File 345 KB
- AutoCAD DXF-File 1.106 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 101 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020242.x_t 451 KB
- 00020242.step 1.131 KB
- 00020242.sat 1.131 KB
Weight/1 part
32 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
