Connect
Un collegamento ottimale

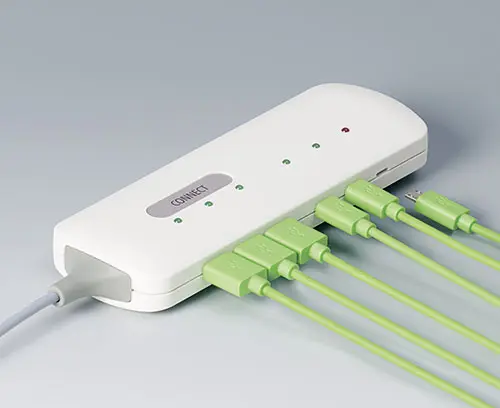

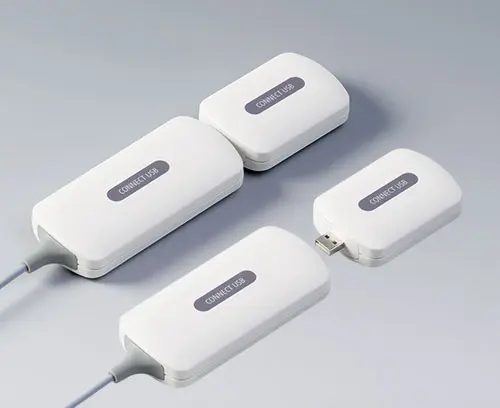

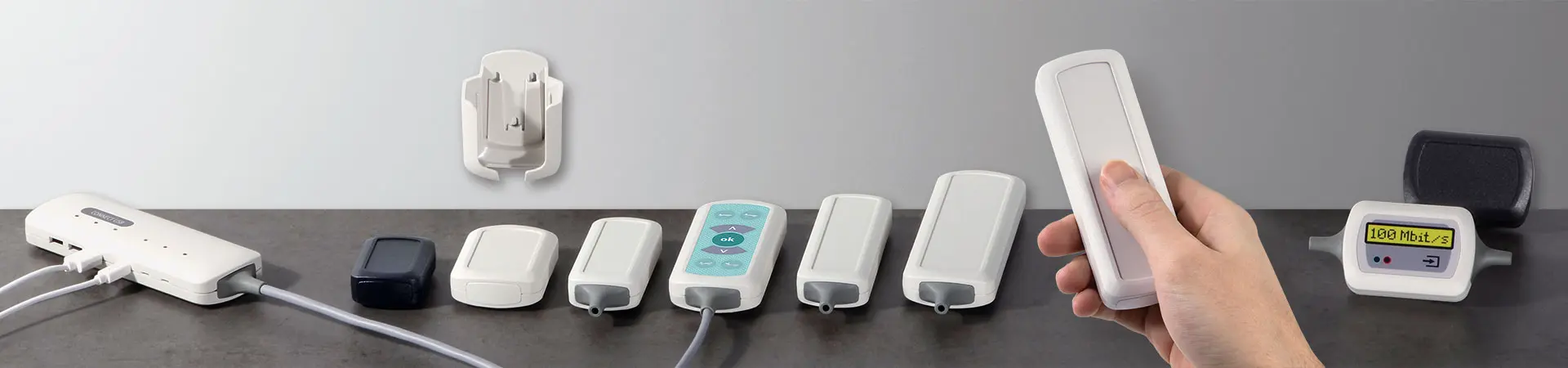

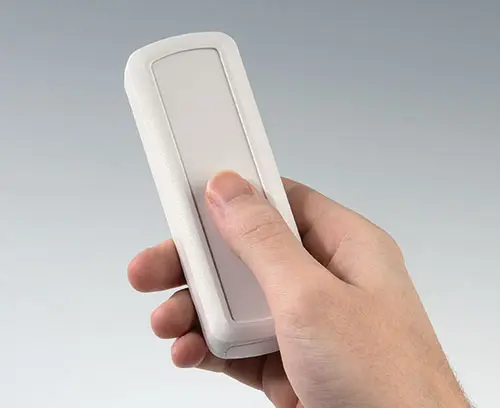

La serie di contenitori CONNECT è predestinata per applicazioni tramite cavo e applicazioni mobili a batteria.

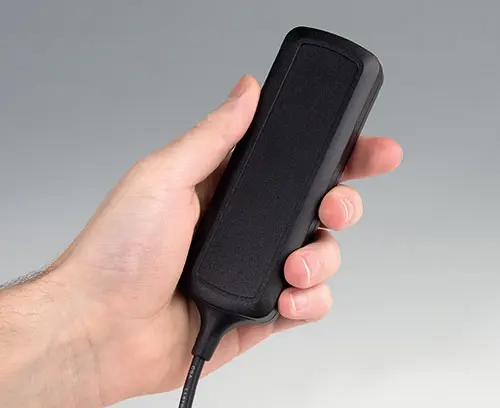

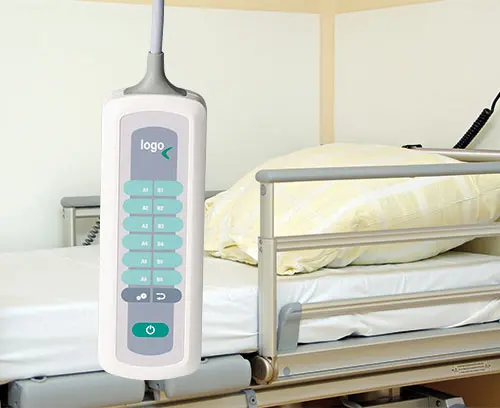

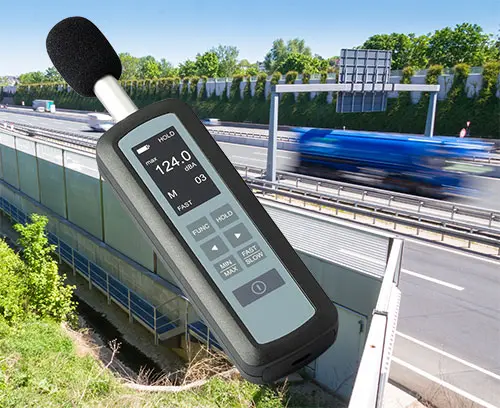

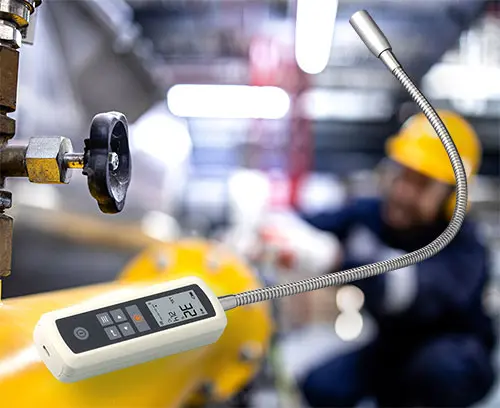

- Novità: CONNECT S con soli 42 mm di larghezza del contenitore per una presa particolarmente facile, ideale per telecomandi, apparecchi di misura, strumenti di prova o simili oppure come contenitore per interfacce senza/con collegamento di cavi
- Contenitore a due gusci, uno convesso e uno appiattito con superficie incavata
- Le due metà del contenitore si inseriscono a pressione l'una nell'altra, senza venire avvitate e con tempi di montaggio più brevi. La parte anteriore dell'apparecchio può essere scelta liberamente.
- Spazi vuoti su entrambe le estremità; per il completamento del contenitore si possono impiegare a scelta unità frontali e/o passacavi

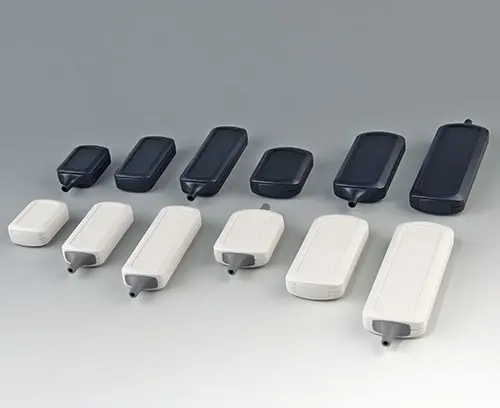

- Contenitori CONNECT S ed M, ciascuno in tre lunghezze per un adeguamento esatto all’applicazione
- Guscio del contenitore e unità frontali in materiale V-0 stabilizzato ai raggi UV
- Grado di protezione IP 40 (con unità frontali)

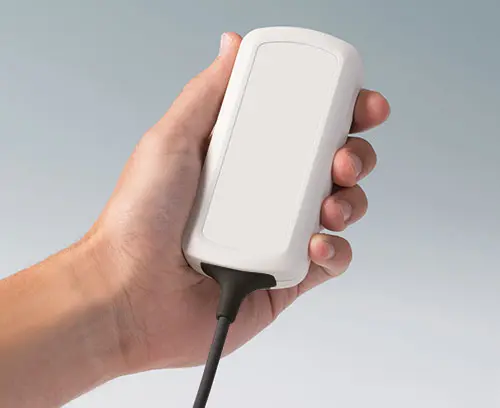

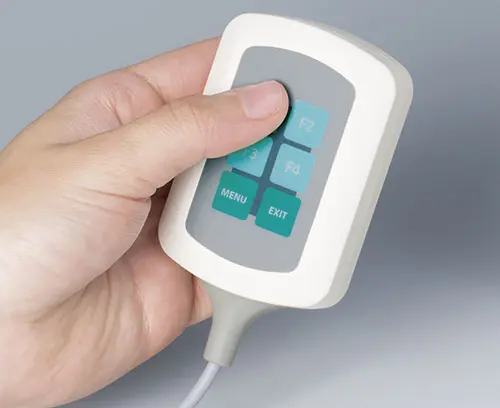

- Dispositivo antistrappo integrato nel set di passacavi

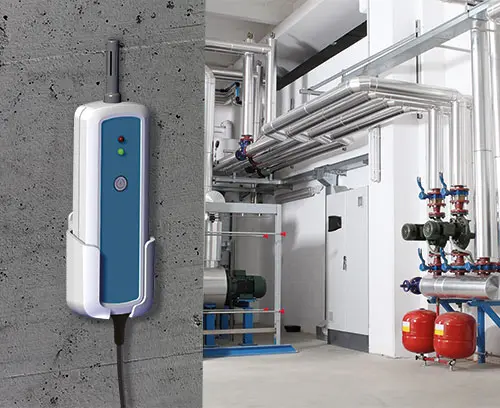

- Spazio sufficiente per il montaggio di display compatti, LED e connettori USB e sonde di misura
- Superficie incavata a protezione della tastiera a membrana, della pellicola decorativa o dell'etichetta

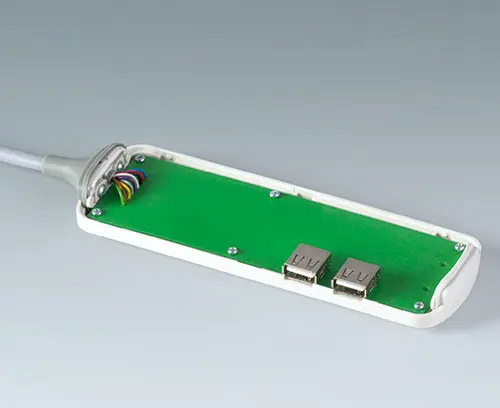

- Punti di fissaggio per schede e componenti di montaggio nella metà appiattita del contenitore

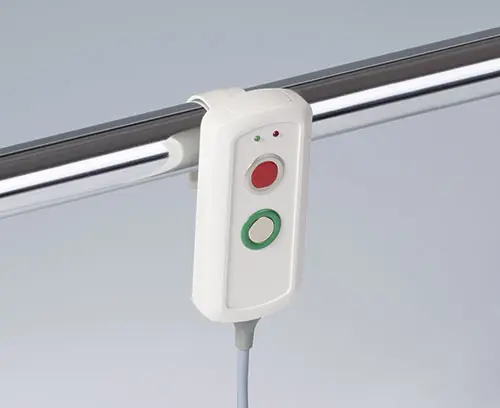

- Clip di aggancio per tubo tondo fino a ø 32 mm come accessorio (CONNECT S: lunghezza 90/120 mm, CONNECT M: lunghezza 116/156 mm)

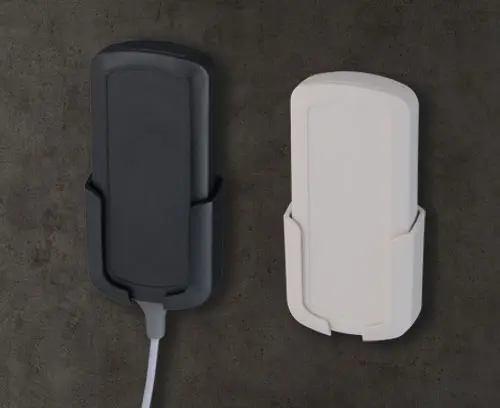

- Supporto disponibile come accessorio per un fissaggio sicuro alla parete o superfici simili
Learn more!
Read our blog posts on connect View blog posts >>
Application Fields

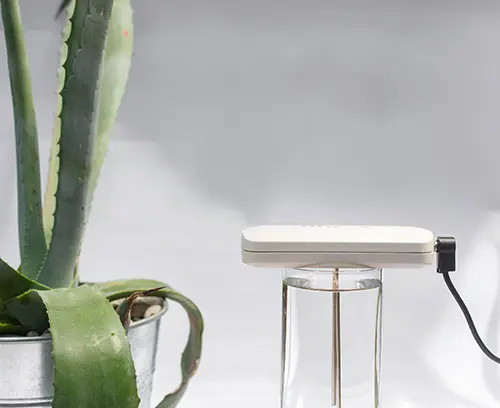

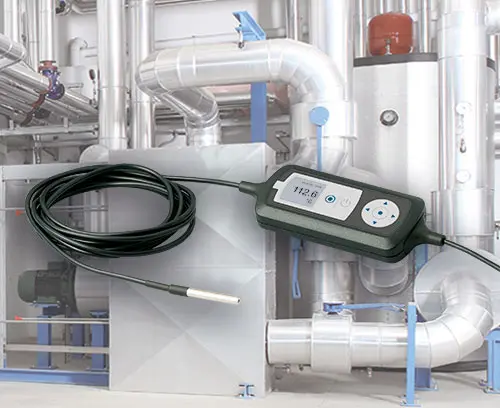

Periferiche di computer, tecnica di rete, gestione degli impianti tecnici di edifici, sistemi di sicurezza, IoT/ IIoT, tecnica medicale e applicazioni per terapia, strumenti di analisi per laboratori, metrologia, ad esempio rilevatori con sonda di misura, sistemi/strumenti di prova, data logger per tecnica ambientale, sensori, ecc.

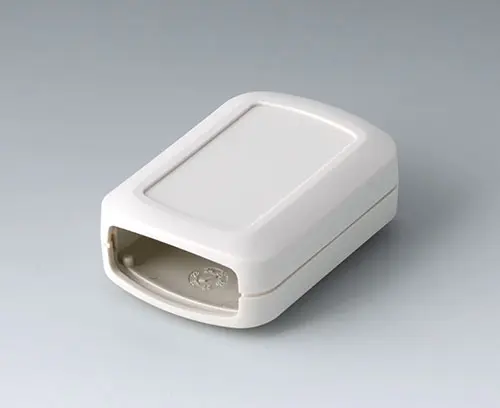

B2822107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822107
CONNECT SProdotto aggiunto alla lista
off-white RAL 9002
60x42x22mm
B2822109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822109
CONNECT SProdotto aggiunto alla lista
black RAL 9005
60x42x22mm

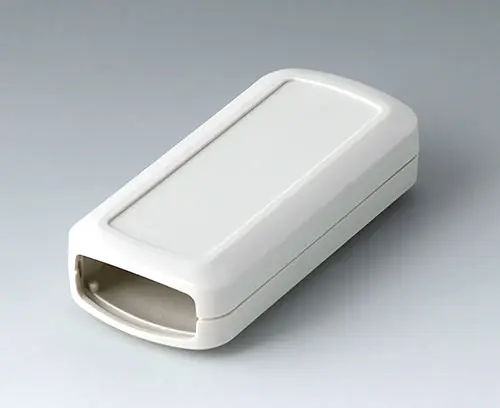

B2823107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT SProdotto aggiunto alla lista
off-white RAL 9002
90x42x22mm

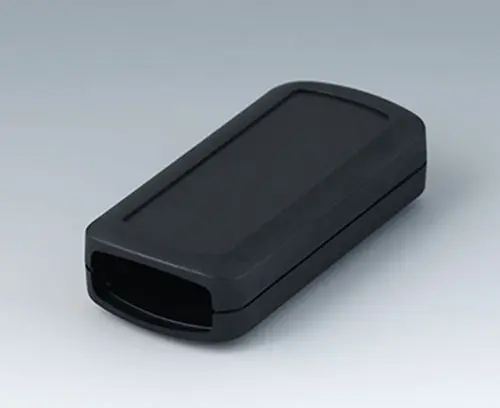

B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT SProdotto aggiunto alla lista
black RAL 9005
90x42x22mm
B2824107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT SProdotto aggiunto alla lista
off-white RAL 9002
120x42x22mm

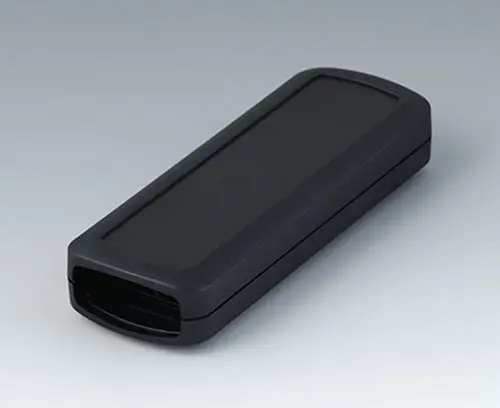

B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT SProdotto aggiunto alla lista
black RAL 9005
120x42x22mm

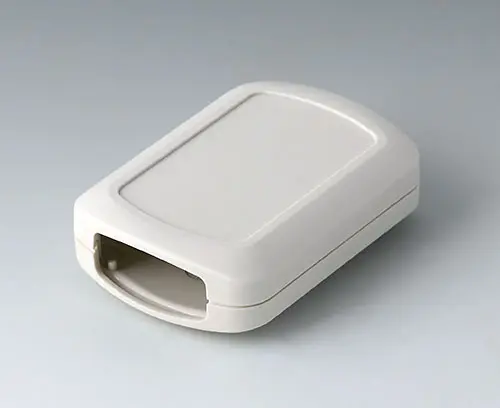

B2832107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832107
CONNECT MProdotto aggiunto alla lista
off-white RAL 9002
76x54x22mm

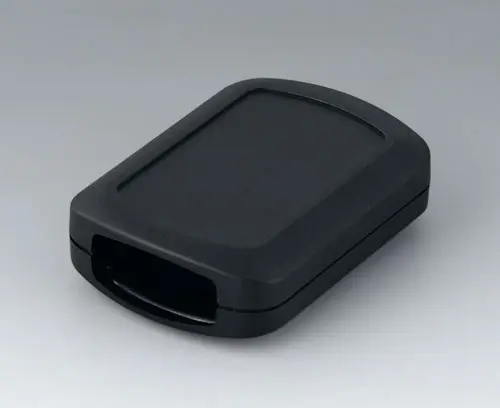

B2832109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832109
CONNECT MProdotto aggiunto alla lista
black RAL 9005
76x54x22mm

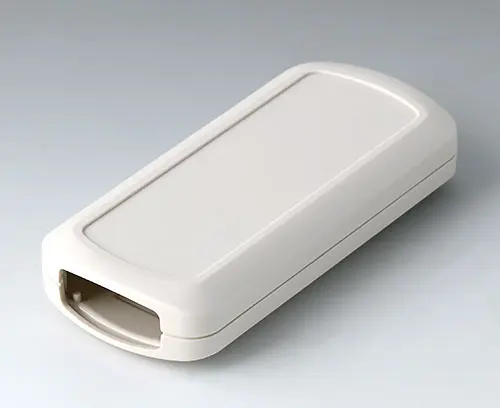

B2833107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT MProdotto aggiunto alla lista
off-white RAL 9002
116x54x22mm
B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT MProdotto aggiunto alla lista
black RAL 9005
116x54x22mm

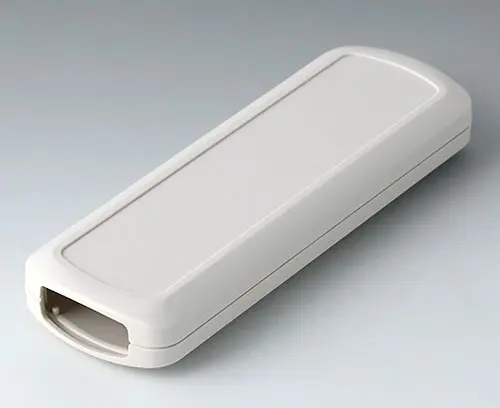

B2834107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT MProdotto aggiunto alla lista
off-white RAL 9002
156x54x22mm

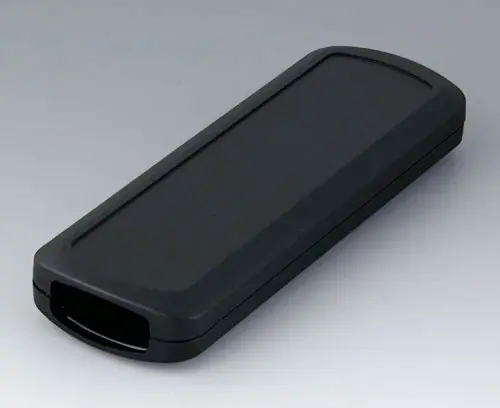

B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT MProdotto aggiunto alla lista
black RAL 9005
156x54x22mm

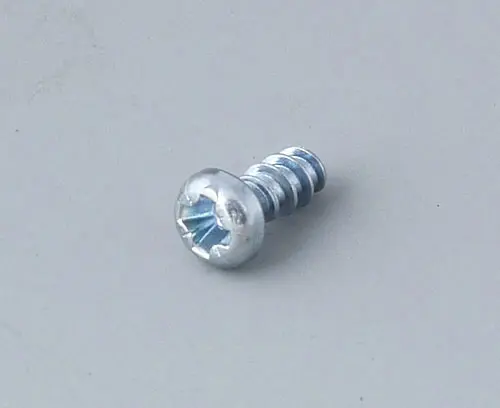

A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Prodotto aggiunto alla lista

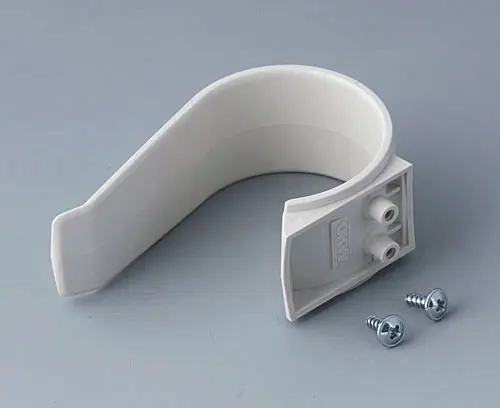

A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProdotto aggiunto alla lista
off-white RAL 9002

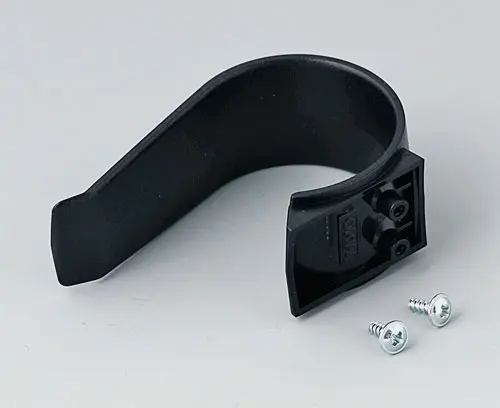

A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProdotto aggiunto alla lista
black RAL 9005

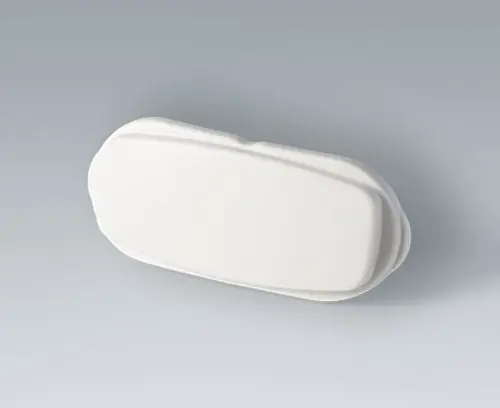

B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partProdotto aggiunto alla lista
off-white RAL 9002

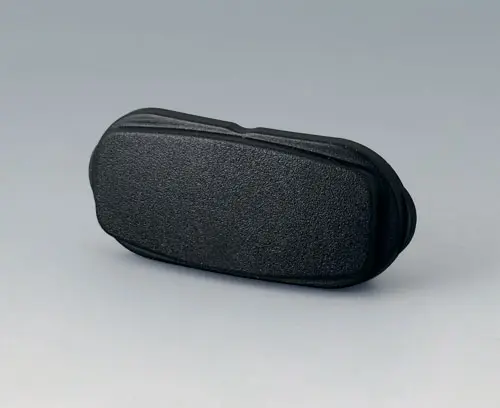

B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partProdotto aggiunto alla lista
black RAL 9005

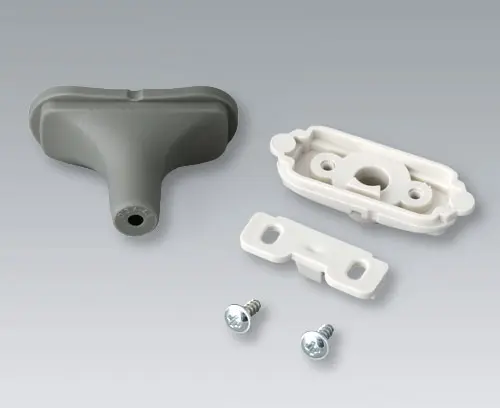

B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2Prodotto aggiunto alla lista
volcano

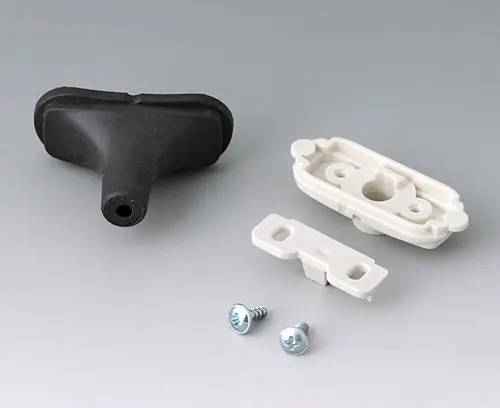

B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2Prodotto aggiunto alla lista
black RAL 9005

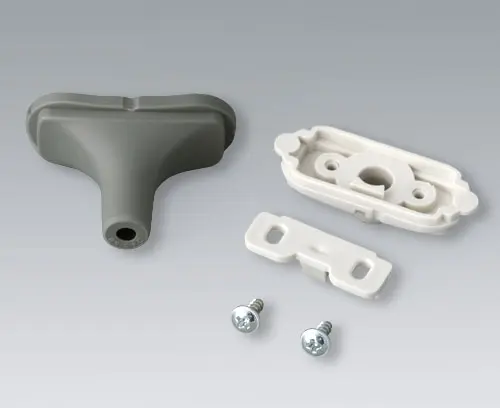

B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0Prodotto aggiunto alla lista
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0Prodotto aggiunto alla lista
black RAL 9005

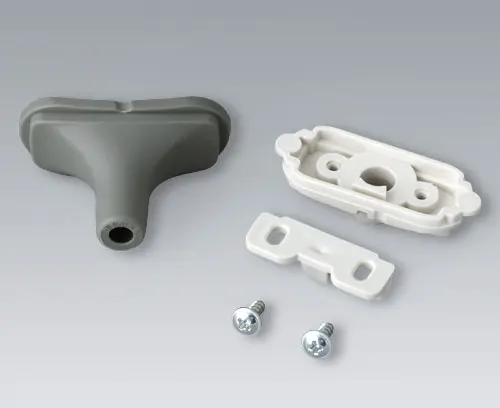

B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9Prodotto aggiunto alla lista
volcano

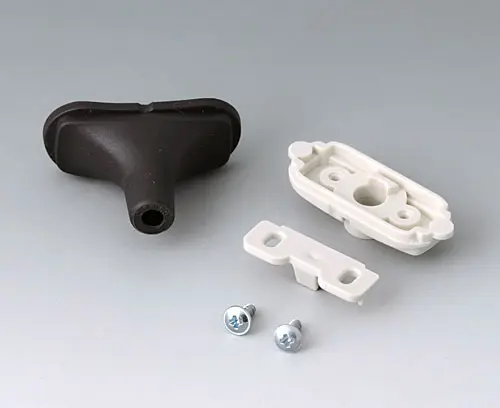

B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9Prodotto aggiunto alla lista
black RAL 9005
B2921507
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder SProdotto aggiunto alla lista
off-white RAL 9002

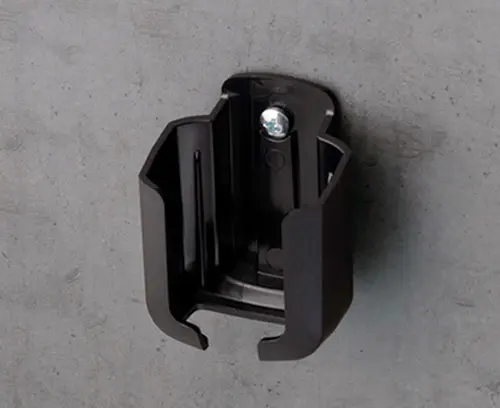

B2921509
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder SProdotto aggiunto alla lista
black RAL 9005

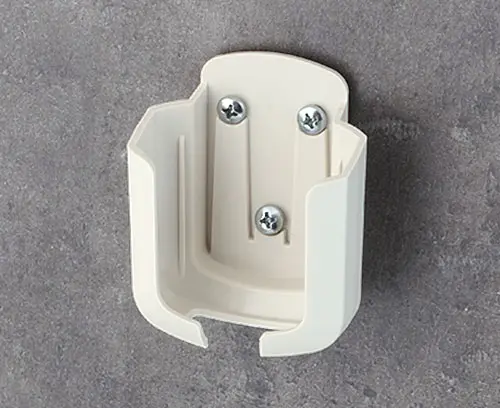

B2931507
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder MProdotto aggiunto alla lista
off-white RAL 9002

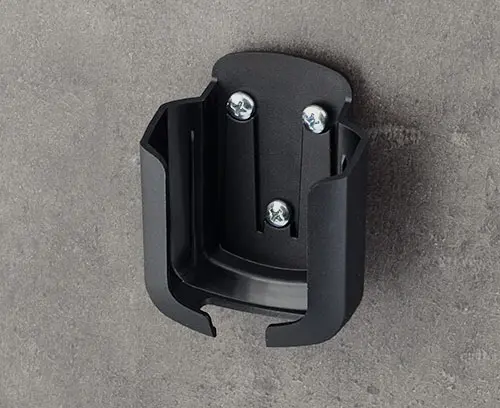

B2931509
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931509
Holder MProdotto aggiunto alla lista
black RAL 9005
Opzioni prodotto per Connect
Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
