CONNECT M

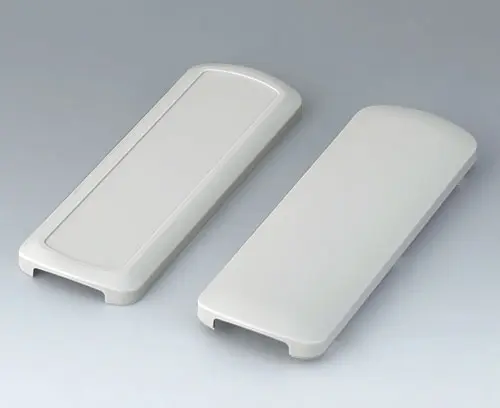

Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply1 shell convex and 1 flattened shell with recessed surface
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B2834107
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory to complete
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partProdotto aggiunto alla lista
off-white RAL 9002
B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partProdotto aggiunto alla lista
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2Prodotto aggiunto alla lista
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2Prodotto aggiunto alla lista
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0Prodotto aggiunto alla lista
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0Prodotto aggiunto alla lista
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9Prodotto aggiunto alla lista
volcano
B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9Prodotto aggiunto alla lista
black RAL 9005
Accessory "wall/holder"
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProdotto aggiunto alla lista
off-white RAL 9002
B2931507
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder MProdotto aggiunto alla lista
off-white RAL 9002
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Prodotto aggiunto alla lista
Customising options for B2834107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Esempi di applicazione
- Purchasing Data
Lunghezza
156 mm
Larghezza
54 mm
Altezza
22 mm
PCB length, base
138 mm
PCB width, base
45 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 357 KB
- AutoCAD DWG-File 695 KB
- AutoCAD DXF-File 2.682 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 702 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00018033.x_t 4.775 KB
- 00018033.step 14.111 KB
- 00018033.sat 13.964 KB
Weight/1 part
68 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B2834107 e non dimenticare di chiedere la quotazione!
