Accesorios para cajas
B1340029

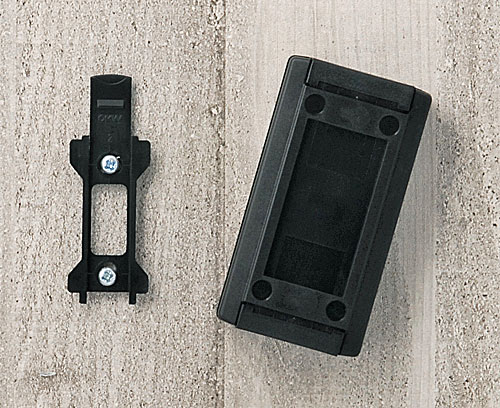

Wall suspension element for Toptec 102
Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply1 wall suspension element
Plano 2D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B1340029
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B1040369
TOPTEC 102, Vers. I
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.
Version without ventilations slots.
Supply 1 case-top and base, 2 end panels
B1040369
TOPTEC 102, Vers. IProducto añadido a su lista
black RAL 9005
102x54x30mm
B1040469

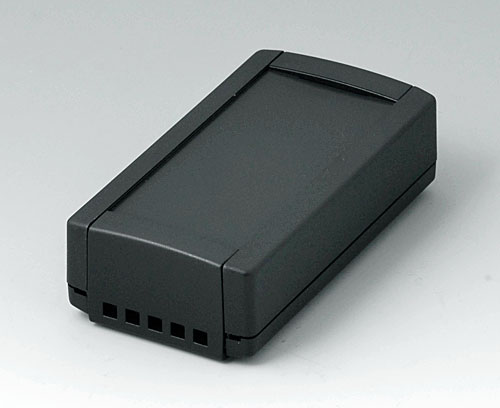

TOPTEC 102, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.
Version with ventilations slots.
Supply 1 case-top and base, 2 end panels
B1040469
TOPTEC 102, Vers. IIProducto añadido a su lista
black RAL 9005
102x54x30mm
Customising options for B1340029
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 233 KB
- AutoCAD DWG-File 622 KB
- AutoCAD DXF-File 2.142 KB
Weight/1 part
5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B1340029 y no olvide solicitar presupuesto.
