ER129059

SYNERGY R120

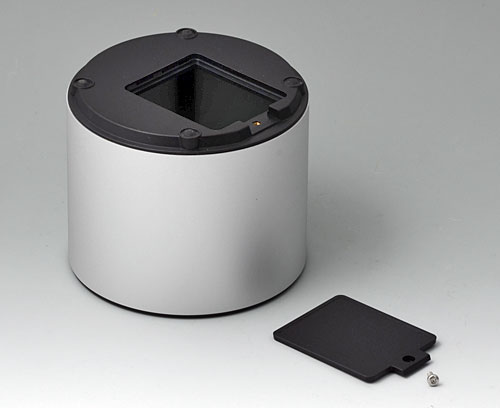

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply

Top part, bottom part, lid, aluminium profile, assembly kit

  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "battery"

AltText

A9193033

Polarity reversal protection device, positive terminal AA For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Cerrar

A9193033

Polarity reversal protection device, positive terminal AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Cerrar

A9193034

Polarity reversal protection device, positive terminal AAA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9193035

Battery clip, AA For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Cerrar

A9193035

Battery clip, AA
Producto añadido a su lista
Steel
nickel-plated
AltText

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Cerrar

A9193036

Battery clip, AAA
Producto añadido a su lista
Steel
nickel-plated
AltText

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Cerrar

A9193037

Button cell holder, Ø 20 mm
Producto añadido a su lista
AltText

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Cerrar

A9193038

Button cell holder, Ø 23 mm
Producto añadido a su lista
AltText

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Cerrar

A9193039

Button cell holder, Ø 12 mm
Producto añadido a su lista
AltText

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Cerrar

A9193040

Button cell holder, Ø 16 mm
Producto añadido a su lista
AltText

EZ040609

Battery compartment, 3 x AA For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

Cerrar

EZ040609

Battery compartment, 3 x AA
Producto añadido a su lista
ASA+PC (UL 94 V-0)
black RAL 9005

Accessory "wall/holder"

AltText

EZ030109

Wall suspension element Optional wall mounting with only one screw.

Supply 1 holder and cover plate, 2 anti-slide feet

Cerrar

EZ030109

Wall suspension element
Producto añadido a su lista
ASA+PC (UL 94 V-0)
black RAL 9005

Accessory "screws"

AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T10

Torx T10 screwdriver
Producto añadido a su lista
AltText

EZ031209

Extender kit For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.

Supply 4 extender, 4 screws (Torx 8)

Cerrar

EZ031209

Extender kit
Producto añadido a su lista
ASA+PC (UL 94 V-0)
black RAL 9005

Customising options for ER129059

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
Protection class
Color
Frame matt anodised,
Plastic parts black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diameter
⌀ 120 mm
Height
100 mm
PCB diameter, base
⌀ 107 mm
PCB diameter, top
⌀ 111 mm
Keypad diameter
⌀ 102 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
356 g
Customs tariff number
(OKW product)
76042100
Country of manufacture
Germany
