EE183059
SYNERGY E180

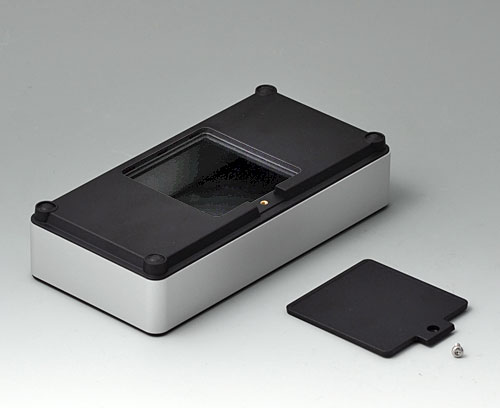

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.
SupplyTop part, bottom part, lid, aluminium profile, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para EE183059
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "battery"
A9193033
Polarity reversal protection device, positive terminal AA
For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AAProducto añadido a su lista
off-white RAL 9002
A9193034
Polarity reversal protection device, positive terminal AAA
For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAProducto añadido a su lista
off-white RAL 9002
A9193035
Battery clip, AA
For AA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193035
Battery clip, AAProducto añadido a su lista
nickel-plated
A9193036
Battery clip, AAA
For AAA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193036
Battery clip, AAAProducto añadido a su lista
nickel-plated
A9193037
Button cell holder, Ø 20 mm
For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mmProducto añadido a su lista
A9193038
Button cell holder, Ø 23 mm
For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mmProducto añadido a su lista
A9193039
Button cell holder, Ø 12 mm
For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mmProducto añadido a su lista
A9193040
Button cell holder, Ø 16 mm
For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmProducto añadido a su lista
EZ050609
Battery compartment, 4 x AA
For 4 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ050609
Battery compartment, 4 x AAProducto añadido a su lista
black RAL 9005
Accessory "wall/holder"
EZ030109
Wall suspension element
Optional wall mounting with only one screw.
Supply 1 holder and cover plate, 2 anti-slide feet
EZ030109
Wall suspension elementProducto añadido a su lista
black RAL 9005
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Producto añadido a su lista
EZ031209
Extender kit
For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.
Supply 4 extender, 4 screws (Torx 8)
EZ031209
Extender kitProducto añadido a su lista
black RAL 9005
Customising options for EE183059
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Frame
Plastic parts
Protection class
Color
Frame
matt anodised,
Plastic parts black RAL 9005
Plastic parts black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
180 mm
Anchura
90 mm
Altura
40 mm
PCB length, base
164,5 mm
PCB width, base
74,5 mm
PCB length, top
164,4 mm
PCB width, top
74,4 mm
Keypad length
162 mm
Keypad width
72 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 376 KB
- AutoCAD DWG-File 855 KB
- AutoCAD DXF-File 3.289 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.160 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015587.x_t 5.621 KB
- 00015587.step 12.732 KB
- 00015587.sat 19.834 KB
Weight/1 part
226 g
Customs tariff number
(OKW product)
(OKW product)
76042100
Country of manufacture
Other country
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para EE183059 y no olvide solicitar presupuesto.
