C8011131

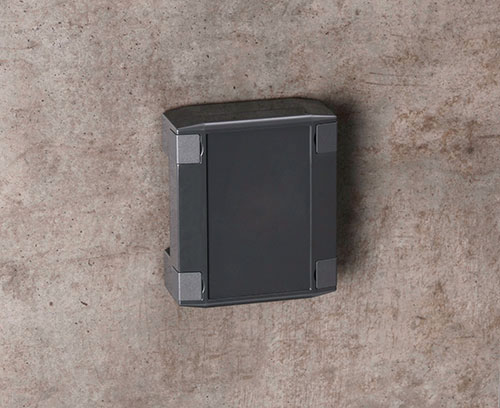

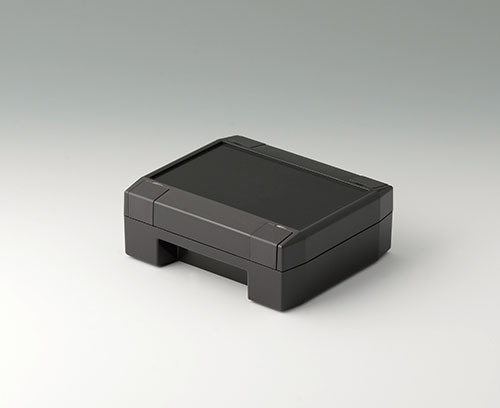

SOLID-BOX 115
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
1 bottom and 1 top part with seal, 4 design trims, assembly kit
Cree su ficha de datos en PDF para C8011131
Seleccione la información del producto para su ficha de datos.
Accessory "wall/holder"
C2299031
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Supply 2 securing hinges
C2299031
Securing hinge for the covernatural-coloured
C8100360
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Supply 2 hinges, 4 screws
C8100360
Internal hinge setAccessory "screws"
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Accessory
C8100188
Supply 4 enclosure feet
C8100188
Set of enclosure feetvolcano
Assembly Instructions (Group)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 519 KB
- AutoCAD DWG-File 1.582 KB
- AutoCAD DXF-File 6.259 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 3.547 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028749.x_t 10.665 KB
- 00028749.step 25.174 KB
- 00028749.sat 32.732 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para C8011131 y no olvide solicitar presupuesto.
