Accesorios para cajas
A9053118
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
VersionWith battery compartment for 4 x AA, accessible from the outside
SupplyTop and bottom part, battery compartment lid, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para A9053118
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "intermediate ring"
A9153011

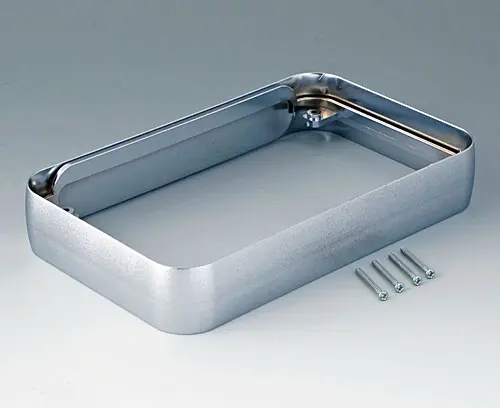

Intermediate ring XL
Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153011
Intermediate ring XLProducto añadido a su lista
matt chromed
96x154x26mm
A9153017

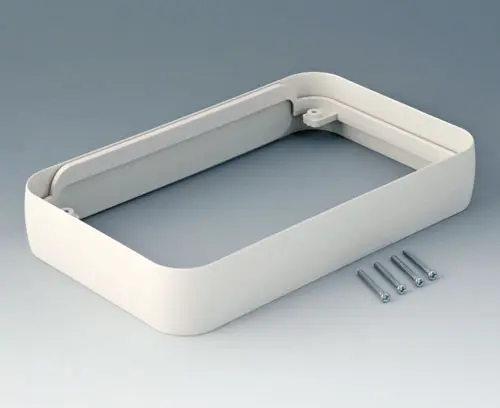

Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153017
Intermediate ring XLProducto añadido a su lista
off-white RAL 9002
96x154x26mm
A9153018

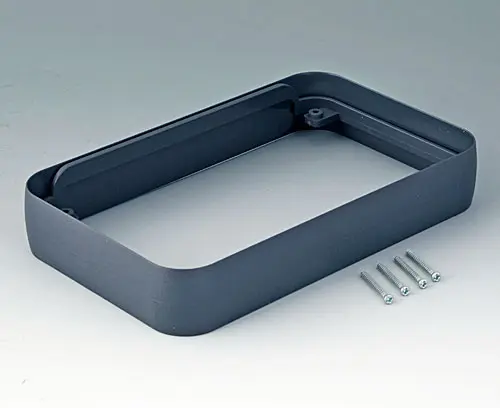

Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153018
Intermediate ring XLProducto añadido a su lista
lava
96x154x26mm
A9153118

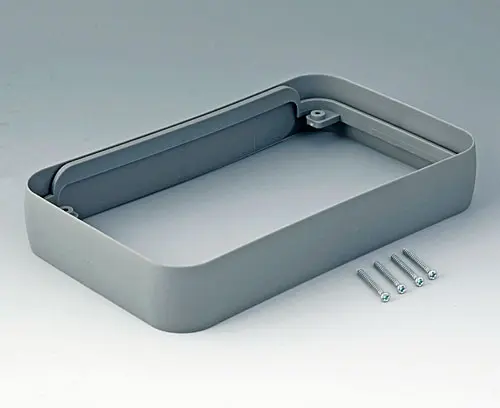

Intermediate ring XL
Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153118
Intermediate ring XLProducto añadido a su lista
volcano
96x154x26mm
A9153219

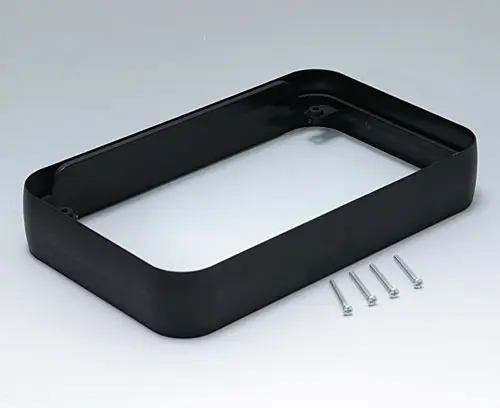

Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153219
Intermediate ring XLProducto añadido a su lista
black RAL 9005
96x154x26mm
Accessory "battery"
A9152010

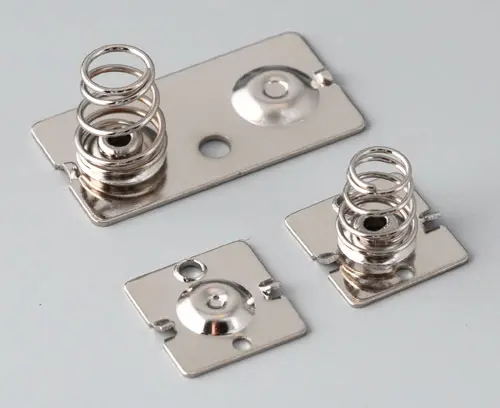

Set of battery clips, 2/4 x AA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9152010
Set of battery clips, 2/4 x AAProducto añadido a su lista
nickel-plated
Accessory "wall/holder"
A9152048

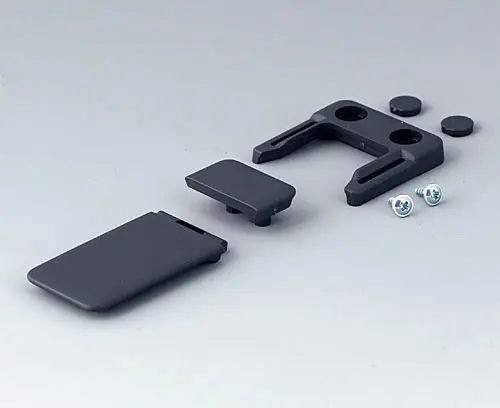

Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-ClipProducto añadido a su lista
lava
45x27mm
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProducto añadido a su lista
volcano
A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-ClipProducto añadido a su lista
lava
45x27mm
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Producto añadido a su lista
Accessory
A9152058

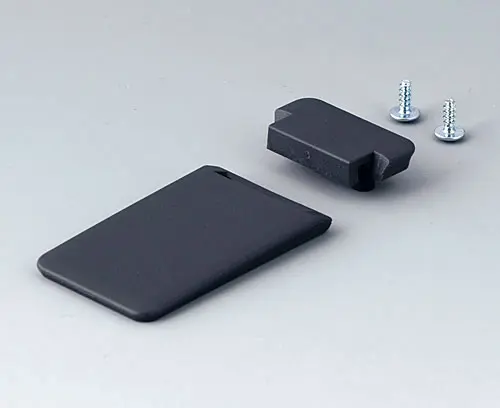

Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152058
Tilt foot barProducto añadido a su lista
lava
Customising options for A9053118
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Aplicaciones
- Purchasing Data
Material
Protection class
Color
lava
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
92 mm
Anchura
150 mm
Altura
28 mm
PCB length, base
30 mm
PCB width, base
140 mm
PCB length, top
82 mm
PCB width, top
140 mm
Keypad length
67,15 mm
Keypad width
101,05 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 598 KB
- AutoCAD DWG-File 1.249 KB
- AutoCAD DXF-File 4.758 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 2.196 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 0000927A.x_t 9.687 KB
- 0000927A.STEP 22.860 KB
- 0000927A.SAT 19.315 KB
Weight/1 part
117 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9053118 y no olvide solicitar presupuesto.
